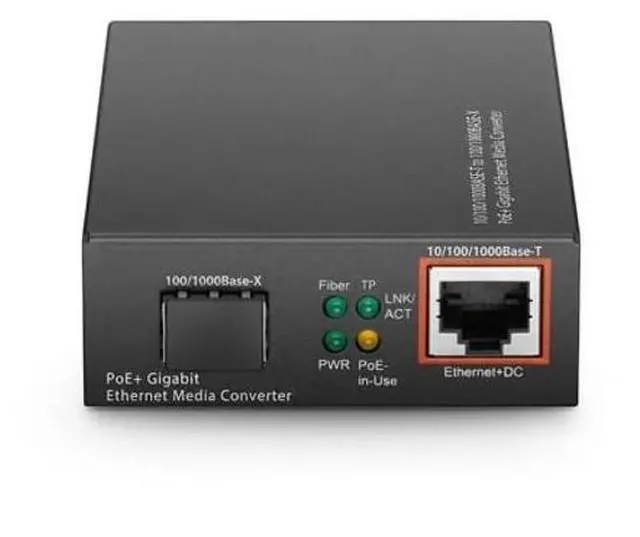

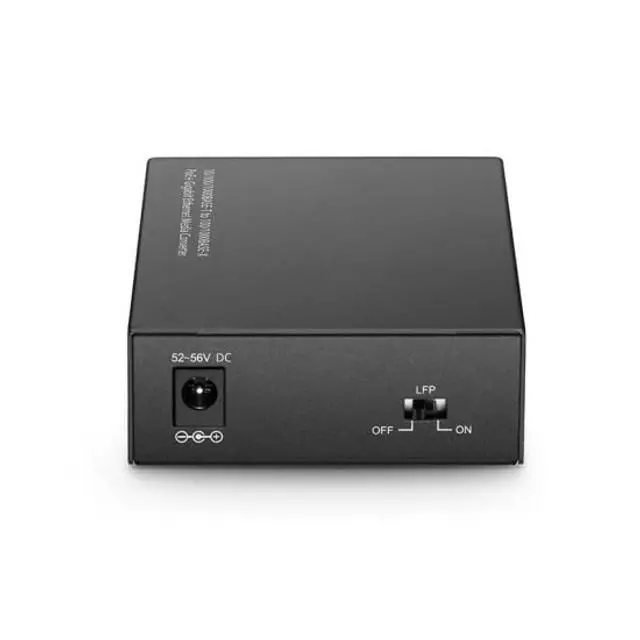

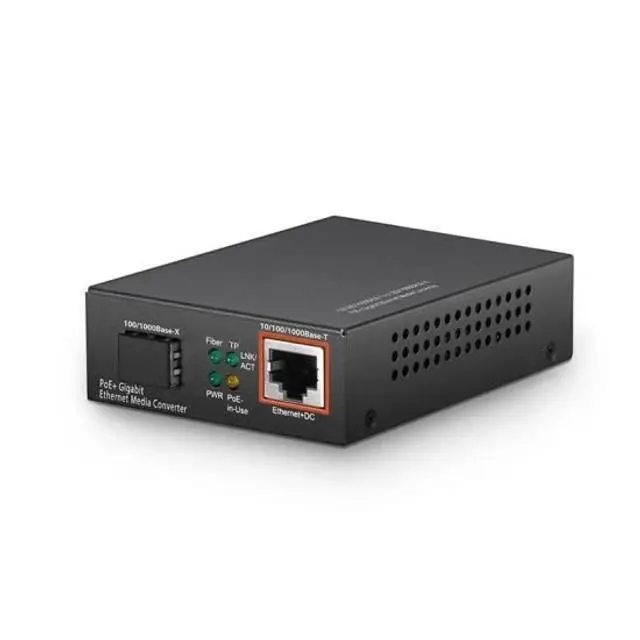

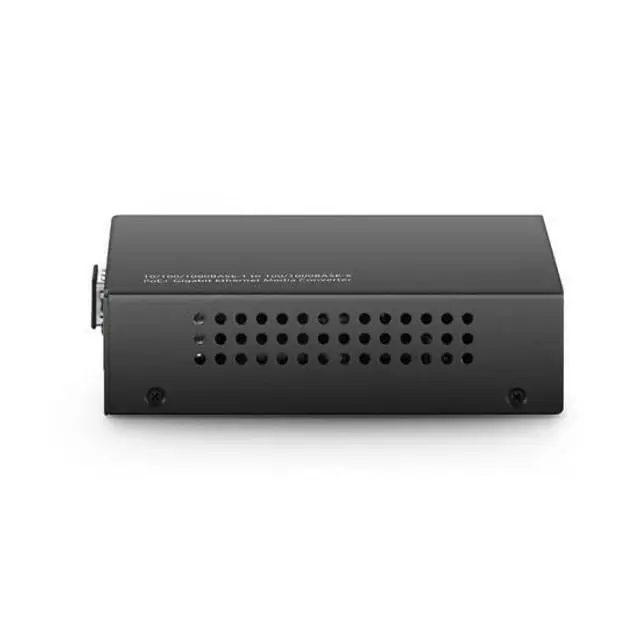

QSFPTEK 1G Gigabit Ethernet PoE+ Media Converter, Fiber to Ethernet Converter with 1x 10/100/1000Base-T to 1x 100/1000Base-X SFP Slot, AC 100V~240V or DC 5~12V Optional
- Fiber port: 1 x Gigabit SFP Port, 1 x 10/100/1000M RJ45 Port(Auto-MDI/MDIX).
- Compact size, dimensions 0.79''x2.36''x3.54'' (26x70x94mm), extends transmission distance by copper (CATx/UTP)-to-fiber connection.
- Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices, and 1Gbps data connection by using ethernet cable.
- PoE+ Gigabit Ethernet Media Converter is an ideal solution to deliver data and power network devices directly via the RJ45 interface without the need of installing extra power outlets and electrical cabling.
- Supports 10/100/1000 Mbps auto negotiation
- 16K Jumbo
- LFP. Compatible with a wide range of SFP transceivers, such as 100Base SFP, 1G BIDI SFP, 1G CWDM SFP, 1G DWDM SFP transceiver modules, etc. Designed to satisfy the growing demand for high power required network equipment such as cameras, Wifi access points and etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Converter Type: PoE+
Media Converter Ports: 1 x Gigabit SFP Port, 1 x 10/100/1000M RJ45 Port(Auto-MDI/MDIX)
Cable Type (Fiber): Multimode 50/125m, 62.5 /125m, Single-mode 9/125m
Cable Type (Copper): UTP Cat 5, 5e, 6 Cable (Maximum 100m)
PoE Power Budget: 30W
Flow Control: IEEE 802.3 x Pause Frame for Full Dupex, Back Pressure for Half Duplex
PoE Standard: IEEE 802.3 af/at
Operation Mode: 10/100Mbps for Half/Full duplex, 1000Mbps for Full Duplex
Dimensions (HxWxD): 1.02 ''x 2.76 ''x 3.7 '' (26x70x94mm)
MTBF (hrs): >50, 000Hrs
Latency: 3us
Power Consumption: 30.16W ~ 32.48W
Input Voltage: DC 52-56V, 0.58A
Operating Temperature: 0C to 50C
Storage Temperature: -40C to 70C
Media Converter Ports: 1 x Gigabit SFP Port, 1 x 10/100/1000M RJ45 Port(Auto-MDI/MDIX)
Cable Type (Fiber): Multimode 50/125m, 62.5 /125m, Single-mode 9/125m
Cable Type (Copper): UTP Cat 5, 5e, 6 Cable (Maximum 100m)
PoE Power Budget: 30W
Flow Control: IEEE 802.3 x Pause Frame for Full Dupex, Back Pressure for Half Duplex
PoE Standard: IEEE 802.3 af/at
Operation Mode: 10/100Mbps for Half/Full duplex, 1000Mbps for Full Duplex
Dimensions (HxWxD): 1.02 ''x 2.76 ''x 3.7 '' (26x70x94mm)
MTBF (hrs): >50, 000Hrs
Latency: 3us
Power Consumption: 30.16W ~ 32.48W
Input Voltage: DC 52-56V, 0.58A
Operating Temperature: 0C to 50C
Storage Temperature: -40C to 70C
