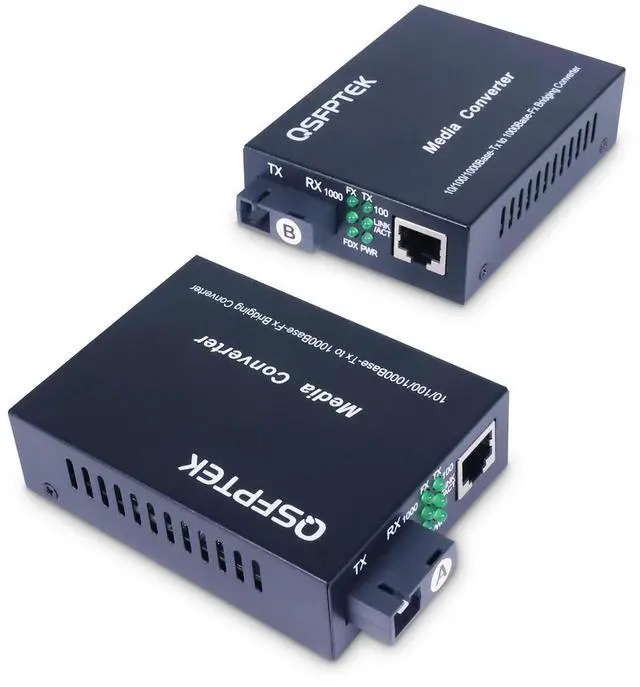

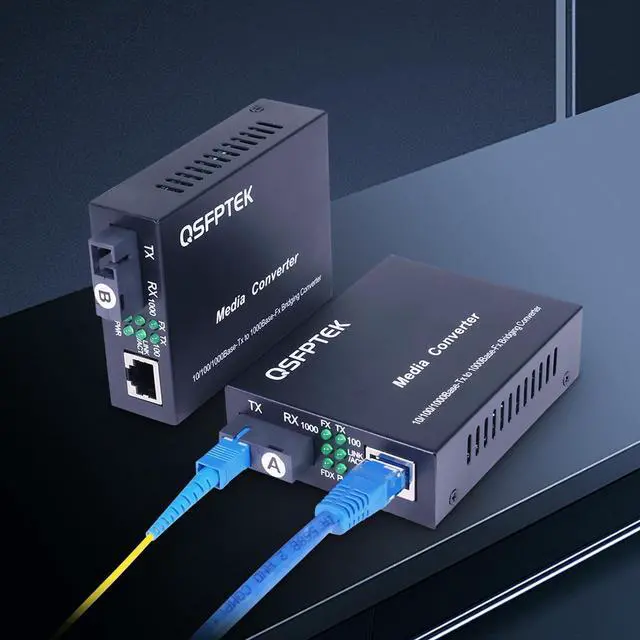

QSFPTEK A Pair 1.25G/s Bidi Fiber Media Converter, Gigabit Media Converter, 10/100/1000Base-Tx to 1000Base-FX Fiber Ethernet Coverter, Singlemode SC Bidi Transceiver TX1310nm/TX1550nm, 10Km
- Automatically : 10/100/1000Base-Tx to 1000Base-FX, adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends Ethernet over Single Mode Single Fiber to up to 10 km. full Duplex or half Duplex, Supports MDI/MDIX auto-crossover, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.
- Plug & Play: Simply plug in fiber optical port and UTP RJ-45 port, and it will work immediately. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.Supports working temperature range from 0C to 60C.
- Fiber Optical Port: 1.25Gbps 1310nm/1550nm wavelength SFP port, connecting the BiDi transceivers up to 10km
- Fiber Type: SMF, Cable Type: UTP/STP Cat.5e for 100 meters.

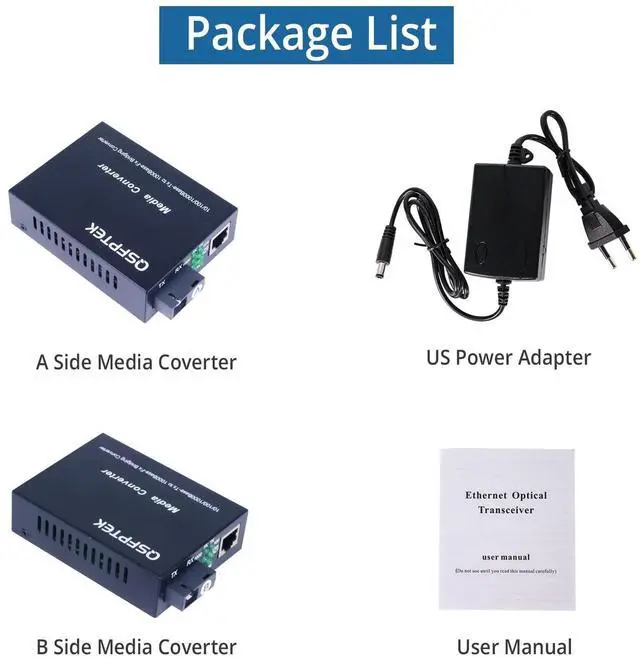

- Packing List: 2pcs Gigabit Single-mode ethernet media converters; 2pcs AC/DC Power Supply; 1 x Users Manual. Support wide power supply voltage (100V-240V).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Include2xSingle-mode SC Gigabit Ethernet Fiber Media Converter2xDC

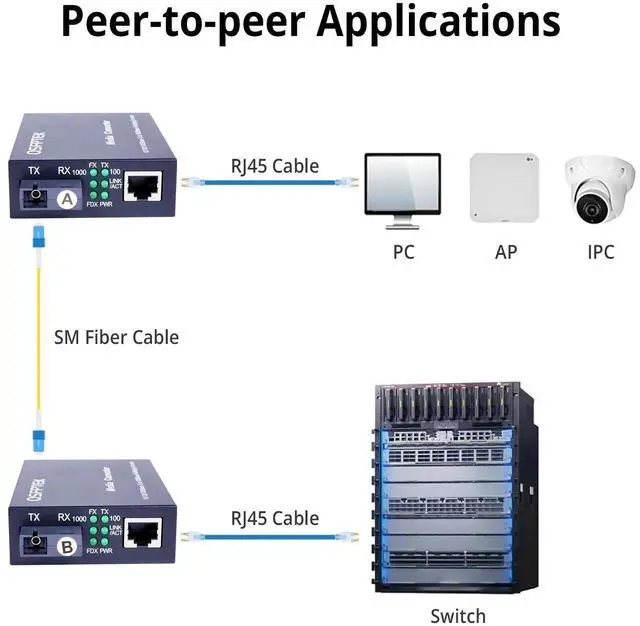

Power Adapter Output voltage: 5V DC/1A1xProduct Manual, Multi-Language Quick Installation GuideWide Applications1. Extend or bridge networks using fiber cable2. Provide connectivity to users in an isolated area of a large complex or in a separate building3. Ideal for secure connections required by government or corporations where EMI is not acceptableLED Indicators1.
FP: Light on when fiber speed is 1000Mbps, else light off2.
TP: Light on when TP speed is 1000Mbps, else light off3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active5.
PWR: Light on when DC power on, else light off. Feature Introduction1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX SFP Fiber Gigabit Media Converter2.
Interface: SC Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation3.
Fiber Type: Single-mode, Fiber
Connector: Single SC Fiber, Wavelength: 1310nm, Reach: 10km, included power supply.
Weight: 0.30 kg
Power Adapter Output voltage: 5V DC/1A1xProduct Manual, Multi-Language Quick Installation GuideWide Applications1. Extend or bridge networks using fiber cable2. Provide connectivity to users in an isolated area of a large complex or in a separate building3. Ideal for secure connections required by government or corporations where EMI is not acceptableLED Indicators1.
FP: Light on when fiber speed is 1000Mbps, else light off2.
TP: Light on when TP speed is 1000Mbps, else light off3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active5.
PWR: Light on when DC power on, else light off. Feature Introduction1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX SFP Fiber Gigabit Media Converter2.
Interface: SC Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation3.
Fiber Type: Single-mode, Fiber
Connector: Single SC Fiber, Wavelength: 1310nm, Reach: 10km, included power supply.
Weight: 0.30 kg
