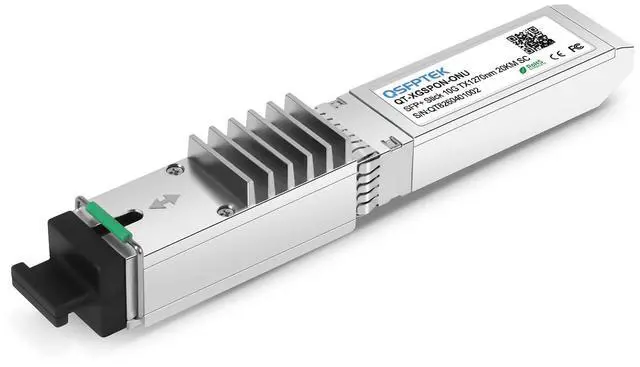

10G XGSPON ONU Stick SFP+ Transceiver, 1270nm TX / 1577nm RX, 20km SC/APC, DDM, Class B+ (2~7dBm), DFB/APD, 0-70C, Compatible with MikroTik, Ubiquiti UF-Instant & Standard OLT
- High-Performance XGSPON ONU Stick This SFP+ ONU module is designed for 10G symmetrical XGSPON networks. It features a 1270nm DFB laser for upstream transmission and a 1577nm APD photodiode for downstream reception, perfectly matching XGSPON OLT wavelength standards for true 10Gbps data rates.
- Long Reach & Strong Compatibility Supports up to 20km transmission distance with optical output power of 2~7dBm (Class B+) and receiver sensitivity < -29dBm. Builtin DDM (Digital Diagnostic Monitoring) allows realtime monitoring of temperature, voltage, bias current, and optical power. Works with major OLT brands including MikroTik (with XGSPON support), Ubiquiti UFInstant series, and other standard XGSPON OLTs.

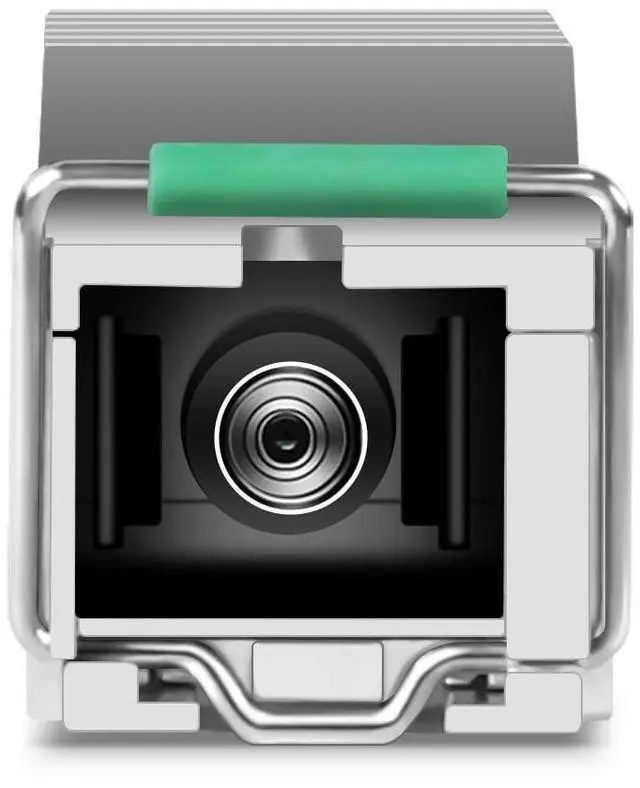

- Standard Interface & Industrial Design Equipped with an SC/APC connector for low insertion loss and high return loss. Operating temperature range 0C to 70C, suitable for most network racks, CPE, and SFP+ switches. Plugandplay with low power consumption no additional configuration
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter SpecificationProduct Type: XGSPON
ONU SFP+ StickData Rate: 10Gbps (symmetrical / asymmetrical depends on OLT)Transmitter
Wavelength (Tx): 1270nm (DFB laser)
Receiver Wavelength (Rx): 1577nm (APD-TIA)Transmission
Distance: 20kmOptical
Interface: SC/APC (please confirm your fiber connector type)
Output Optical Power: 2 ~ 7dBm (Class
B+)Receiver Sensitivity: <-29dBmDDM (Digital Diagnostic) Supported (realtime monitoring)
Operating Temperature: 0C ~ +70CStorage
Temperature: -40C ~ +85C (typical)
Power Supply: 3.3V (from
SFP+ host)Housing: SFP+ Stick (metal case)
Standards: ITUT G. 9807.1 (XGSPON), SFP+ MSA
ONU SFP+ StickData Rate: 10Gbps (symmetrical / asymmetrical depends on OLT)Transmitter
Wavelength (Tx): 1270nm (DFB laser)
Receiver Wavelength (Rx): 1577nm (APD-TIA)Transmission
Distance: 20kmOptical
Interface: SC/APC (please confirm your fiber connector type)
Output Optical Power: 2 ~ 7dBm (Class
B+)Receiver Sensitivity: <-29dBmDDM (Digital Diagnostic) Supported (realtime monitoring)
Operating Temperature: 0C ~ +70CStorage
Temperature: -40C ~ +85C (typical)
Power Supply: 3.3V (from
SFP+ host)Housing: SFP+ Stick (metal case)
Standards: ITUT G. 9807.1 (XGSPON), SFP+ MSA
