FanyiTek USB C Type C mini HD-MI Control Board for 15.6" 1366x768 B156XTK01.0 Touch HD 40pin Glossy OnCell Digitizer LCD LED Display
- [(Type C board)] Work for 1366x768 40 pin EDP LCD screen .video input: Type-C Mini HD-MI,Output: eDP USB (max 500mA),Audio Output: Speaker (8ohm 2W 4Pin 1.25mm Pitch )
- [(Compatible screen model no.)] 15.6 inch B156XTK01.0 on Cell touch IPS screen.
- [(Input Power Adapter)] Type-C connector (PD 18W,Pls prepare by yourself)
- [(HDR Tech.)] support HDR, rendering technology restore the real picture, stronger contrast, more dynamic range and image details, delivers you an awesome viewing experience.

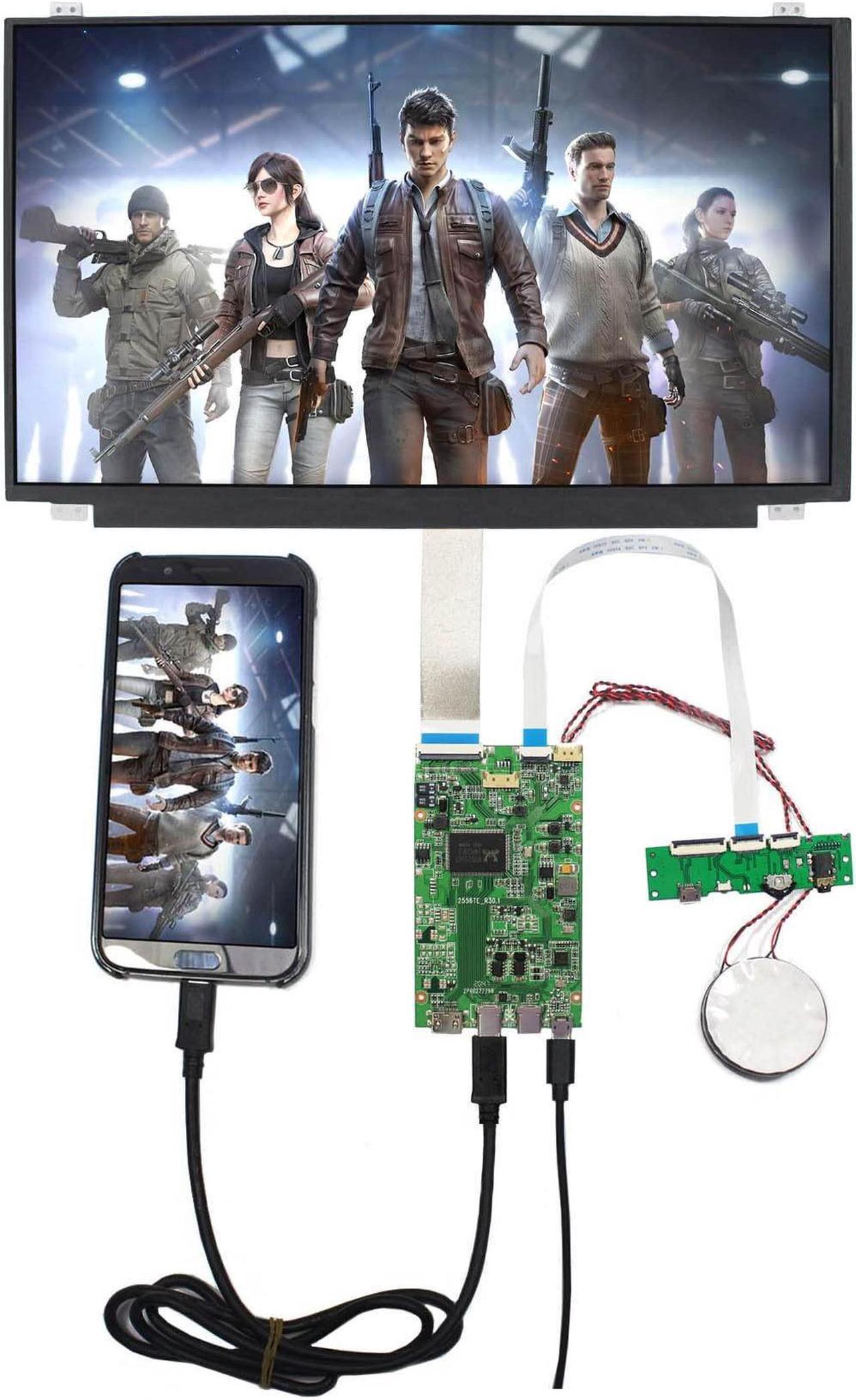

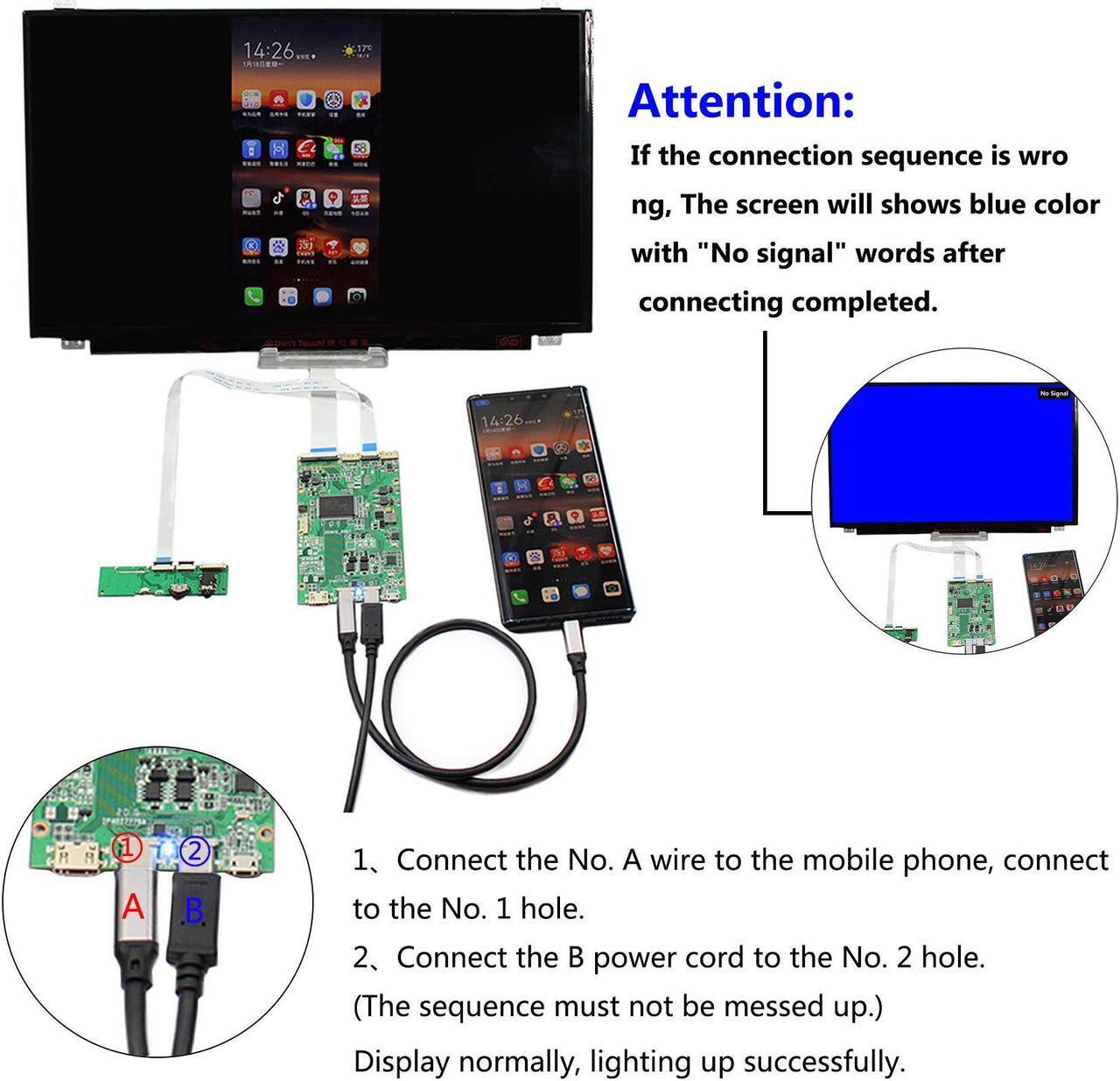

- [(Plug & play)] Directly connecting cables and ports same as link picture, power on ,the LED light will be green ,then enter in HDMI / type c signal ,with correct resolution,the screen can work well
+
+
Overview
Specs
Reviews

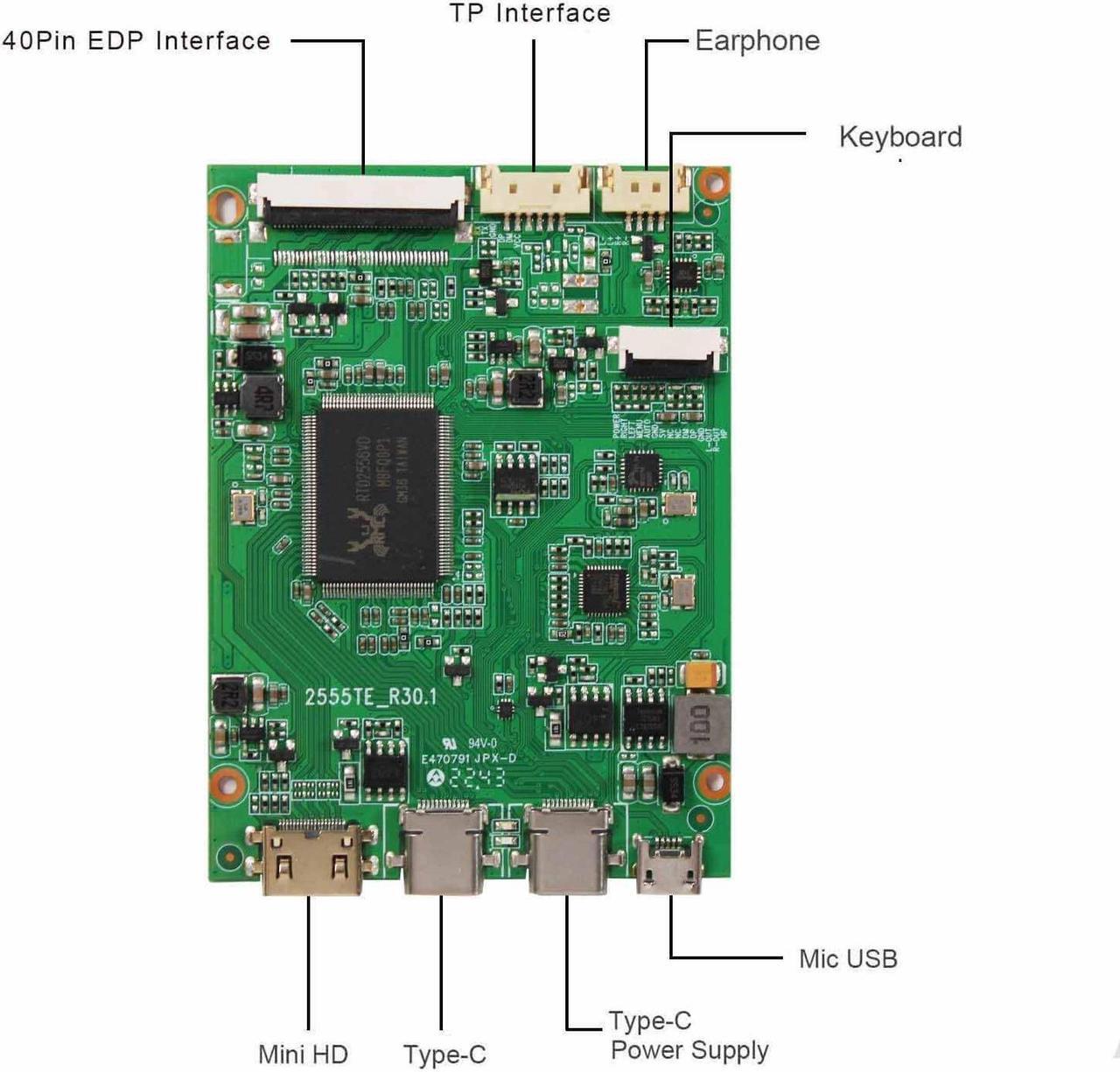

LCD Controller Board: HD-MI Type C Control Board Work for 40Pin EDP
LCD ScreenInput Power Adapter: Type-C connector (the one beside the micro USB port )
HDR: SupportCome In Standby Model When Not Input SignalStandby Model <0.3WInput: Type-C Mini HD-MI Output: eDP USB (max 500mA)Audio Output: SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce PolskiNederlands Korean JapaneseBoard Size: 126mm x 60mm x 4mmCompatible Work With:br/> 15.6 inch 1366x768B156XTK 01.0

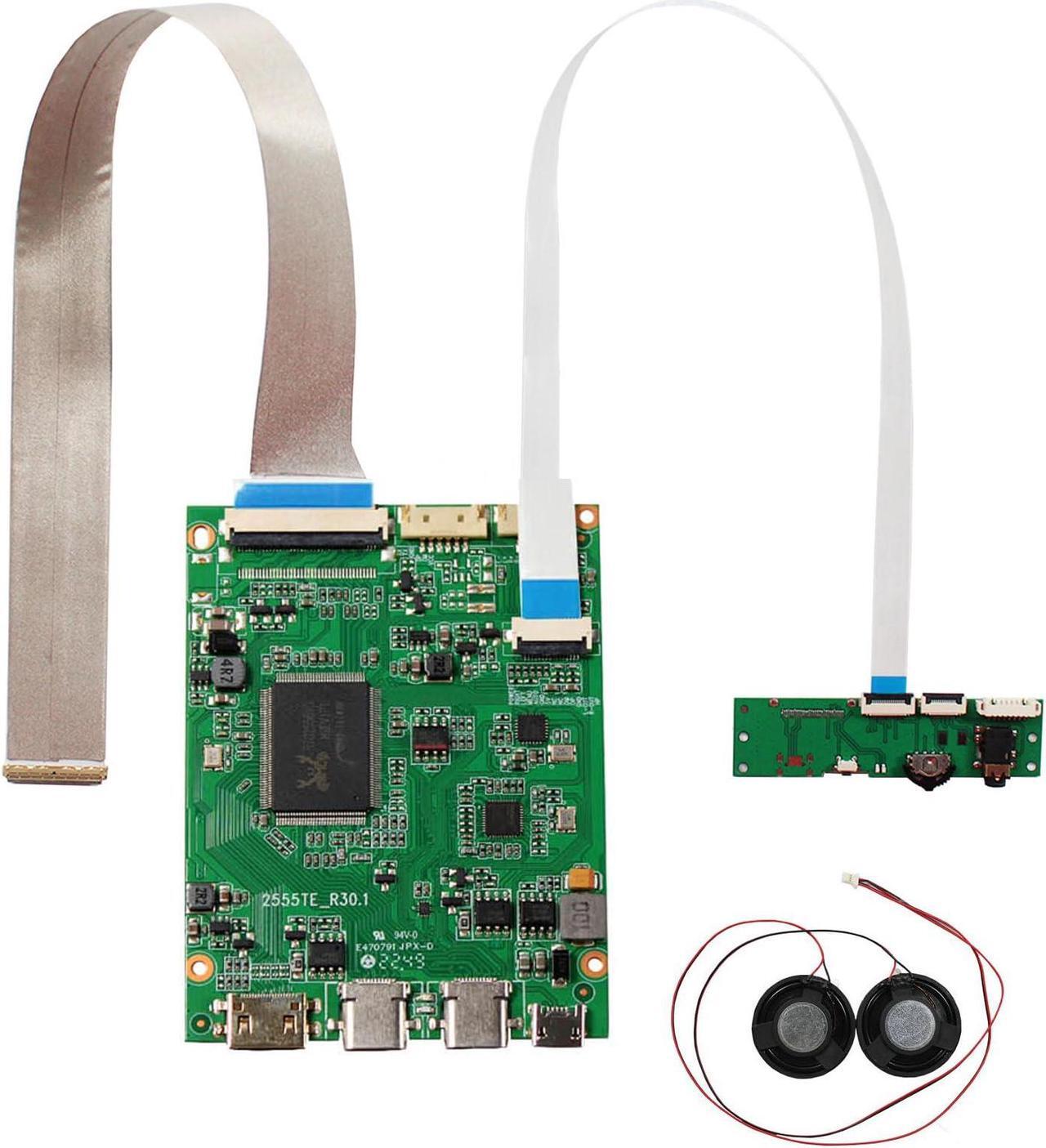

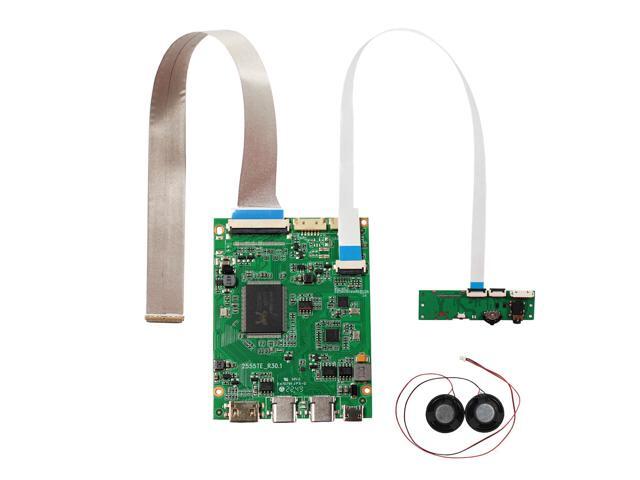

Packing list: 1x HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2 1x Signal Cable1x Speaker1x Keyboard With Cable
LCD ScreenInput Power Adapter: Type-C connector (the one beside the micro USB port )
HDR: SupportCome In Standby Model When Not Input SignalStandby Model <0.3WInput: Type-C Mini HD-MI Output: eDP USB (max 500mA)Audio Output: SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce PolskiNederlands Korean JapaneseBoard Size: 126mm x 60mm x 4mmCompatible Work With:br/> 15.6 inch 1366x768B156XTK 01.0
Packing list: 1x HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2 1x Signal Cable1x Speaker1x Keyboard With Cable
