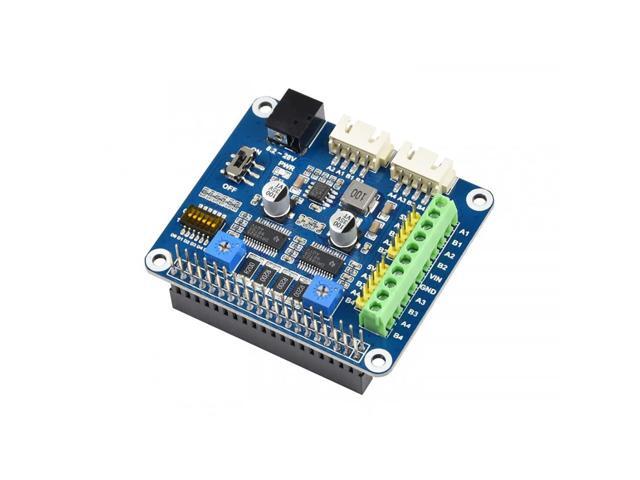

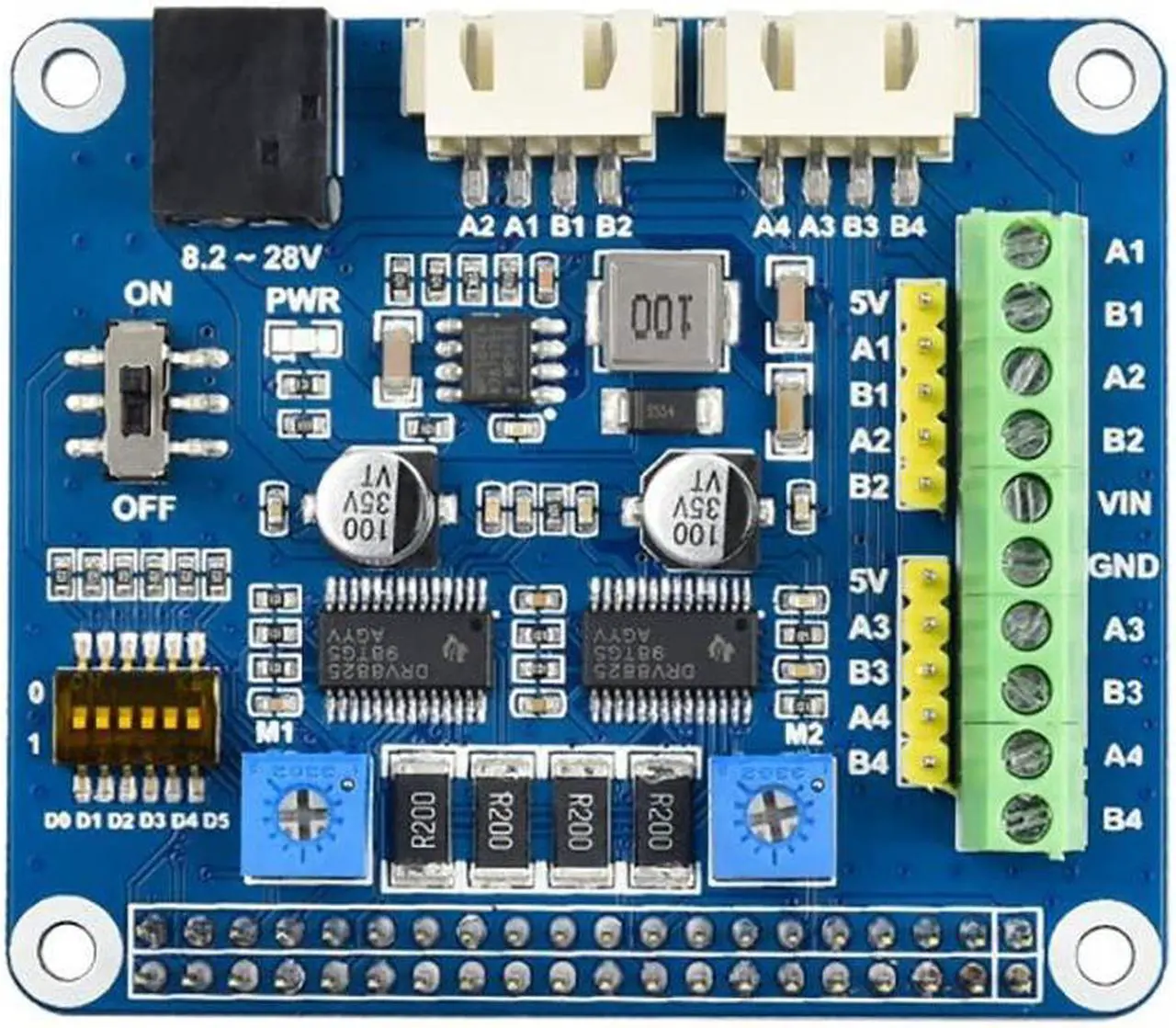

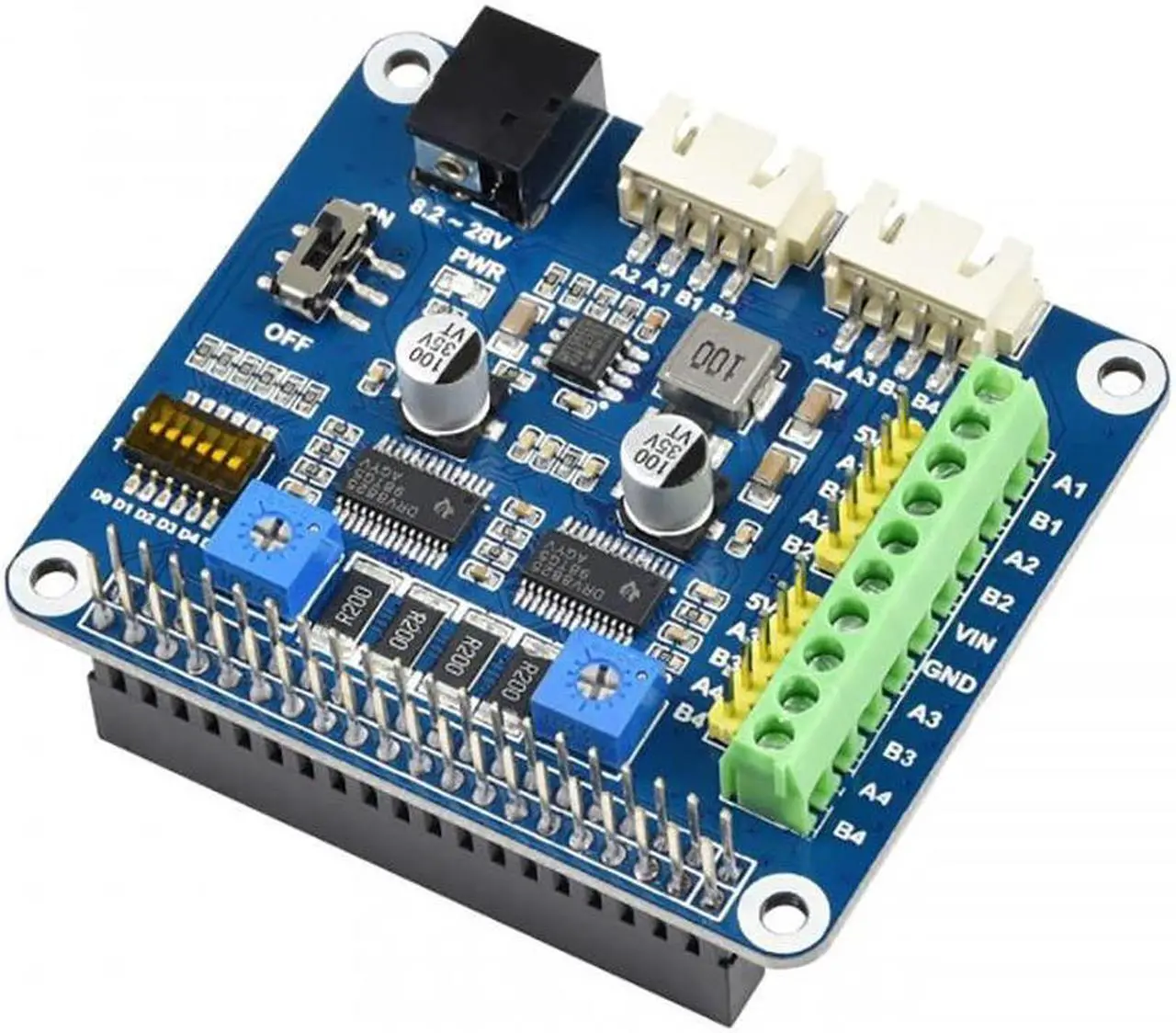

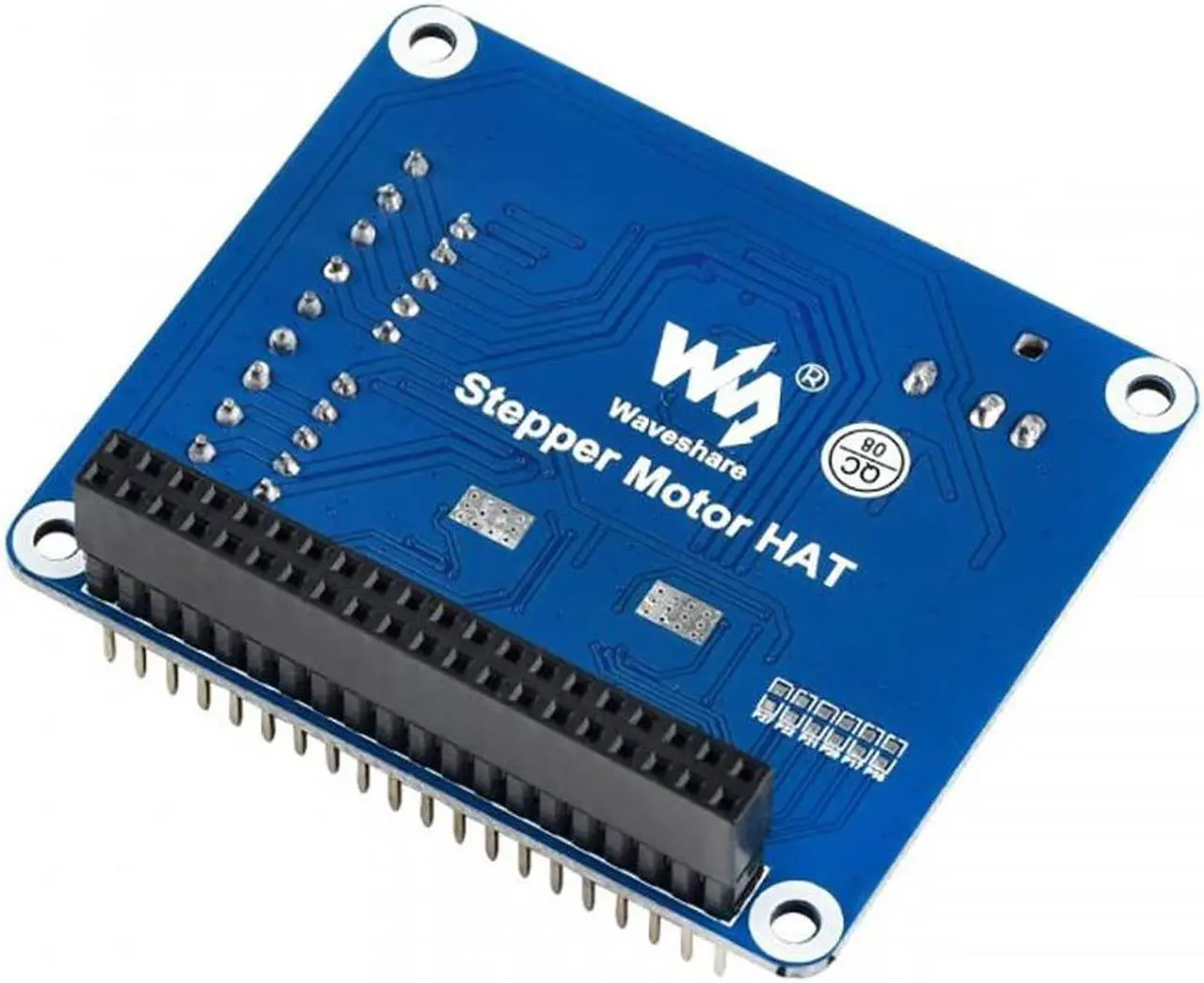

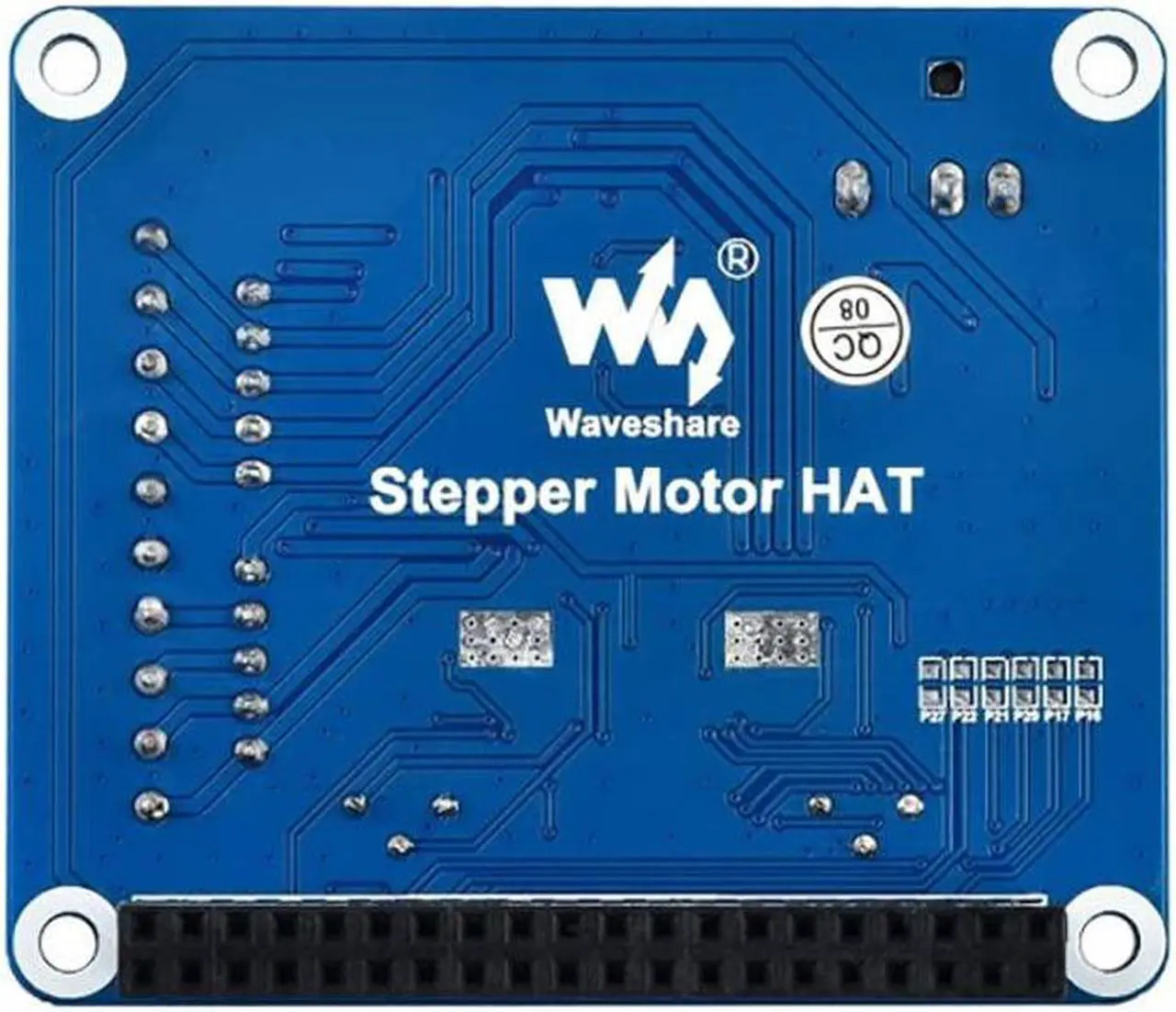

Coolwell Waveshare Stepper Motor HAT for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH Jetson Nano Dual DRV8825 Motor Controller up to 1/32 Microstepping Drives Two Stepper Motors
- The Raspberry Pi stepper motor HAT comes with standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- The DRV8825 stepper motor driver board has onboard dual DRV8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
- This Raspberry Pi stepper motor kit with 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- The Raspberry Pi stepper motor shield with adjustable motor drive current via potentiometer, maximum 2.5A current output
- Feel free to contact us if you have any problem with using this item, we will always be ready to help solve the problems.
+
+
Overview
Specs
Reviews
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Onboard dual DRV8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Adjustable motor drive current via potentiometer, maximum 2.5A current output
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
Integrates 5V regulator, allows providing power to Raspberry Pi
Onboard multi connector options for stepper motors in different specifications
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
Motor controller: DRV8825
Motor drive voltage: 8.2V ~28V
Motor drive current: 2.5A
Logic voltage: 3.3V

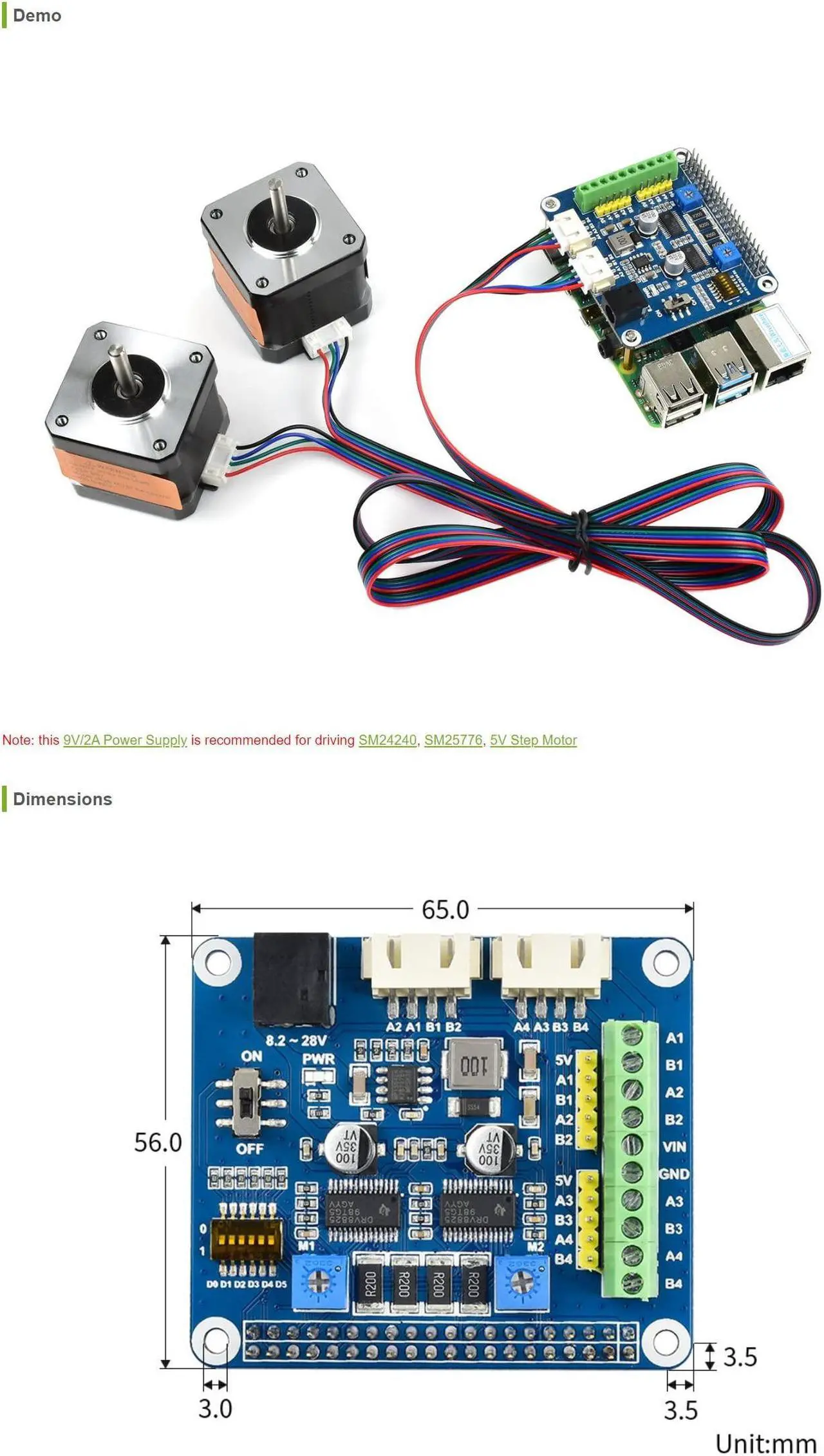

Dimension: 65mm x 56mm
Mounting hole size: 3.0 mm
Applications
3D Printer
Sculpturing machine
Mechanical arm
Note: Raspberry Pi and stepper motors in the photos are NOT included.
1. Stepper Motor HAT x1 2. RPi screws pack (2pcs) x1
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Onboard dual DRV8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Adjustable motor drive current via potentiometer, maximum 2.5A current output
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
Integrates 5V regulator, allows providing power to Raspberry Pi
Onboard multi connector options for stepper motors in different specifications
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
Specifications
Motor controller: DRV8825
Motor drive voltage: 8.2V ~28V
Motor drive current: 2.5A
Logic voltage: 3.3V
Dimension: 65mm x 56mm
Mounting hole size: 3.0 mm
Applications
3D Printer
Sculpturing machine
Mechanical arm
Note: Raspberry Pi and stepper motors in the photos are NOT included.
1. Stepper Motor HAT x1 2. RPi screws pack (2pcs) x1
