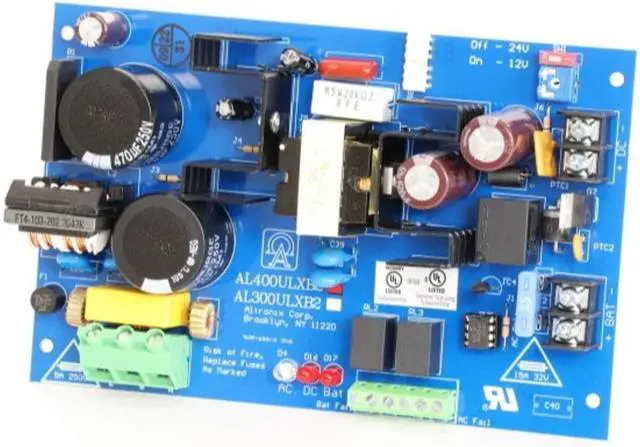

Altronix AL400ULXB2 Power Supply Charger, Single Class 2 Power Output, Filtered and Electronically Regulated Output, 12VDC @ 4A or 24VDC @ 3A Supply Current, Input 115VAC, Board

Altronix AL400ULXB2 Power Supply Charger, Single Class 2 Power Output, Filtered and Electronically Regulated Output, 12VDC @ 4A or 24VDC @ 3A Supply Current, Input 115VAC, Board

Altronix AL400ULXB2 UL Listed Sub-Assembly power supply/charger converts a 115VAC, 60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.

Key Features
- Input 115VAC, 60Hz, 3A
- Input fuse rated @ 3.5A /250V
- 12VDC or 24VDC selectable output
- 12VDC @ 4A or 24VDC @ 3A supply current
- Class 2 Rated power limited output
- Filtered and electronically regulated output
- Short circuit and thermal overload protection
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switch over to stand-by battery when AC fails
- AC fail supervision (form "C" contacts)
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours
- Low battery supervision (form "C" contacts)
- Battery presence supervision (form "C" contacts)
- AC input, DC outputand Battery LED indicators

Specifications

- Operating: 0°C to 49°C (32°F to 120°F)
- Storage: - 20° C to 70° C (-4°F to 158°F)
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx. ):
12VDC: 25 BTU/Hr., 24VDC: 37 BTU/Hr.
- System AC input VA requirement: 402.5VA
- Dimensions: 4.5"W x 7.1"L x 1.44"H (114 x 180 x 37mm)
- Weight: 1.4 Lbs ( 0.64 kg)
- Shipping Weight: 1.6 Lbs ( 0.73 kg)
