H110 Motherboard MATX - Supports LGA 1151 6th/7th/8th/9th Gen Processors, with Dual Channel DDR4, PCIe 3.0 X16, M.2 Slot, VGA, USB 3.0, USB 2.0,3.0
- Easy Expansion: This server motherboard is designed with HD Multimedia Interface and VGA interface. M.2 interface supports NGFF and NVME protocol.
- SATA3.0 Interface: This PC motherboard adopts SATA3.0 interface that features strong compatibility and provide fast reading speed.
- DDR4 SO DIMM: This desktop motherboard adopts dual channel DDR4 SO DIMM, and it supports up to 64GB.
- 32GB/s : This computer motherboard is equipped with M.2 hard disk interface which supports 32GB/s speed.

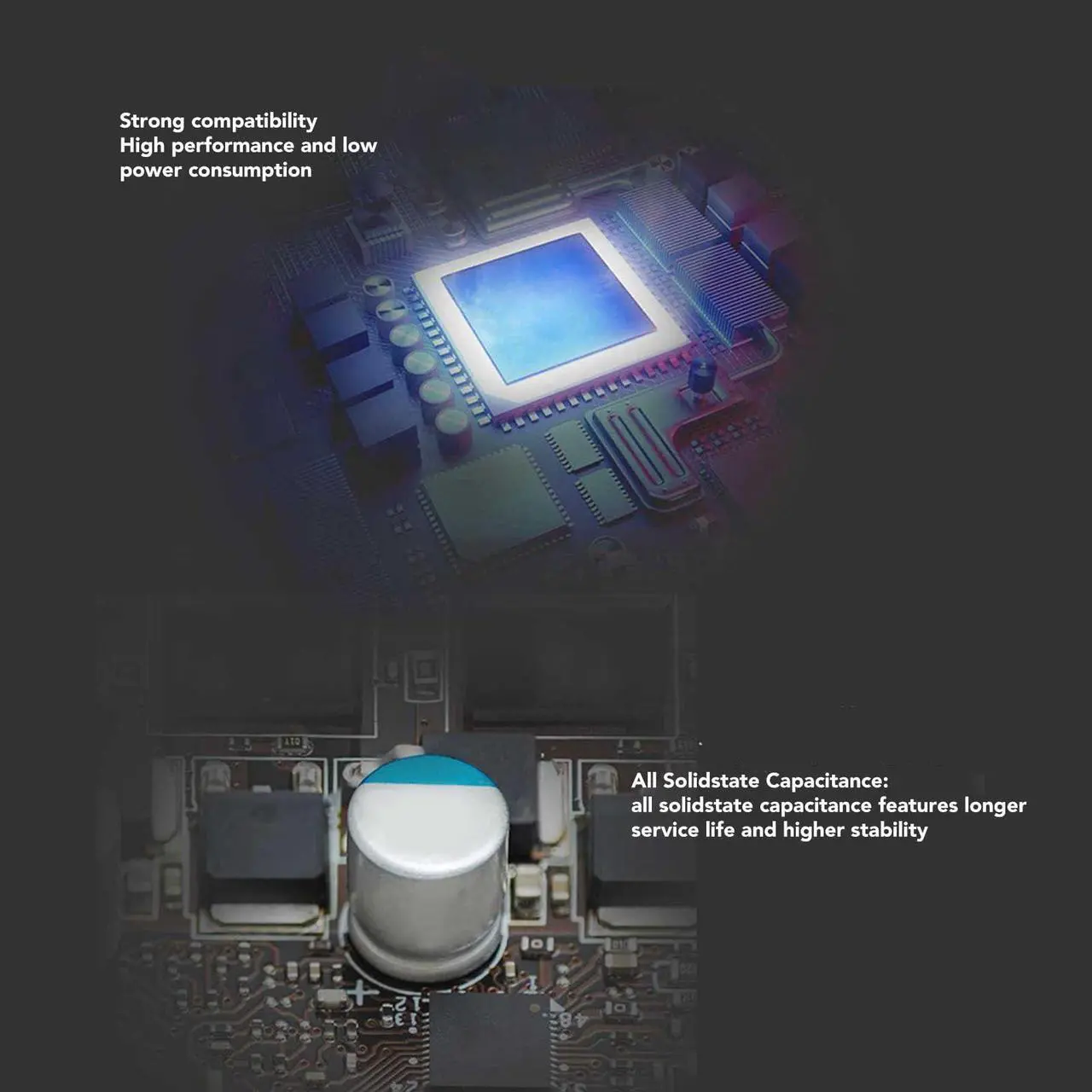

- All Solidstate Capacitance: This LGA 1151 motherboard adopts all solidstate capacitance that provides stable performance and extends service life of motherboard.
+
+
Overview
Specs
Reviews
Spec:
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Chipset: H110
Motherboard Framework: M ATX
Motherboard Size: Approx. 190 x 170mm / 7.5 x 6.7 in ( Manual Measurement, Slight Error May Exist )
CPU Slot Type: Supports LGA 1151
Netword Card Chip: 100M Netword Card Chip
Graphics Card Slot: PCI E X16 Gen 3.0
Supported Memory Type: 2 x DDR4
Maximum Memory Capacity: 2 x 32GB (64GB in Total)
Interface: SATA 3.0 x 3
USB Interface: USB 3.0 x 2, USB 2.0 x 4
Sound Adapter: ALC897
Power Supply: 24 Pin x 1, 4 Pin x 1

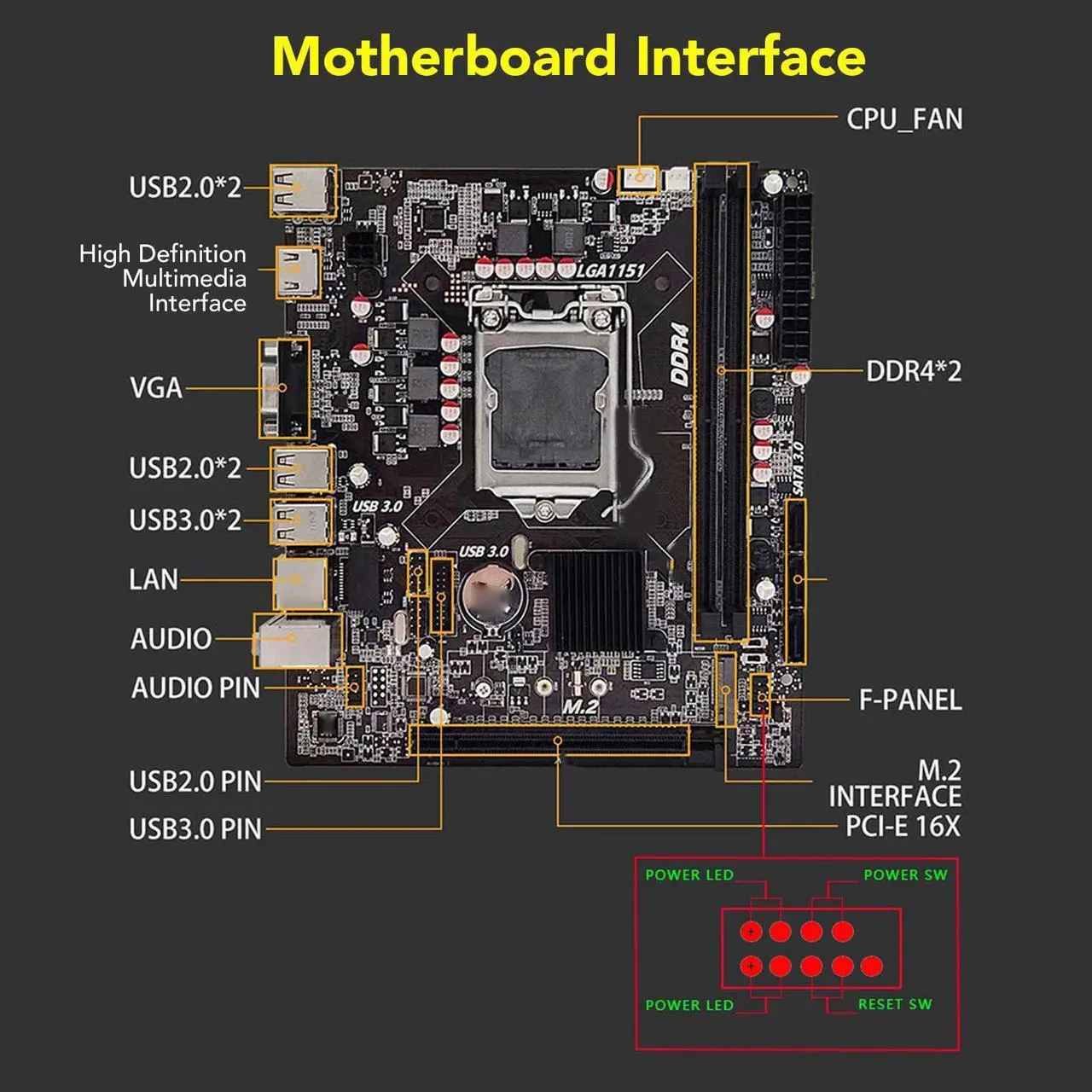

Expansion Interface: 1 x HD Multimedia Interface, 1 x VGA, M. 2 Interface(NGFF, NVME Protocol Supported)
Battery Type: CR2032 Button Battery (Inbuilt)
Battery Capacity: 240mAh

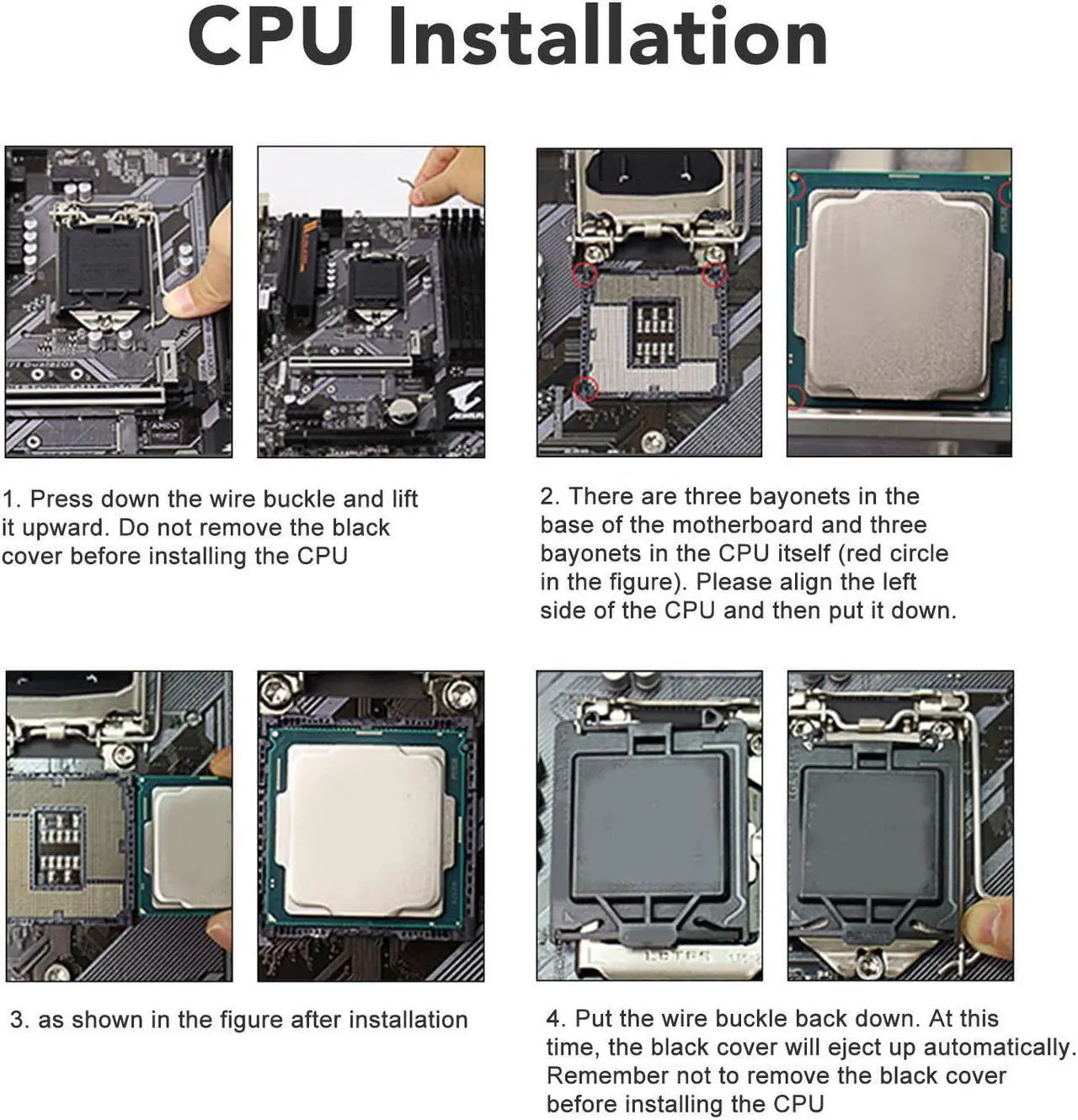

The Motherboard Is Fixed In The Main Box, And Then Connected According To The Corresponding Marked Connector.
No Power Problem: When The Device Cannot Be Turned On And The Power Indicator Is Off, Please Make Sure That The Power Supply Is Connected And Works Normally. If Your Cpu Fan Is Installed Correctly, You Can Also Tell If The Power Supply Is Working Properly By Determining If The Fan Is Working Properly.
PackageList:
1 x Desktop Motherboard
1 x Baffle
1 xCable
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Chipset: H110
Motherboard Framework: M ATX
Motherboard Size: Approx. 190 x 170mm / 7.5 x 6.7 in ( Manual Measurement, Slight Error May Exist )
CPU Slot Type: Supports LGA 1151
Netword Card Chip: 100M Netword Card Chip
Graphics Card Slot: PCI E X16 Gen 3.0
Supported Memory Type: 2 x DDR4
Maximum Memory Capacity: 2 x 32GB (64GB in Total)
Interface: SATA 3.0 x 3
USB Interface: USB 3.0 x 2, USB 2.0 x 4
Sound Adapter: ALC897
Power Supply: 24 Pin x 1, 4 Pin x 1
Expansion Interface: 1 x HD Multimedia Interface, 1 x VGA, M. 2 Interface(NGFF, NVME Protocol Supported)
Battery Type: CR2032 Button Battery (Inbuilt)
Battery Capacity: 240mAh
The Motherboard Is Fixed In The Main Box, And Then Connected According To The Corresponding Marked Connector.
No Power Problem: When The Device Cannot Be Turned On And The Power Indicator Is Off, Please Make Sure That The Power Supply Is Connected And Works Normally. If Your Cpu Fan Is Installed Correctly, You Can Also Tell If The Power Supply Is Working Properly By Determining If The Fan Is Working Properly.
PackageList:
1 x Desktop Motherboard
1 x Baffle
1 xCable
