40G QSFP + SR4 for Dell Networking 430-4593,40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Optical Transceiver Module
- [(QSFP+ 40G)] Dell Networking 40Gigabit Ethernet, coding as Dell Networking 430-4593
- [(40GBASE-SR4)] QSFP+ transceiver module, 40Gbps, multi mode, 850nm, 150m, MTP/MPO connector, Four-channel full-duplex, Hot Pluggable, support DOM
- [(Protocols)] SATA/SAS3, IEEE 802.3ba, QSFP MSA Compliant
- [(3 Warranty)] - Enjoy Fibermall 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
- [(Customization)] Fibermall supports regular custom service for your options.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

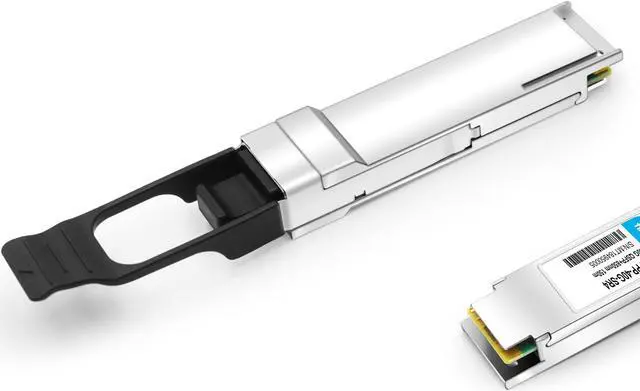

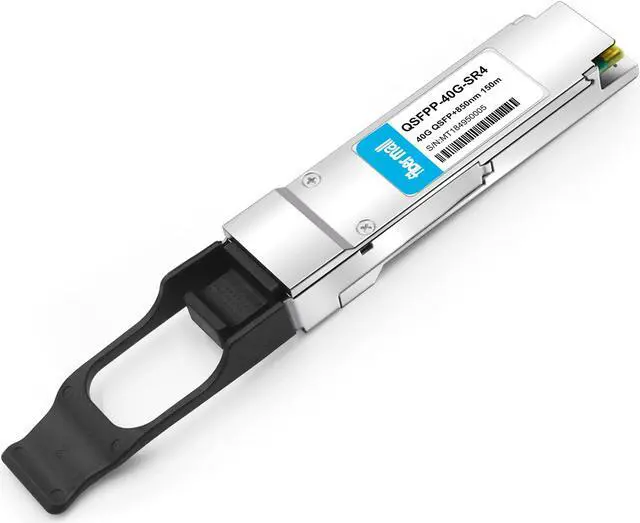

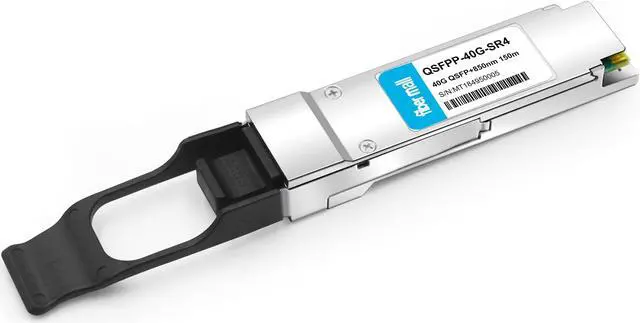

Fiber Mall 40G-QSFP-SR4-De is a 40Gb/s QSFP+ Optical transceiver module. It is used in 40gb Ethernet with links up to 150m over OM4 multimode fiber (MMF) at 850nm wavelength via a MTP/MPO connector. Besides, it is compliant with the QSFP+ MSA and IEEE 802.3 ba 40GBASE-SR4 and breakout to 4x10GBASE-SRProduct

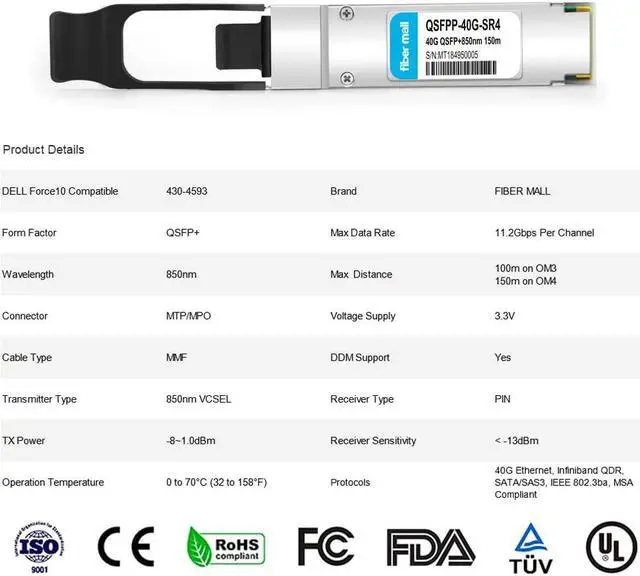

Features Dell Networking Genuine: 430-4593
Form Type: QSFP+
Max Data Rate: 40Gbps 4 independent full-duplex channels Up to 11.2G bps per channel bandwidth Aggregate bandwidth of > 40Gbps MTP/MPO optical connector Digital diagnostic capabilities Capable of over 100m transmission on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF CML compatible electrical I/O TX input and RX output CDR retiming Built-in digital diagnostic functions
Temperature range: 0degC to 70degC ApplicationsDell Networking 430-4593 Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module for Ethernet and Data Center Data centers Metro networks Switches and Routers Infiniband 4x SDR, DDR, QDR 40GBASE-SR4 40G Ethernet Breakout to 4 x 10GBASE-SR EthernetPlatform SupportDell Networking 430-4593 is supported on a wide range of Dell equipment. N4032 S4810 Mellanox M3601Q N4032F N4064l N4064FPackage1*sfp dust cover1 *pair 40Gbps SR4 fiber transceiver module 1* package box
Features Dell Networking Genuine: 430-4593
Form Type: QSFP+
Max Data Rate: 40Gbps 4 independent full-duplex channels Up to 11.2G bps per channel bandwidth Aggregate bandwidth of > 40Gbps MTP/MPO optical connector Digital diagnostic capabilities Capable of over 100m transmission on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF CML compatible electrical I/O TX input and RX output CDR retiming Built-in digital diagnostic functions
Temperature range: 0degC to 70degC ApplicationsDell Networking 430-4593 Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module for Ethernet and Data Center Data centers Metro networks Switches and Routers Infiniband 4x SDR, DDR, QDR 40GBASE-SR4 40G Ethernet Breakout to 4 x 10GBASE-SR EthernetPlatform SupportDell Networking 430-4593 is supported on a wide range of Dell equipment. N4032 S4810 Mellanox M3601Q N4032F N4064l N4064FPackage1*sfp dust cover1 *pair 40Gbps SR4 fiber transceiver module 1* package box
