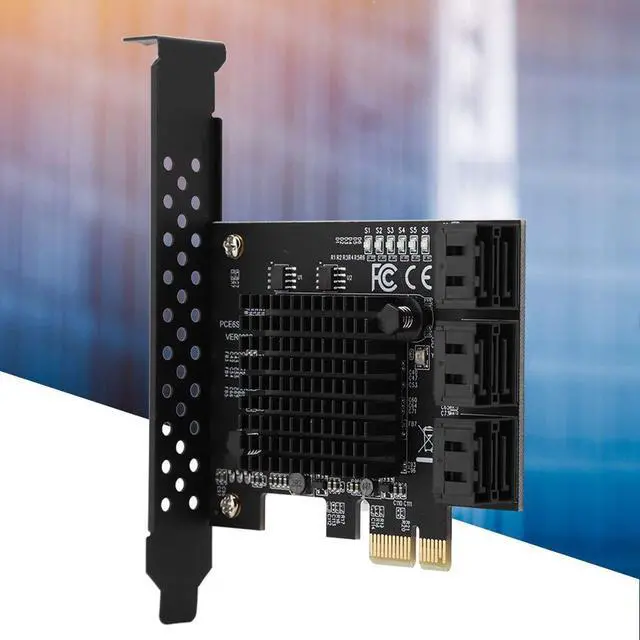

6 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card, SATA 3.0 PCI Express Expansion Card Compatible for SATA6G 3G 1.5G HDD

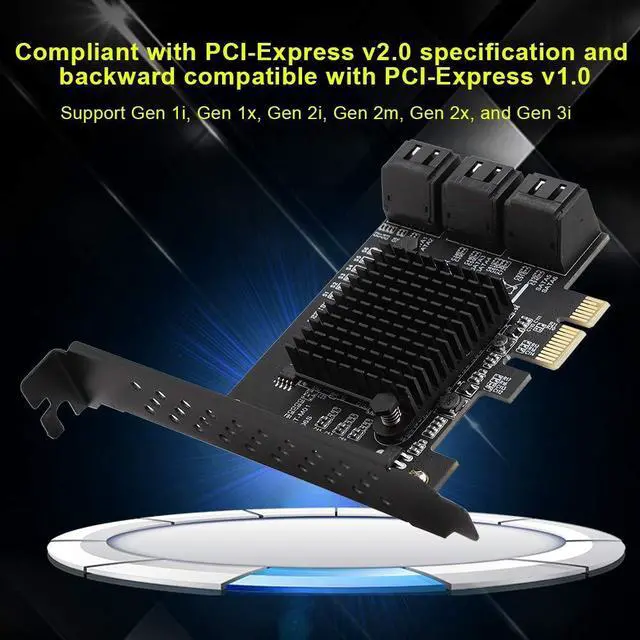

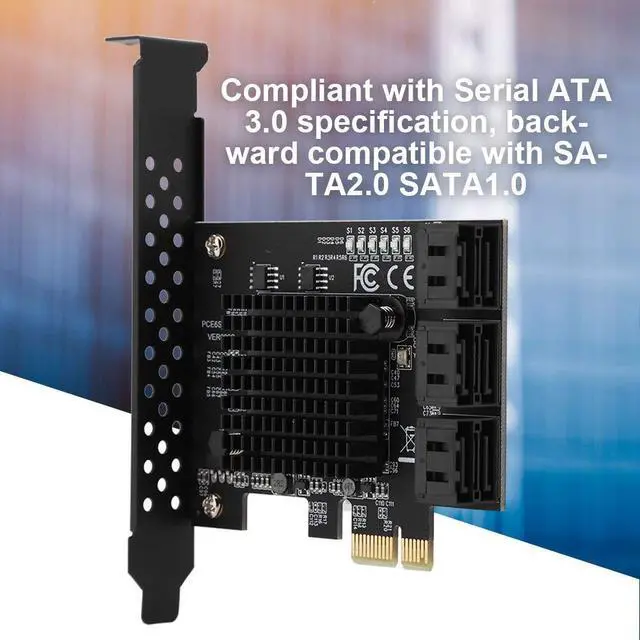

- Compatible with Serial SATA 3.0 specification, backward compatible with SATA2.0 SATA1.0. Compliant with PCI-Express v2.0 specification and backward compatible with PCI-Express v1.0. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

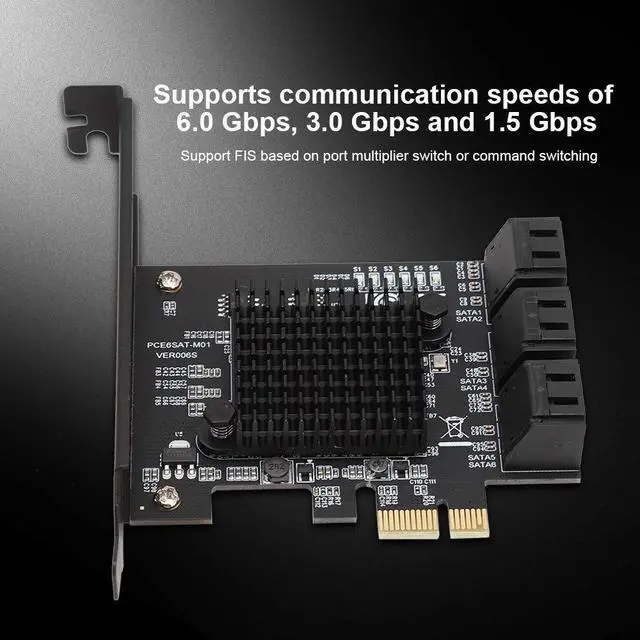

- Support FIS based on port multiplier switch or command switching. Compatible with SATA6G, 3G and 1.5G hard drives. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
- The SATA interface mode of PCIE to SATA3.0 is AHCI mode. If you want to plug in the system disk on our card, the premise is that your system disk must be installed in AHCI mode when installing the system on the motherboard. Otherwise, the system cannot be started through our transfer card.
- If it is determined that the SATA interface installation system of the system disk inserted in the motherboard is AHCI mode, then you can directly insert the hard disk into our card, and then enter the motherboard BIOS to set the system disk as the first boot.
- If the ab
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Name: 6-port SATA 3.0 expansion card
Model: PCE6SAT-M01
Master control: for marvell 88SE92xx+109X
Interface: PCI-E 1x, 2x, 4x, 8x, 16x
Support system: for WINXP / WIN7 / WIN8 / WIN10 / LINUX
Bus interface: PCI-Express x1 slot
Expansion interface: 6 SATA 3.0 interfaces
Product size: approx. 12 * 10 * 2cm / 4.7 * 3.9 * 0.8 inch
The common disk and PCIE to SATA 3.0 connection conditions and solutions:
1. When the system disk is inserted on the motherboard, the ordinary
disk is inserted in the PCIE to SATA 3.0 card, then only the adapter card
information and the normal disk model need to be detected at startup.
2. If the condition is established, or can not start the system, then
you must enter the motherboard BIOS, set the system disk to the first
boot.
The system disk and the ordinary disk and PCIE to
SATA 3.0 connection and solution:
1. Premise, if the system disk with the original motherboard installed
system is AHCI mode test, can use the following methods to achieve, if
it is IDE mode installed system, then you can only reinstall the system
through PCIE to SATA 3.0.
2. When the first condition is established, and you still can not start
to enter the motherboard BIOS, set the system disk to the first boot.
3. When the first and second conditions are met, and you still can not
start, then it may be integrated SATA interface conflict, please enter
the motherboard BIOS to set SATA to Disabled.
Package List:
Card *1
Half height baffle *1
Name: 6-port SATA 3.0 expansion card
Model: PCE6SAT-M01
Master control: for marvell 88SE92xx+109X
Interface: PCI-E 1x, 2x, 4x, 8x, 16x
Support system: for WINXP / WIN7 / WIN8 / WIN10 / LINUX
Bus interface: PCI-Express x1 slot
Expansion interface: 6 SATA 3.0 interfaces
Product size: approx. 12 * 10 * 2cm / 4.7 * 3.9 * 0.8 inch
The common disk and PCIE to SATA 3.0 connection conditions and solutions:
1. When the system disk is inserted on the motherboard, the ordinary
disk is inserted in the PCIE to SATA 3.0 card, then only the adapter card
information and the normal disk model need to be detected at startup.
2. If the condition is established, or can not start the system, then
you must enter the motherboard BIOS, set the system disk to the first
boot.
The system disk and the ordinary disk and PCIE to
SATA 3.0 connection and solution:
1. Premise, if the system disk with the original motherboard installed
system is AHCI mode test, can use the following methods to achieve, if
it is IDE mode installed system, then you can only reinstall the system
through PCIE to SATA 3.0.
2. When the first condition is established, and you still can not start
to enter the motherboard BIOS, set the system disk to the first boot.
3. When the first and second conditions are met, and you still can not
start, then it may be integrated SATA interface conflict, please enter
the motherboard BIOS to set SATA to Disabled.
Package List:
Card *1
Half height baffle *1
