MakerFocus 2 Set ESP32 LoRa V3 Development Board with 915 MHz Antenna and Case Integrated WiFi Bluetooth SX1262 CP2102 0.96-inch OLED Display Type C for Meshtastic IoT Arduino Intelligent Scenes

WiFi LoRa 32 (V3) is a classic IoT development board. It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading and IoT developers

Features:

1.
Microprocessor: ESP32-S3FN8 (Frequency up to 240 MHz)
2. SX1262 LoRa node chip

3. With good RF circuit design and low-power design

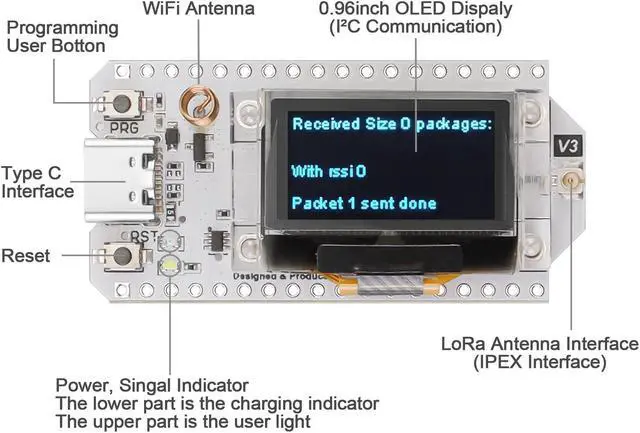

4. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protection measures

5. Onboard SH 1.25 -2 battery interface, integrated lithium battery management system

6. Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use

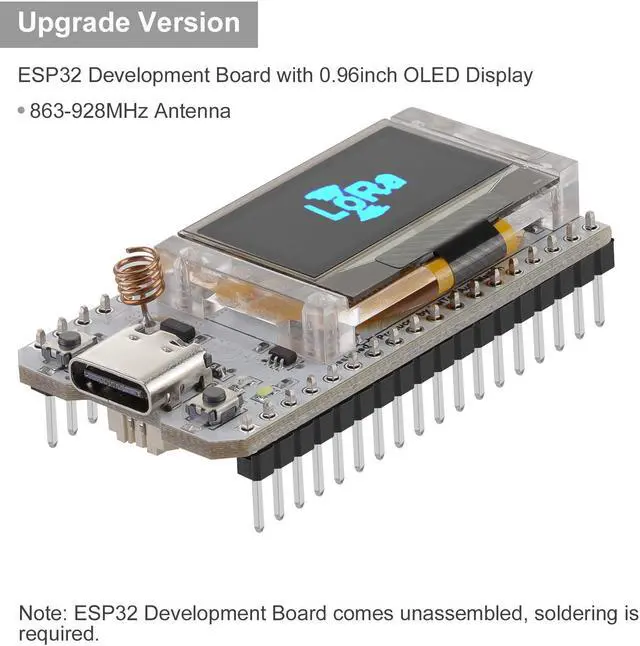

7. Onboard 0.96 -inch 128*64 dot matrix OLED display can be used to display debugging information, battery power and other information

8. Integrated CP2102 USB to serial port chip, convenient for program downloading and debugging information printing

9. Support the Ar duino development environment

10. We provide ESP32 + LoRaWAN protocol Ar duino library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol

Parameter:
Max.
TX Power: 21 +- 1 dBm
Max.
Receiving sensitivity: -139 dBm
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh

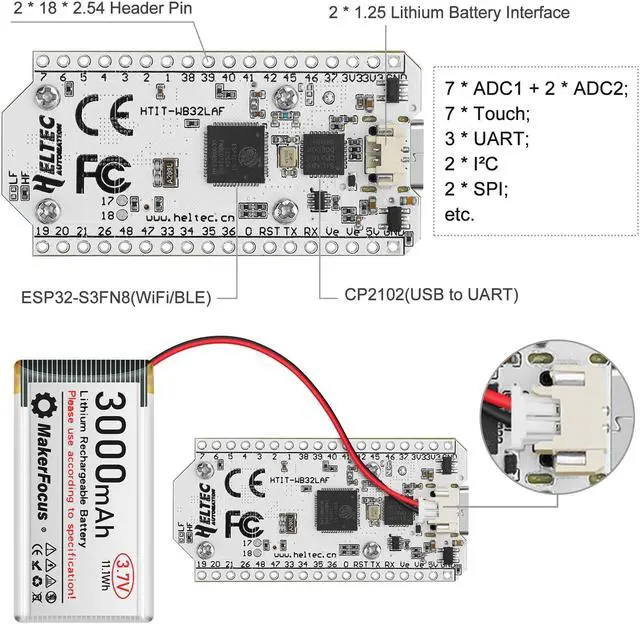

Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2* 1.25 lithium battery interface; LoRa ANT(IPEX 1.0 ); 2*18* 2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Operating temperature: -20 ~ 70
Dimensions: 50.2 * 25.5 * 10.2 mm

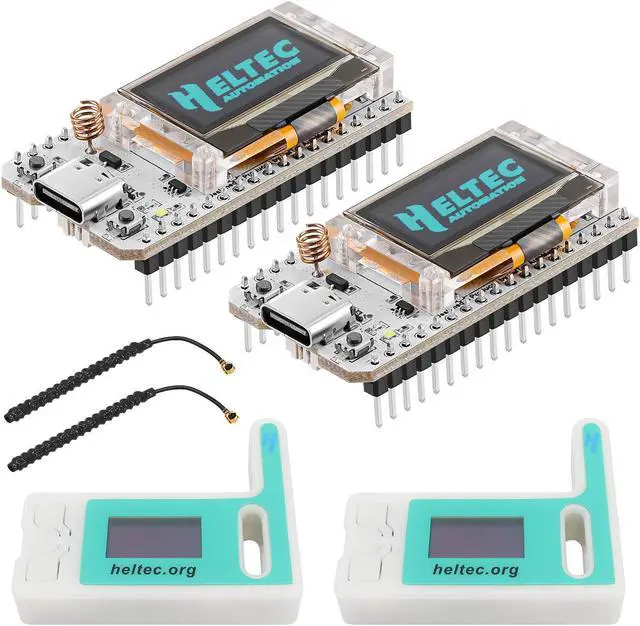

Package Content:
2 * WiFi LoRa 32
2 * Power Cord
4 * Pin Header

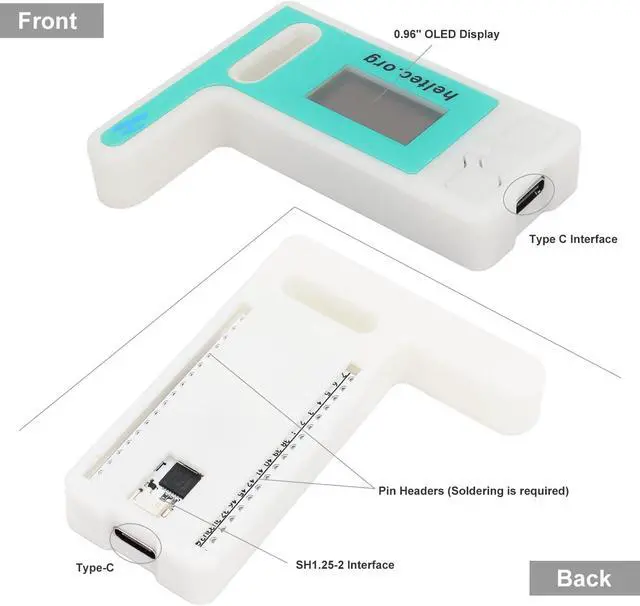

2 * Protective Case
