Nooelec RTL-SDR v5 Bundle - NESDR Smart HF/VHF/UHF (100kHz-1.75GHz) Software Defined Radio. Premium RTLSDR w/ 0.5PPM TCXO, SMA Input, Aluminum Enclosure & 3 Antennas. RTL2832U & R820T2-Based Radio
- Turn your computer, phone or tablet into a radio scanner/ham radio receiver that can receive nearly all RF signals! Compatible with Windows, Mac OS, Linux, and Android
- NESDR SMArt RTL-SDR v5 can be used for the reception of broadcast AM radio, broadcast FM radio, shortwave radio, CB radio, public security radio, trunked radio, air traffic control, ACARS (plane-ground communications), ADS-B (plane tracking), AIS (ship tracking), POCSAG (pagers), NOAA and GOES weather satellites (weather images), weather balloons, radiosondes, DAB radio, DVB-T video, Inmarsat, Iridium, and so much more!

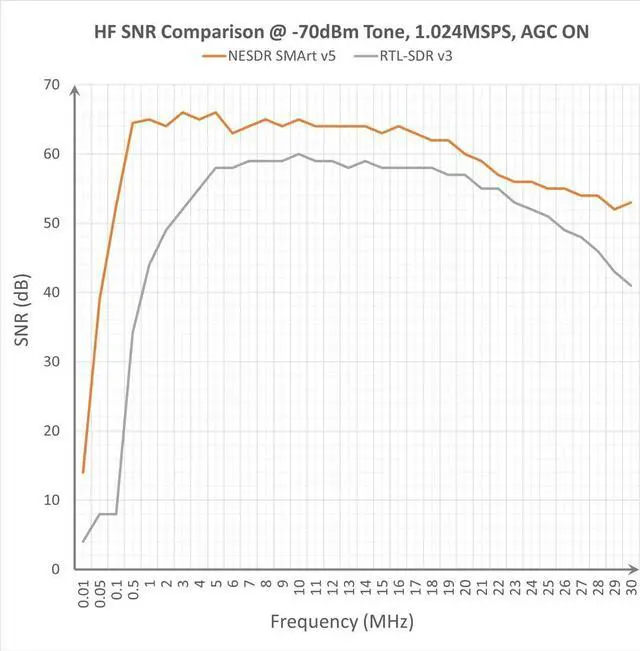

- The best-performing low-cost RTL-SDR available anywhere! Compared with RTL-SDR v3, HF SNR is improved by up to 15dB, VHF & UHF SNR is improved by up to 6dB, tuning accuracy is improved by an average of 4x, and the frequency range is expanded all the way down to 100kHz
- v5 has a frequency capability of 100kHz to 1.75GHz and up to 3.2MHz of instantaneous bandwidth. HF reception below 25MHz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This premium RTL-SDR was designed, developed and fabricated by Nooelec in the USA and Canada. It allows you to turn your computer, phone or tablet into a radio scanner/ham radio receiver that can receive nearly all RF signals! Compatible with Windows, Mac OS, Linux, and Android.

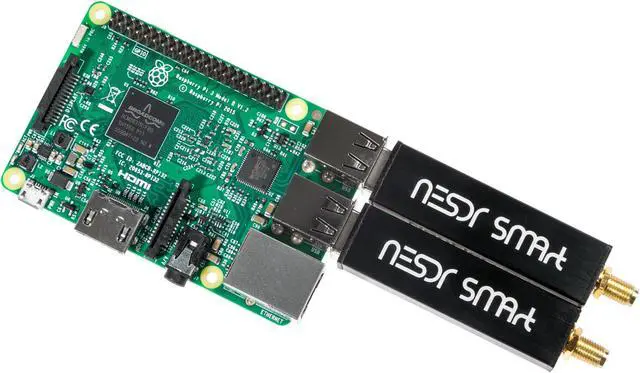

With a much narrower form factor than RTL-SDR v3, you can run multiple NESDR SMArt v5 side-by-side with any USB-compliant device, including tightly-spaced embedded devices like the Raspberry Pi
For full product specifications, please visit our website at nooelec. com, or
download the datasheet:
https: //www. nooelec. com/datasheets/100700

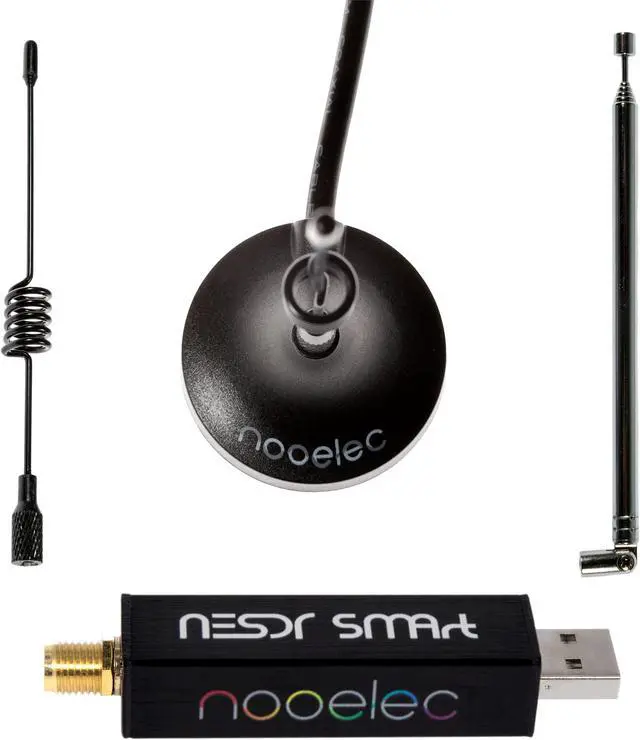

Included:

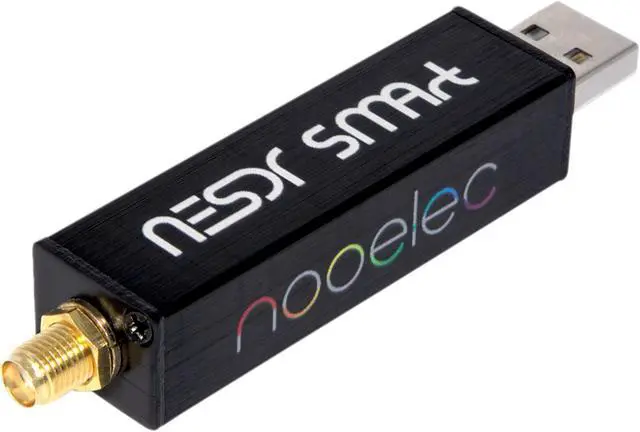

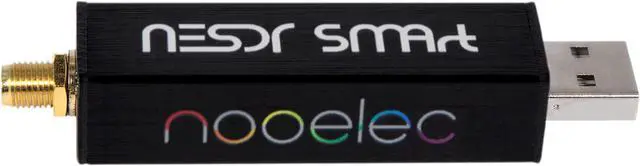

NESDR SMArt SDR in black brushed aluminum enclosure
Antenna base w/ 2m RG58 cable
Telescopic antenna mast (variable frequency)
433MHz (ISM) antenna mast (fixed frequency)
UHF antenna mast (fixed frequency)
SDR
RTL2832U Demodulator/USB interface IC
R820T2/R860 tuner IC
0.5PPM, ultra-low phase noise TCXO
RF-suitable voltage regulator
Shielded primary inductor
Integrated custom heatsink
Female SMA antenna input
High-quality black brushed aluminum enclosure
Antenna
Wide base with super-strong magnet within base for easy mounting
Low-loss RG58 feed cable
2m ( 6.5 ') cable, twice as long as most low cost SDR antennas
Male SMA connector for direct connection to the SDR or our other SMA-connected accessories
TCXO
Frequency stability: 0.5PPM (max)
Phase noise @1kHz offset: -138dBc/Hz (or better)
Phase noise @10kHz: -150dBc/Hz (or better)
Phase noise @100kHz: -152dBc/Hz (or better)
With a much narrower form factor than RTL-SDR v3, you can run multiple NESDR SMArt v5 side-by-side with any USB-compliant device, including tightly-spaced embedded devices like the Raspberry Pi
For full product specifications, please visit our website at nooelec. com, or
download the datasheet:
https: //www. nooelec. com/datasheets/100700
Included:
NESDR SMArt SDR in black brushed aluminum enclosure
Antenna base w/ 2m RG58 cable
Telescopic antenna mast (variable frequency)
433MHz (ISM) antenna mast (fixed frequency)
UHF antenna mast (fixed frequency)
SDR
Specifications
:RTL2832U Demodulator/USB interface IC
R820T2/R860 tuner IC
0.5PPM, ultra-low phase noise TCXO
RF-suitable voltage regulator
Shielded primary inductor
Integrated custom heatsink
Female SMA antenna input
High-quality black brushed aluminum enclosure
Antenna
Specifications
:Wide base with super-strong magnet within base for easy mounting
Low-loss RG58 feed cable
2m ( 6.5 ') cable, twice as long as most low cost SDR antennas
Male SMA connector for direct connection to the SDR or our other SMA-connected accessories
TCXO
Specifications
:Frequency stability: 0.5PPM (max)
Phase noise @1kHz offset: -138dBc/Hz (or better)
Phase noise @10kHz: -150dBc/Hz (or better)
Phase noise @100kHz: -152dBc/Hz (or better)
