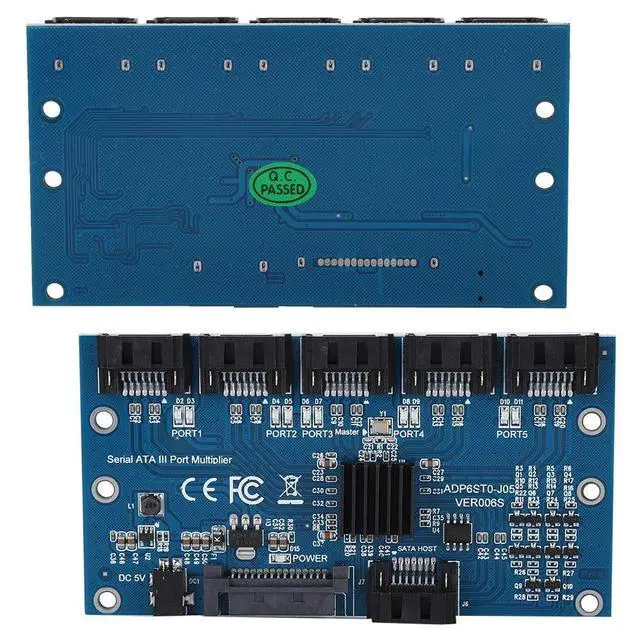

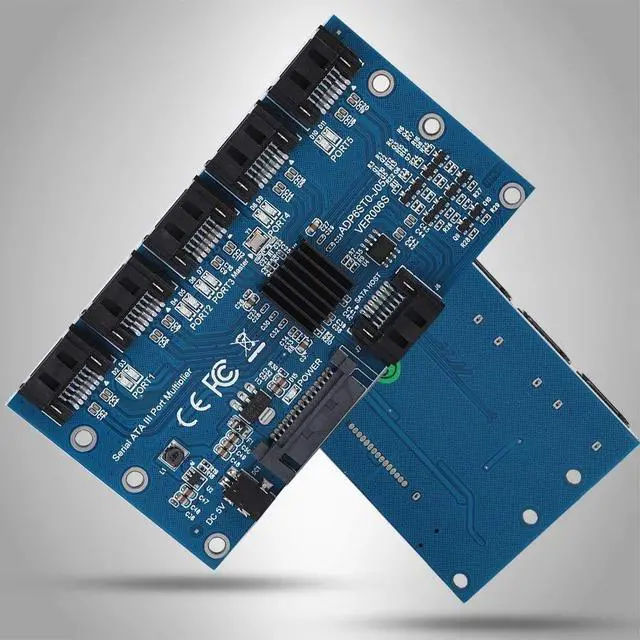

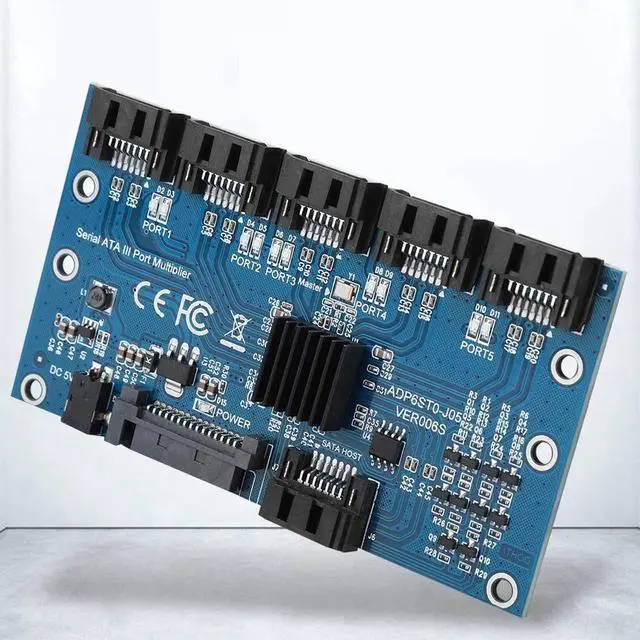

SATA3.0 1 to 5 Hard Disks Adapter Converter, SATA 3.0 Motherboard 6Gbps Interface Multiplier Expansion Card Support JMICRON JMB575

Features: 1. Support 6-port 6.0G bps SATA III interface. 2. SATA III PHY output swing control and automatic impedance calibration. 3. Support asynchronous recovery. 4. Support spread spectrum clock. 5. Support part/dormancy power saving mode. 6. Automatic speed up negotiation. 7. Support and Loopback mode. 8. Support staggered (Optional). 9. Support hot swap. 10. Support asynchronous inform. 11. Support Drive. 12. Support SWIT based on orders and Fi.
Compliance: 1. Compliant with Serial ATA Port Multiplier

Specifications

. 2. Compliant with Serial ATA Port Selector

Specifications

. 3. Compliant with ATA PHY Series Electrical

Specifications

Revision 1.04. Compliant with

Specifications

ATA Series High Speed Serialization.

Specifications

:
Product: SATA 3.0 1 to 5
Expansion CardModel: ADP6ST0-J05Product
Master: JMICRON
JMB575Product Package: Kraft
BoxProduct Interface: SATA 7PIN
System: For WINXP, Size: Approx. 10.2 x 5.5 x 0.7 cm/ 4.02 x 2.17 x 0.28 inPackage

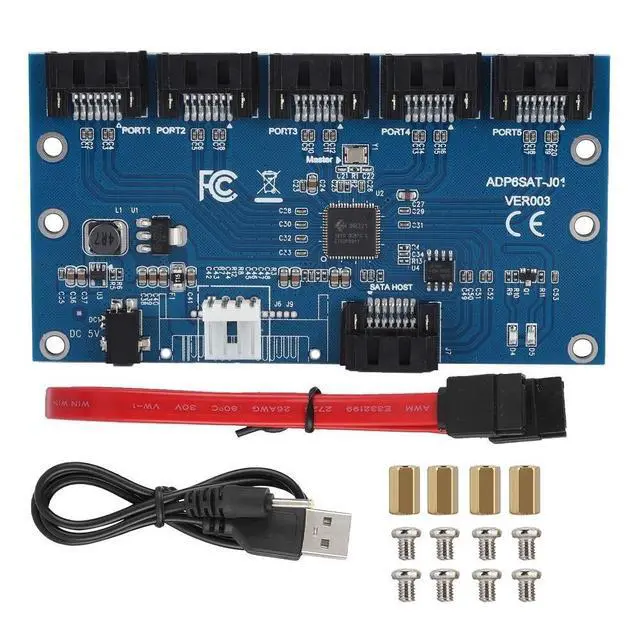

List: 1 x SATA 3.0 1 to 5 Expansion Card1 x USB-DC Power Cable1 x Connection Cable1 x
Screw BagNote: 1. This expansion card needs Motherboard or expansion card to support point (SATA Interface Multiplier) Funtion to identify 5 hard disks, common Motherboard SATA do not support such function. If not, only one hard disk can be identified. 2. Do plug in SATA or DC 2.5 power cable to expansion card. 3.
Cable Connection: Plug SATA input cable to Motherboard or expansion card to SATA.
