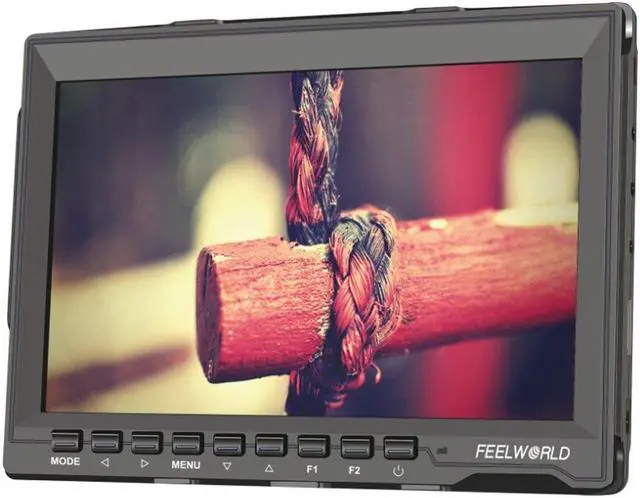

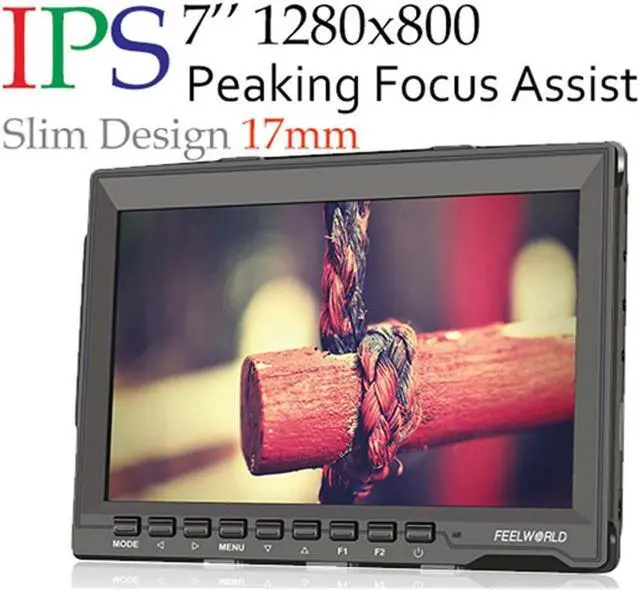

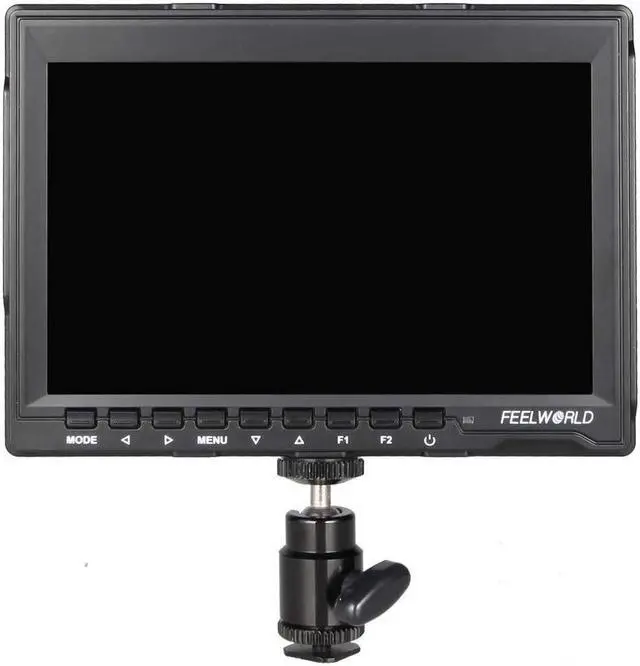

FEELWORLD FW759 7" IPS DSLR Camera Field Monitor 4K HDMI with Sunshade and HDMI Lock 1280x800
- Advanced Features: Peaking Focus Assist, False Color, zebras, Check Field, Zoom In (4X, 9X, 16X), Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User), Image Flip, Nine GridPixel to PixelCenter Marker, Safe Marker, Ratio Marker, Brightness Histogram, Embedded Audio Monitoring.
- FEELWORLD FW759 7" IPS screen, Ultra HD1280x800 resolution, Brightness: 400cd/m2, Contrast: 800:1, Aspect Ratio:16:10, Dot Pitch:0.11775(H) × 0.11775(V) mm,HDMI Support Format of 480i/576i/480p/576p/720p/1080i/1080p/4K UHD 3840×2160p/4096×2160p.
- Inputs: HDMI, AV, Wire remote OSD controller; Outputs: Built-in Speaker, 3.5mm Audio.

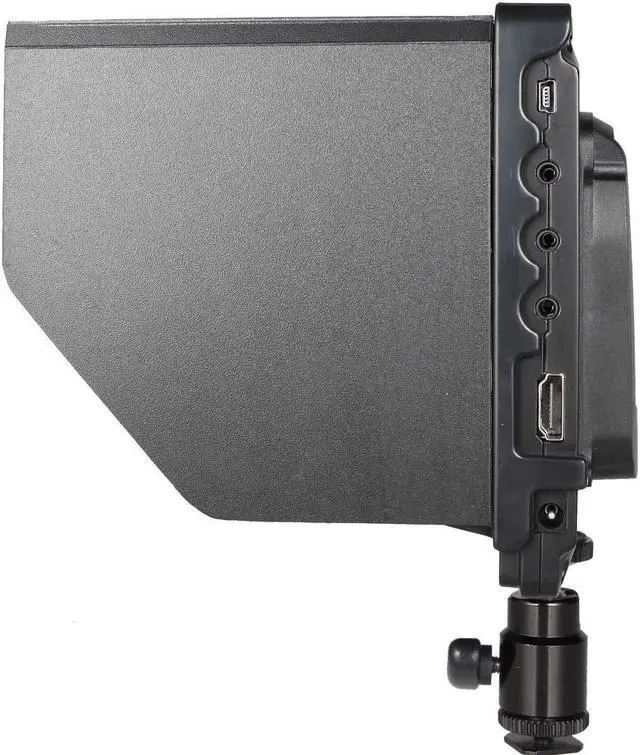

- Ultra-thin Lightweight Design. Featured with 1/4 screw holes on bottom and side. Quite convenient for attached to the rig, stabilizers and other staffs.
- Package Include: 1× FW759 Monitor, 1× Mini HDMI Cable, 1× Sunshade, 1× Hot Shoe Mount, 1× HDMI Plug Lock, 1× Operation Manual. Note: it does not come with either a battery or power supply.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: FW759
Screen Size: 7" IPS
Resolution: 1280×800 pixels
Dot pitch: 0.11775 (H) × 0.11775 (V) mm
Aspect Ratio: 16:10
Brightness: 400cd/m²
Contrast Ratio: 800:1
Backlight
LED
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
Input
1 X HDMI
1 X AV
1 X Wire remote OSD controller
Audio
Audio Out: Stereo Headphone, Speaker
HDMI Support Format
480i/576i/480p/576p
1080i (60/ 59.94 /50)
720p (60/ 59.94 /50/30/29/25/24/ 23.98 )
1080p (60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF)
4K UHD 3840×2160p (30/ 29.97 /25/24/ 23.98H z), 4096×2160p (24Hz)
General
Input Voltage: DC 6.535V
Power Consumption: 5W
Power Connector: DC
Battery Plate: F970 (Standard); D28S, LP-E6 (Optional)
Working Temperature: -20°C~50°C
Storage Temperature: -30°C~60°C
Install Way: 1/4"-20 Thread Socket (1 bottom side)
Unit Size: 176L×130H×17D (mm)
Unit Weight: 300g
Advanced Features
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Anamorphic Mode ( 1.3 x, 2.0 x, 2.0 x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35: 1)
* Ratio marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85: 1, 2.35: 1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All
* U/D Zoom
* L/R Zoom
Screen Size: 7" IPS
Resolution: 1280×800 pixels
Dot pitch: 0.11775 (H) × 0.11775 (V) mm
Aspect Ratio: 16:10
Brightness: 400cd/m²
Contrast Ratio: 800:1
Backlight
LED
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
Input
1 X HDMI
1 X AV
1 X Wire remote OSD controller
Audio
Audio Out: Stereo Headphone, Speaker
HDMI Support Format
480i/576i/480p/576p
1080i (60/ 59.94 /50)
720p (60/ 59.94 /50/30/29/25/24/ 23.98 )
1080p (60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF)
4K UHD 3840×2160p (30/ 29.97 /25/24/ 23.98H z), 4096×2160p (24Hz)
General
Input Voltage: DC 6.535V
Power Consumption: 5W
Power Connector: DC
Battery Plate: F970 (Standard); D28S, LP-E6 (Optional)
Working Temperature: -20°C~50°C
Storage Temperature: -30°C~60°C
Install Way: 1/4"-20 Thread Socket (1 bottom side)
Unit Size: 176L×130H×17D (mm)
Unit Weight: 300g
Advanced Features
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Anamorphic Mode ( 1.3 x, 2.0 x, 2.0 x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35: 1)
* Ratio marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85: 1, 2.35: 1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All
* U/D Zoom
* L/R Zoom
