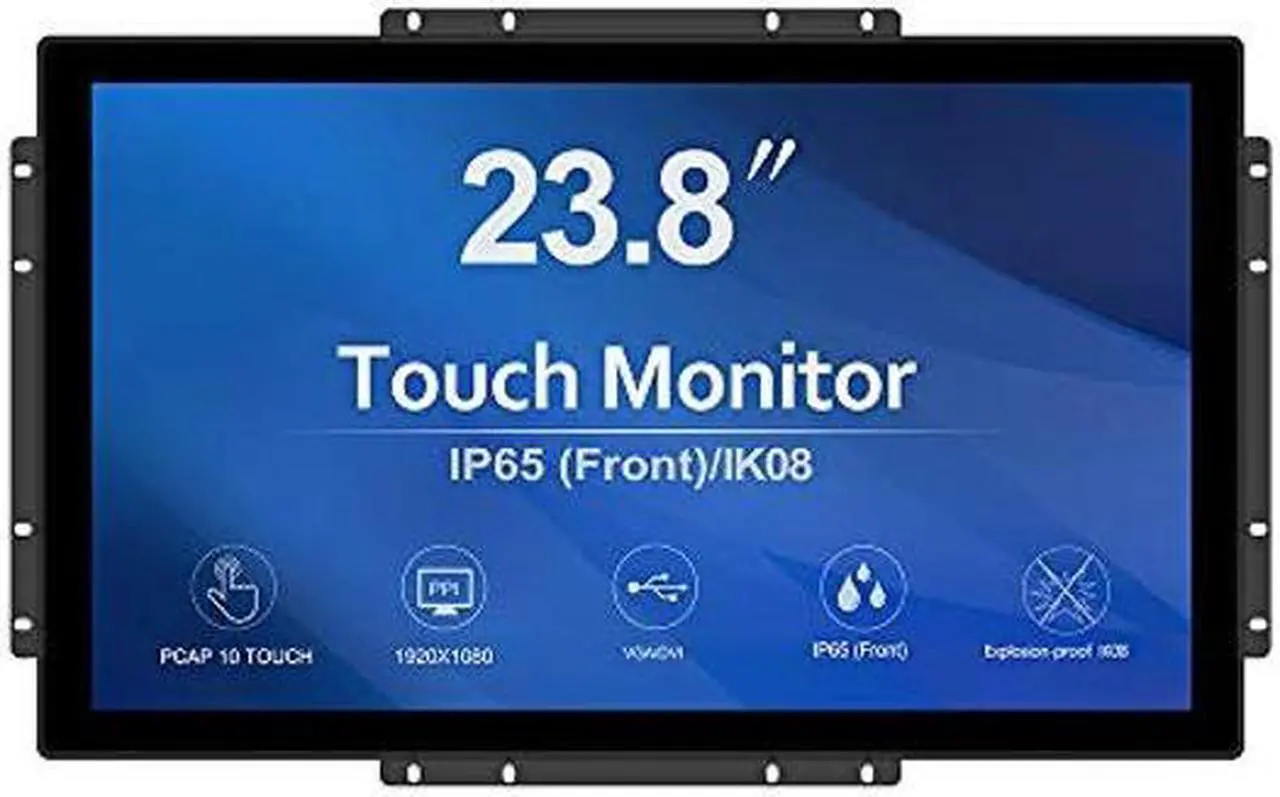

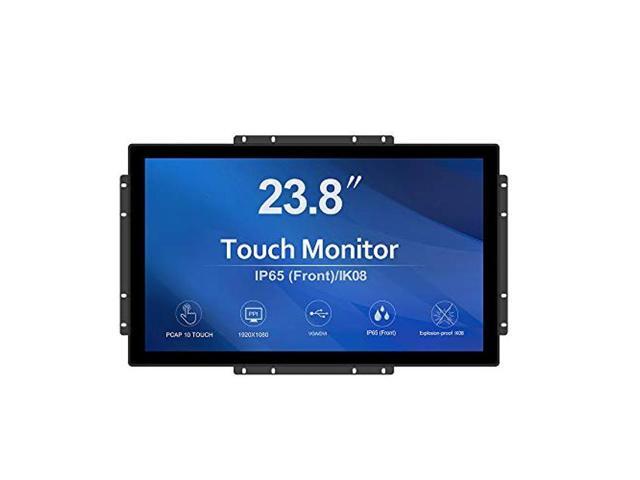

GreenTouch 23.8 Inch 10 Points Open Frame PCAP Touchscreen Monitor - Industrial Touch Display -16:9 -TFT LCD
- TOUCH READY -GreenTouch touch solution adopts the latest projected capacitive solution with (G+G) 10-point touch ,it delivers great optical clarity and touch durability. 3mm thickness tempered cover glass provide front IK08 vandal-proof degree .
- FEATUREED ELMENTS -The touch screen is sealed to prevent the bad influence from dirt, dust and liquid , can meet the front IP65 water-resistant requirement.

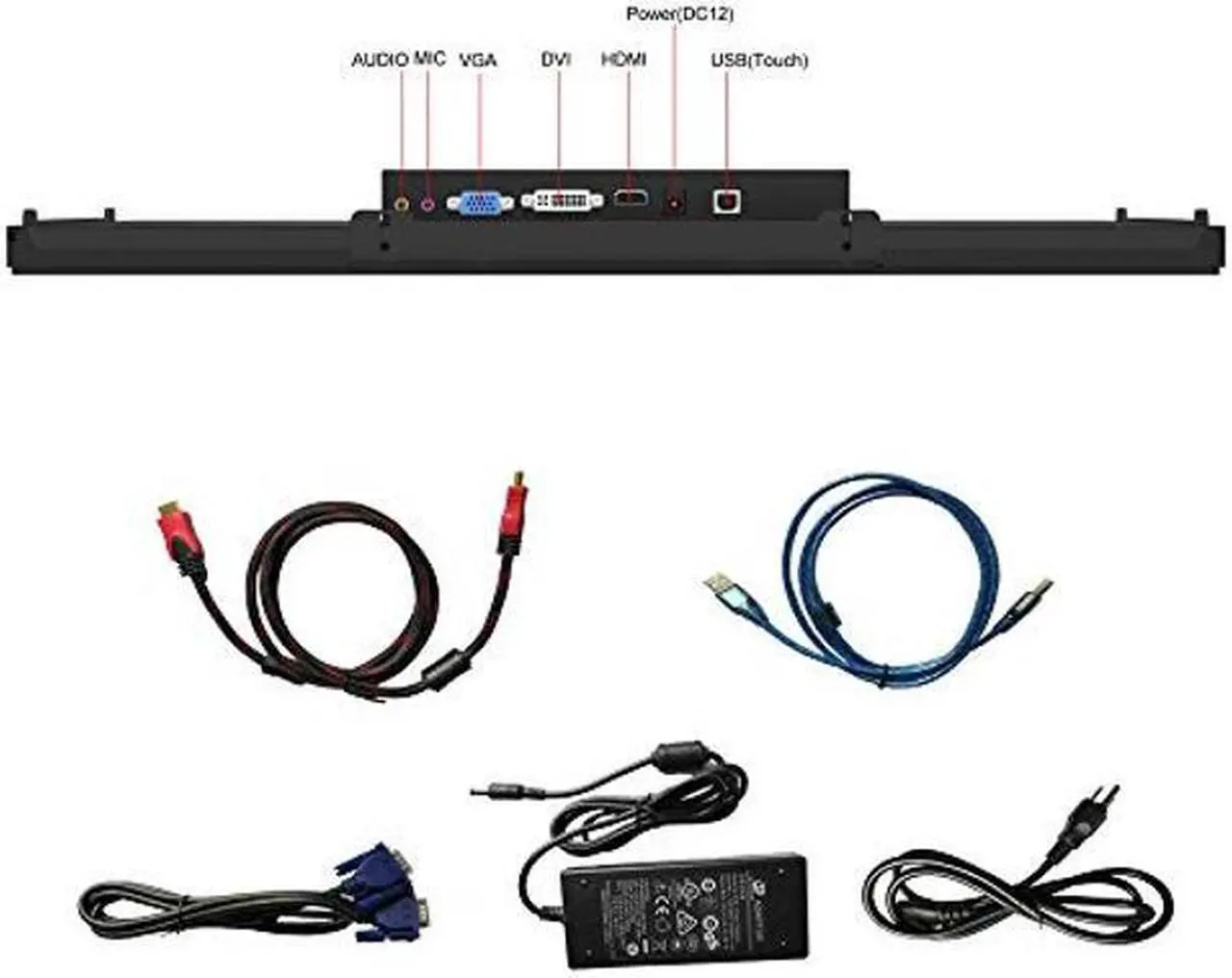

- RICH INTERFACES - Coming with HDMI , VGA , DVI and Audio interfaces to meet different needs of various professional display application.
- COMMERCIAL GRADE - The GreenTouch open frame touchscreen monitor delivers the quality and reliability GreenTouch is known for. We design, build and are responsible for the complete solution with touch integrated from the start.
- STABILITY - Using our own touchscreens combine with our technology , everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliabili
+
+
Overview
Specs
Reviews

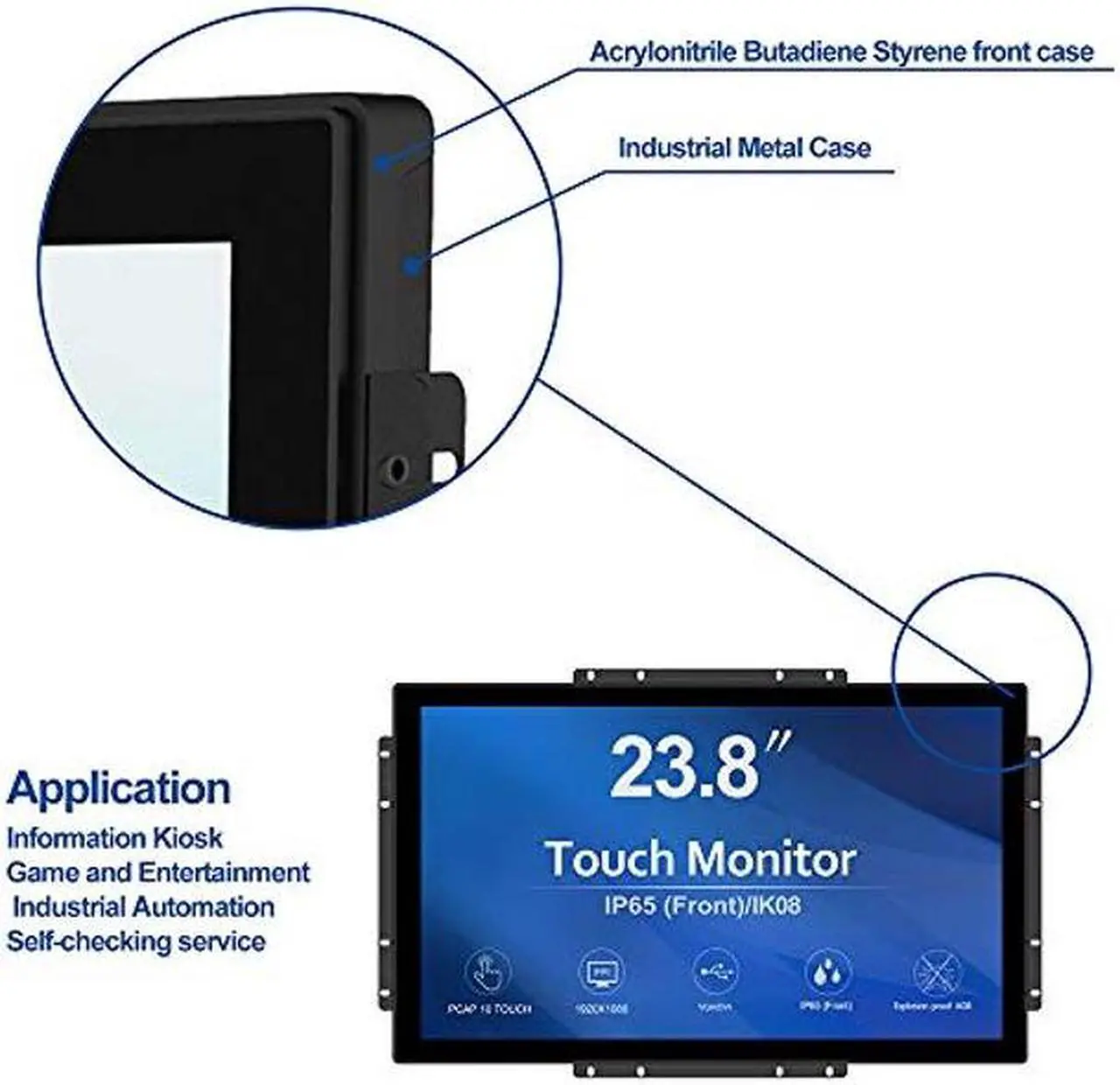

OVER VIEWING: GreenTouch's open frame touchscreen monitor uses the most advanced LED backlight technology which can save energy and power while running and has a thick and sturdy design. The open frame touchscreen monitor instantly captures and draws the attention of users, suitable for self-service kiosks, entertainment venues, retail self-service and industrial automation workshops.
SPECIFICATION:
Size: 23.8 inch
The display size: 586mm (W) x356mm (H), Thickness: 47 mm
Color: Black
Display type: Active matrix TFT LCD, LED backlight
Resolution: 1920 X 1080 @ 60HZ
Display colors: 16.7M
Brightness: 250cd/m2
Contrast ratio:
1000: 1
Input video formats: VGA + DVI +
HDMI Power: External DC, input voltage
DC12V Response time: 5ms
View angel (from center):
L/R: 89/89;
U/D: 89/89 (Typ.
)(CR>=10) Sweep frequenc:
Horizontal: 31.5 - 60.2 kHz; vertical: 56.3 - 75 Hz
Power consumption: Display
only: 20W(Typ. )
OSD: Digital OSD

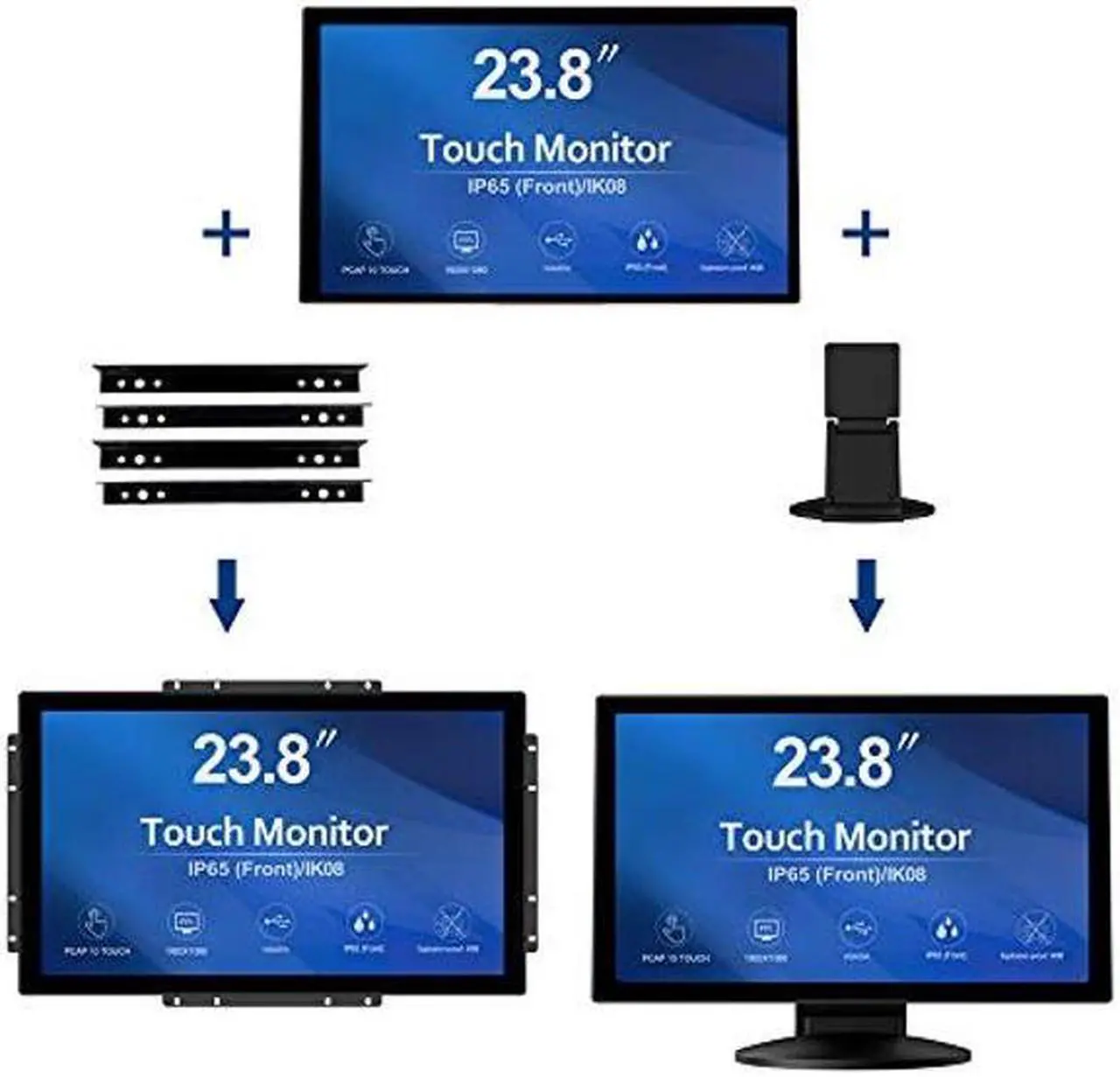

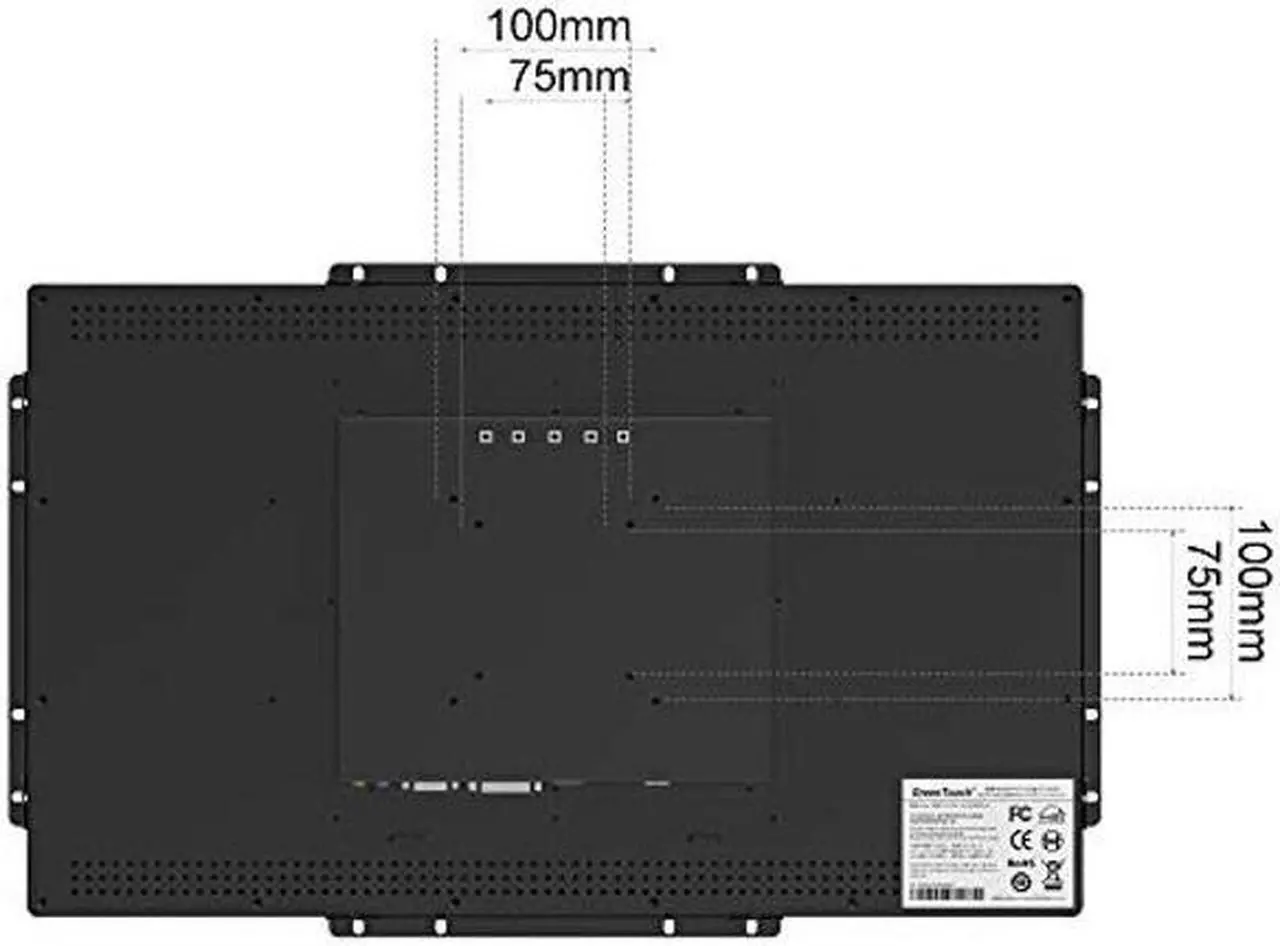

Mounting options: 100mm or 75mm VESA mounting, open bracket mounting
Certification: UL, cUL (Recognized), FCC, CE, CB, RoHS
ENVIRONMENT: Operation
temperature: 0degC to 40degC
Storage temperature: -20degC to 60degC
Operating Humidity: 20% to 80% RH (no condensation)
Storage Humidity: 10% to 90%
RH Warranty: 1 year
NOTE: If there is any question, please contact us!
SPECIFICATION:
Size: 23.8 inch
The display size: 586mm (W) x356mm (H), Thickness: 47 mm
Color: Black
Display type: Active matrix TFT LCD, LED backlight
Resolution: 1920 X 1080 @ 60HZ
Display colors: 16.7M
Brightness: 250cd/m2
Contrast ratio:
1000: 1
Input video formats: VGA + DVI +
HDMI Power: External DC, input voltage
DC12V Response time: 5ms
View angel (from center):
L/R: 89/89;
U/D: 89/89 (Typ.
)(CR>=10) Sweep frequenc:
Horizontal: 31.5 - 60.2 kHz; vertical: 56.3 - 75 Hz
Power consumption: Display
only: 20W(Typ. )
OSD: Digital OSD
Mounting options: 100mm or 75mm VESA mounting, open bracket mounting
Certification: UL, cUL (Recognized), FCC, CE, CB, RoHS
ENVIRONMENT: Operation
temperature: 0degC to 40degC
Storage temperature: -20degC to 60degC
Operating Humidity: 20% to 80% RH (no condensation)
Storage Humidity: 10% to 90%
RH Warranty: 1 year
NOTE: If there is any question, please contact us!
