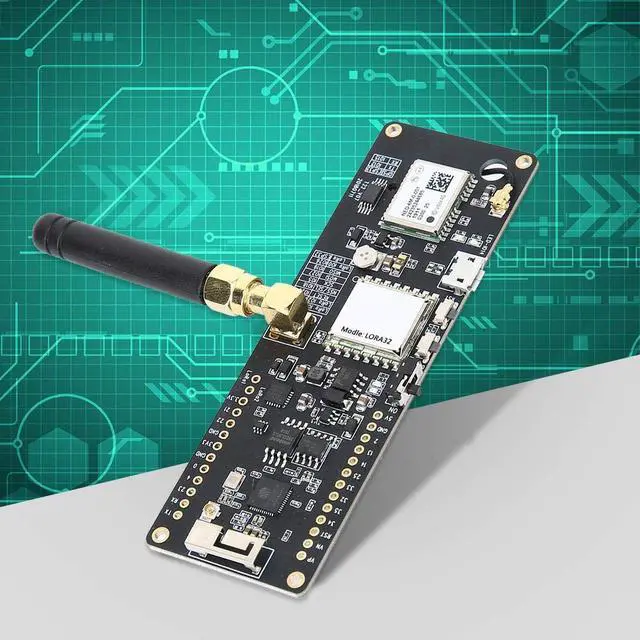

ERP32 Module Board, for T Beam ESP32 LoRa 433Mhz REV1 GPS Module Board with Battery Base
- PCB ModuleThe REV1 module is the latest ESP32 version,support Internet access and Bluetooth connection.
- Modulation ModeThe board has SK, GFSK, MSK, GMSK, LoRa TM, OOK,highly configurable data packet handler that saves configuration parameter data EEPROM Down.

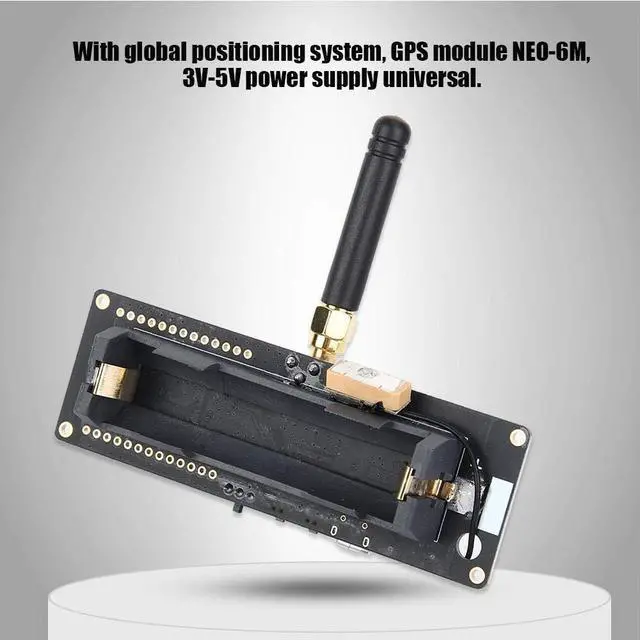

- GPS NEO-6M ModuleThe 433MHz module built-in global positioning system, GPS module NEO-6M, 3V-5V power supply universal.

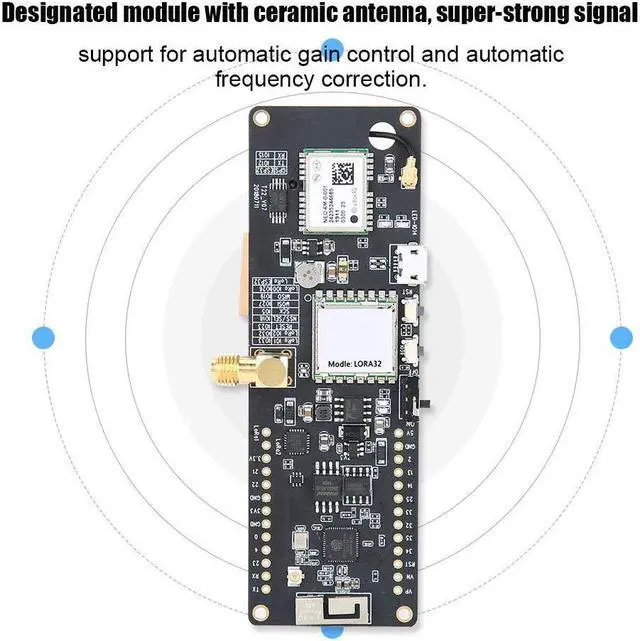

- With Ceramic AntennaThe board has receive antenna, super-strong , support for automatic gain control and automatic frequency correction.
- Multi-FunctionDigital RSSI function, RF wake-up function, 4MB flash memory, low voltage detection and temperature sensor, fast wake-up and frequency hopping, LED indicator, battery with data backup.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Material: PCB
Latest ESP32 version: REV1
Working Voltage: 1.8 - 3.7V
Acceptable Current: 10-14mA
Emission Current:
120mA + 20dBm
90 mA + 17dBm
29 mA + 13dBm
Working Frequency: 433MHz
Transmit Power: +20dBm
Receive Sensitivity:
-139dBm LoRa and 62.5K hz&SF = 12&146bps
-136dBm LoRa and 125Khz&SF = 12&293bps
-118dBm LoRa&125Khz&SF = 6&9380bps
-123dBm FSK&5Khz& 1.2K bps
Frequency Error: ±15KHz
FIFO Space: 64Byte
Data Rate:
1.2K -300Kbps/FSK
0.018K - 37.5K bps/LoRa
Modulation Mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
Interface Form: SPI
Sleep Current:
0.2 uA/SLEEP
1.5 uA/IDLE
Working Temperature: -40-+85
Battery Model: 1x18650 (not include)
Default Baud Rate: 9600
USB
CP2104-GMR
For SoftRF V 4.0

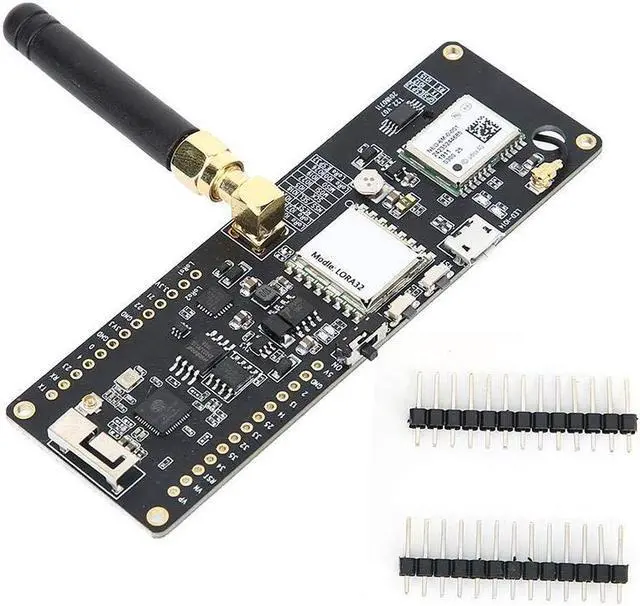

Package List:
1 x Module
1 x Antenna
2 x Pin
Material: PCB
Latest ESP32 version: REV1
Working Voltage: 1.8 - 3.7V
Acceptable Current: 10-14mA
Emission Current:
120mA + 20dBm
90 mA + 17dBm
29 mA + 13dBm
Working Frequency: 433MHz
Transmit Power: +20dBm
Receive Sensitivity:
-139dBm LoRa and 62.5K hz&SF = 12&146bps
-136dBm LoRa and 125Khz&SF = 12&293bps
-118dBm LoRa&125Khz&SF = 6&9380bps
-123dBm FSK&5Khz& 1.2K bps
Frequency Error: ±15KHz
FIFO Space: 64Byte
Data Rate:
1.2K -300Kbps/FSK
0.018K - 37.5K bps/LoRa
Modulation Mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
Interface Form: SPI
Sleep Current:
0.2 uA/SLEEP
1.5 uA/IDLE
Working Temperature: -40-+85
Battery Model: 1x18650 (not include)
Default Baud Rate: 9600
USB
CP2104-GMR
For SoftRF V 4.0
Package List:
1 x Module
1 x Antenna
2 x Pin
