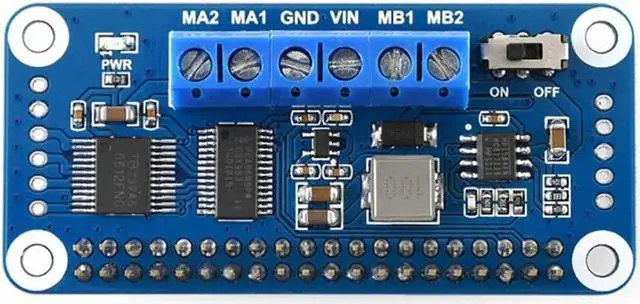

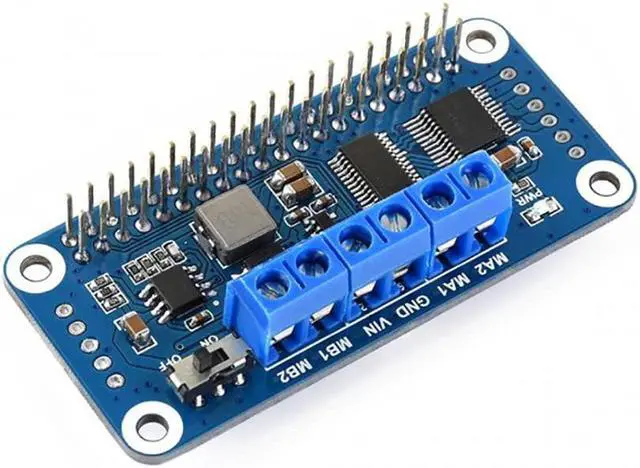

Coolwell Raspberry Pi Motor Driver HAT Onboard Driver TB6612FNG I2C Interface for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH 2 W Stackable Up to 32 This Modules
- The motor driver board with standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

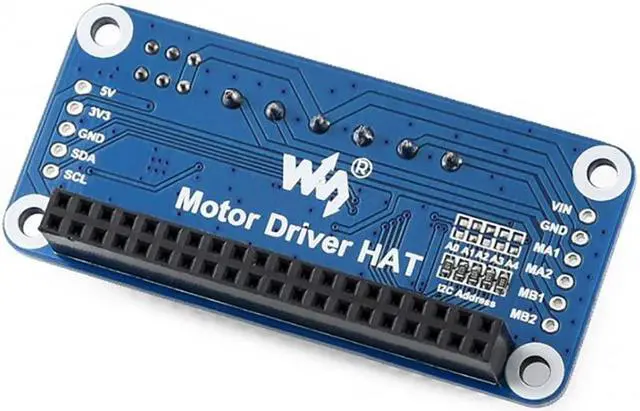

- The motor driver shield is I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules
- The motor driver module with onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
- The Raspberry Pi motor shield with onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
- Comes with development resources and manual (examples in BCM2835, wiringPi, and python), feel free to contact us if you need technical support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules
Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
Reserved I2C control pins, allows to work with other control boards
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
Power supply: 6V~12V (VIN terminal)
Logic voltage: 3.3V
PWM driver: PCA9685
Control interface: I2C
Motor driver: TB6612FNG
Dimension: 65mm x 30mm
Mounting hole size: 3.0 mm
Package include

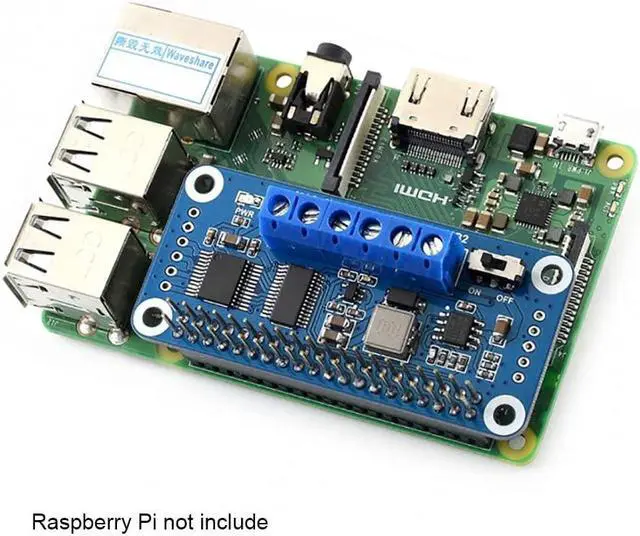

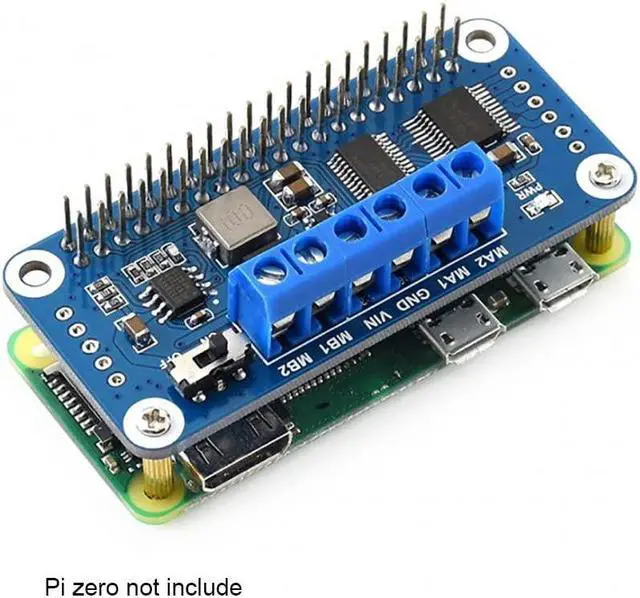

Note: Raspberry Pi in the photos is NOT included.
1. Motor Driver HAT x1
2. RPi screws pack (2pcs) x1
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules
Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
Reserved I2C control pins, allows to work with other control boards
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
Specifications
Power supply: 6V~12V (VIN terminal)
Logic voltage: 3.3V
PWM driver: PCA9685
Control interface: I2C
Motor driver: TB6612FNG
Dimension: 65mm x 30mm
Mounting hole size: 3.0 mm
Package include
Note: Raspberry Pi in the photos is NOT included.
1. Motor Driver HAT x1
2. RPi screws pack (2pcs) x1
