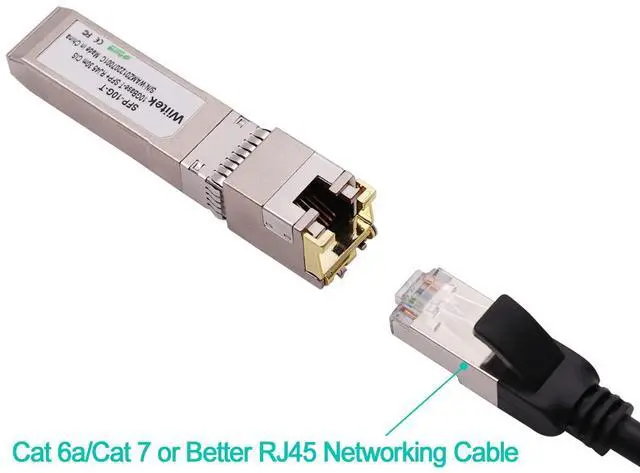

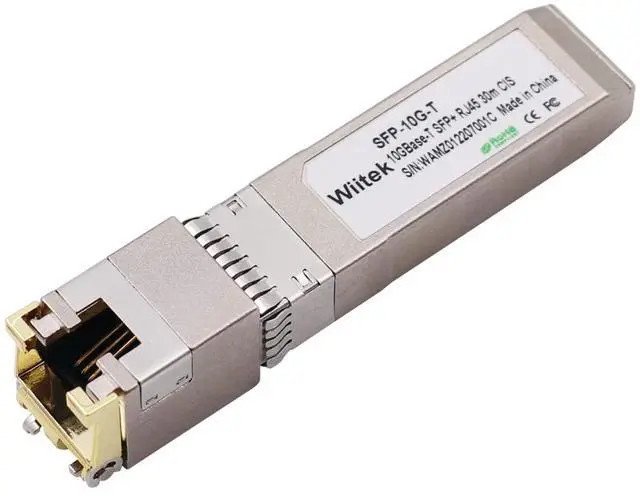

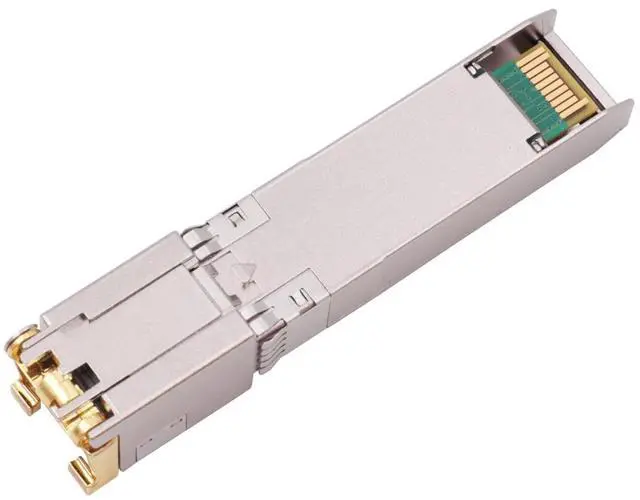

Wiitek 10Gb SFP+ to RJ45 Modules, 1.25G/2.5G/5G/10GBase-T Ethernet to SFP+ Transceiver Compatible for Cisco SFP-10G-T-X, Ubiquiti, Netgear AXM766, Mikrotik S+RJ10, Unifi (Cat 6a/7 or Better, 30-Meter)
- WIDE COMPATIBILITY: This SFP+ to RJ45 10Gb ethernet adapter Transceiver is 100% compatible for Cisco SFP-10G-T-X, Ubiquiti Unifi UF-RJ45-10G /uacc-cm-rj45-mg, D-link, TP-LINK , Netgear AXM766, Mikrotik S+RJ10 and Other Open Switches, connecting 10g ethernet Switch, 10g pcie networking card, 10g sfp+ media converter;
- CABLE DISTANCE: This 10GBase-T SFP to RJ45 Module supports linking up to 30m using Cat 6a/7 or Better Cable , compatible working with 5GBase-T, 2.5GBase-T using Cat 6a/7, and 1000Base-T using Cat 5e cable or better( should insert to 10G SFP+ Ports);
- PROTOCOLS: This 10G SFP to RJ45 adpter/converter is SFF-8431 and SFF-8432 MSA compliant, IEEE 802.3az Compliant; Each Module is individually 100% tested on the 10G SFP+ to ethernet adapter/ 10g sfp+ switch before delivery;
- HOT SWAPPABLE:Hot-swappable transceivers that plugs into an 10Gb SFP+ port,plug and play,no need to power down if installing or replacing;Less than 2.5W Power Consumption;RoHS compliant (lea
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

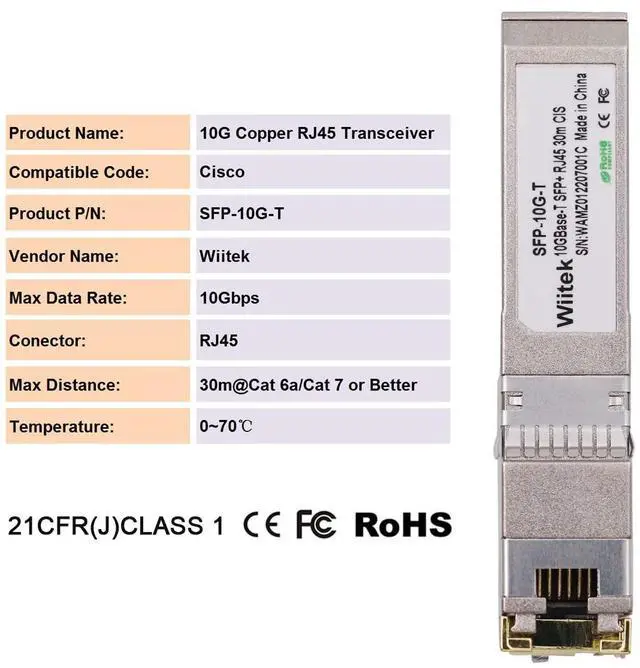

10GBase-T SFP+ 10 Gigabit RJ45 Copper SFP Transceiver Link up to 30-Meter
Features
Supports Links up to 30m using Cat 6A/7 or Better Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3 az and 802.3 an Compliant
IEEE 802.3 bz for 5G& 2.5G BASE-T
Hot-pluggable SFP+ footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+ 3.3V single power supply
Low Power Consumption ( 2.5W MAX @ 30m)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
Auto-negotiates with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C

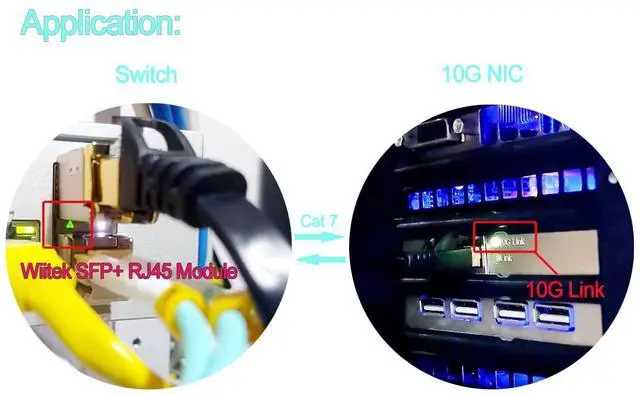

Applications
10 Gigabit Ethernet over Cat 6A cable
5 Gigabit Ethernet over Cat 6A cable
2.5 Gigabit Ethernet over Cat 6A cable
1.25 Gigabit Ethernet over Cat 5e cable
Features
Supports Links up to 30m using Cat 6A/7 or Better Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3 az and 802.3 an Compliant
IEEE 802.3 bz for 5G& 2.5G BASE-T
Hot-pluggable SFP+ footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+ 3.3V single power supply
Low Power Consumption ( 2.5W MAX @ 30m)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
Auto-negotiates with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C
Applications
10 Gigabit Ethernet over Cat 6A cable
5 Gigabit Ethernet over Cat 6A cable
2.5 Gigabit Ethernet over Cat 6A cable
1.25 Gigabit Ethernet over Cat 5e cable
