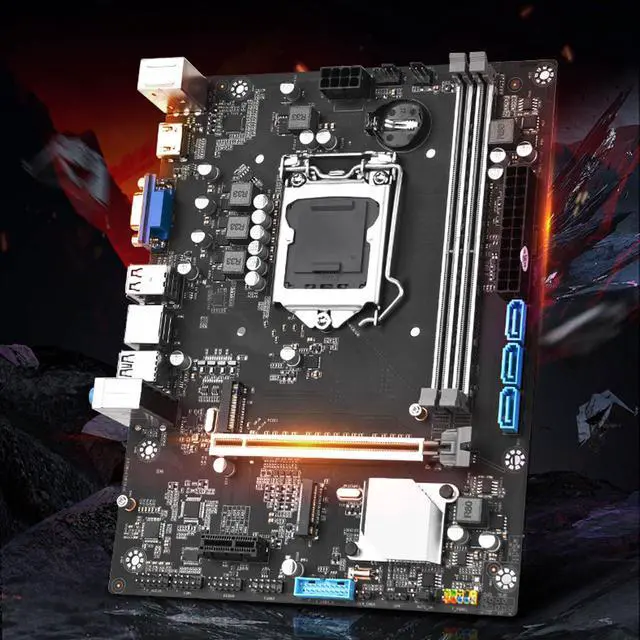

H311M K Computer Motherboard, LGA 1151 Channel DDR4 M ATX Gaming Mainboard for Core 6/7/8/9 Gen CPU i3/i5/i7, VGA, SATA3.0, 1xPCIE3.0 x16 Slot, M.2 2280 NVMe
- LGA 1151 CPU Slot: This desktop desktop motherboard support for Core 6/7/8/9 Gen CPU i3/i5/i7 series, with Gigabit network card, providing smoothing network connection.
- Channel DDR4: This LGA 1151 motherboard features 2 DDR4 memory slots and supports 1866/2133/2400/2666MHz with a maximum capacity of 32GB.
- HD and VGA output: This DDR4 motherboard is equipped with VGA and HD multimedia interface output, supporting high definition video output, bringing high definition visual experience.
- 3 Phase Power: This computer motherboard adopts 3 phase power supply, all solidstate capacitor and 24+8Pin power supply interface to ensure stable board performance.
- Material: This M ATX motherboard adopts 4 layer printed circuit board material which offers faster operating speeds while being more sturdy and less susceptible to damage. All solidstate capacitors ensure sufficient power supply to ensure stable CPU .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
Specification:
Item Type: LGA 1151 Motherboard
Material: Printed Circuit Board, Metal
Inbuilt Battery: CR2032 x 1 240mAh
CPU: LGA1151 for Intel 6 and 9 Series CPU
Chip: for Intel H110
Display: 1 x HD Multimedia Interface, Support 4K/30Hz, 1 x VGA
Memory: 2 x UDIMM DDR4 1866/2133/2400/2666MHz (CPU Based), Channel, Up To 32GB
Storage: 3 x SATA 3.0 Slot, 1 x M. 2 2280 NVMe x 4 Slot, 1 x M. 2 2280 NGFF SATA SSD Slot
USB Interface: 2 x USB 2.0 Interface, 2 x USB 3.0 Interface
Network Port: 1 x RTL8111H, Gigabit Network Port
Audio: ALC897 7.1 Channel Chip
BIOS: AMI EFI BIOS

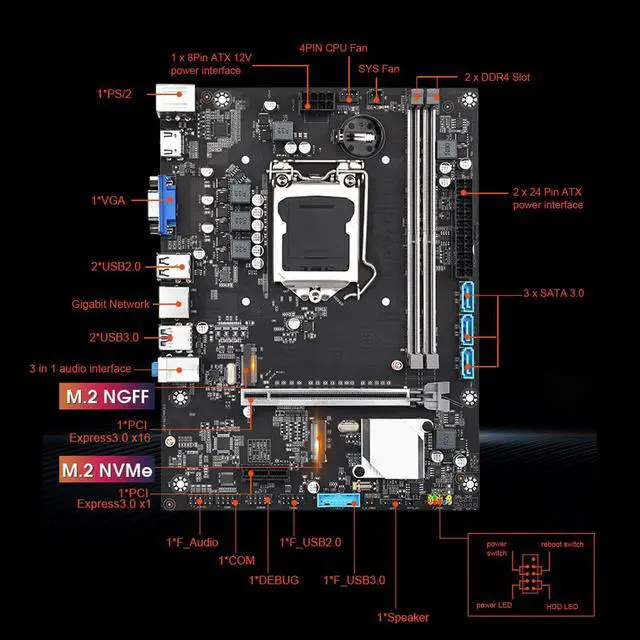

On Board Interface: 1 x 4pin CPU FAN Pin, 1 x SYS FAN Pin, 1 Front Audio Pin, 1 x USB 3.0 Pin, 1 x USB 2.0 Pin, 1 x RS232 COM Pin, 1 x Frontcontrol Panel Pin, 1 x Speaker Pin, 1 x 24pin ATX Power Supply Interface, 1 x 8pin 12V Power Supply Interface
Expansion Slot: 1 x PCIE 3.0 x16 Slot, 1 x PCIE 3.0 x1 Slot
How to Use:
install and use

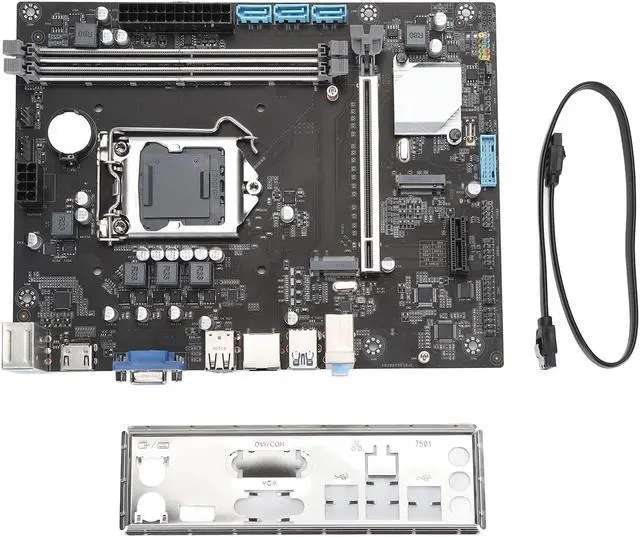

PackageList:
1 xLGA 1151 Motherboard
1 x Metal Plate
1 x Connecting Wire
Specification:
Item Type: LGA 1151 Motherboard
Material: Printed Circuit Board, Metal
Inbuilt Battery: CR2032 x 1 240mAh
CPU: LGA1151 for Intel 6 and 9 Series CPU
Chip: for Intel H110
Display: 1 x HD Multimedia Interface, Support 4K/30Hz, 1 x VGA
Memory: 2 x UDIMM DDR4 1866/2133/2400/2666MHz (CPU Based), Channel, Up To 32GB
Storage: 3 x SATA 3.0 Slot, 1 x M. 2 2280 NVMe x 4 Slot, 1 x M. 2 2280 NGFF SATA SSD Slot
USB Interface: 2 x USB 2.0 Interface, 2 x USB 3.0 Interface
Network Port: 1 x RTL8111H, Gigabit Network Port
Audio: ALC897 7.1 Channel Chip
BIOS: AMI EFI BIOS
On Board Interface: 1 x 4pin CPU FAN Pin, 1 x SYS FAN Pin, 1 Front Audio Pin, 1 x USB 3.0 Pin, 1 x USB 2.0 Pin, 1 x RS232 COM Pin, 1 x Frontcontrol Panel Pin, 1 x Speaker Pin, 1 x 24pin ATX Power Supply Interface, 1 x 8pin 12V Power Supply Interface
Expansion Slot: 1 x PCIE 3.0 x16 Slot, 1 x PCIE 3.0 x1 Slot
How to Use:
install and use
PackageList:
1 xLGA 1151 Motherboard
1 x Metal Plate
1 x Connecting Wire
