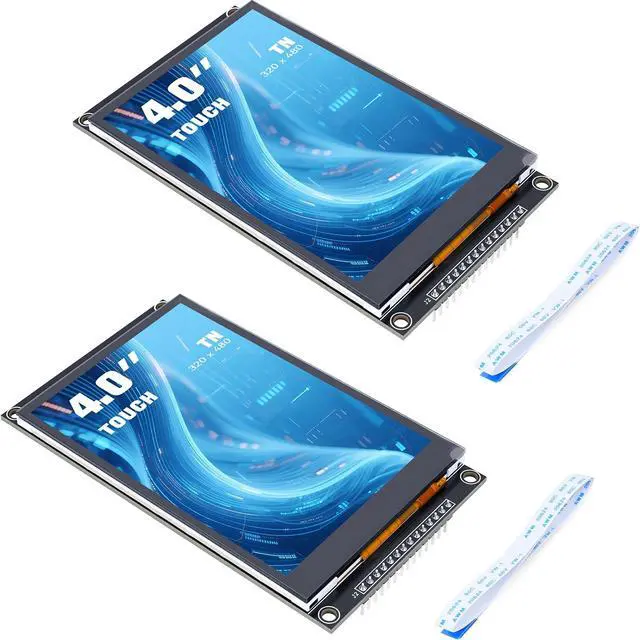

Ransanx 2PCS LCD Display 4.0 Inch 320x480 TN Capacitive Touch Screen Esp32 Display Module SPI Serial ST7796S Driver for Ar duino R3/Mega2560 (Black)
- LCD display parameters: 4.0-inch TN capacitive touch screen, resolution 320x480, 65K colors, rich display colors, brightness 300 (cd/m²), display interface: 4-Line SPI
- ESP32 display module: using ST7796S driver, onboard level conversion circuit, compatible with 5V and 3.3V MCU; using four-wire SPI serial bus, saving I/O pins
- Advantages: Newly upgraded to capacitive touch for Ar duino screen module. Compared with resistive screen, it is more convenient to use and more accurate to touch

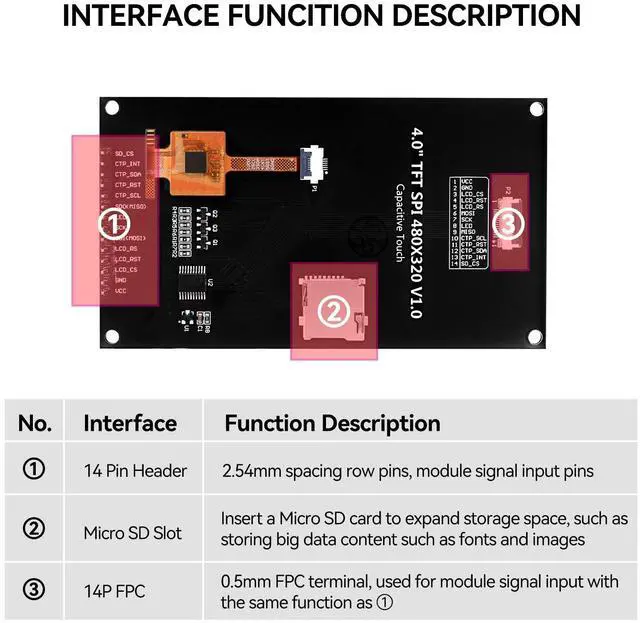

- Humanized design: The module input supports 2.54-pin interface and FPC expansion interface, equipped with Micro TF card slot for easy storage and expansion; provides rich example learning programs (ESP32/STM32/Ar duino R3 & Mage2560/C51/CH32), provides underlying driver technology support, online update information, and supports long-term stable work
- After-sales service: If you have any after-sales questions about the product, please contact us, we are online 24 hours a day, looking
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

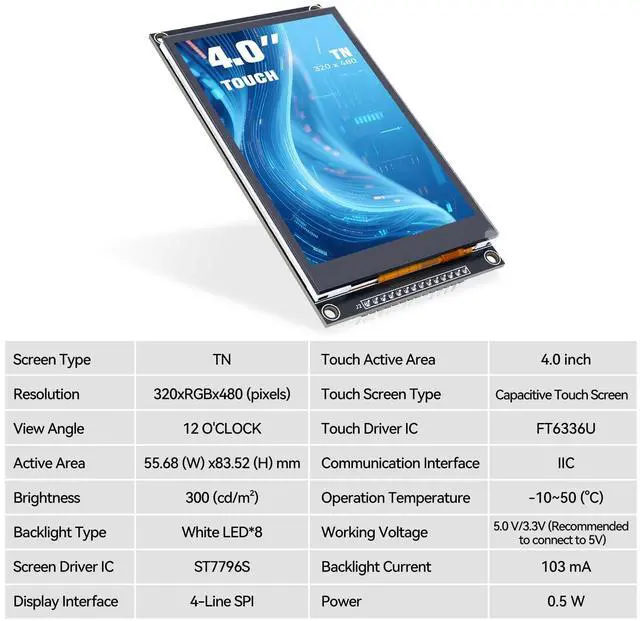

LCD Parameters:
Screen Size: 4.0 inch
Screen Type: TN
Resolution: 320xRGBx480 (pixels)
Active Area (AA area): 55.68 (W) x 83.52 (H) (mm)
Number of Colors (Max): 16.7M
Driver IC: ST7796S
Display Interface: 4-Line SPI
Pixel Size: 0.174 (H) x 0.174 (mm)
View Angle: 12 O'CLOCK
Brightness (TYP): 300(cd/m2)
Backlight Type: White LED*8
Operation Temperature: -10~50()
Storage Temperature: -20~60()
Electrical Parameters
Working Voltage 5.0 V/ 3.3V (Recommended to connect to 5V)
Backlight Current103 mA
Power 0.5 W
Touch Screen Parameters:
Touch Active Area: 4.0 inch
Touch Screen Type: Capacitive Touch Screen
Touch Screen Resolution: 320x480 (pixels)
Driver IC: FT6336U
Touch Screen Visual Area: 55.98 (W) x 83.82 (H) (mm)
Communication Interface IIC
Operation Temperature: -20~70()
Storage Temperature: -30~80()
Size Parameters:
TFT Outline Size: 60.88 ± 0.2 (W) x 94.57 ± 0.2 (H) x 2.5 ± 0.1 (D) (mm) (Excluding cables and adhesive backing)
Touch Screen Outline Size: 60.88 ± 0.1 (W) x 94.57 ± 0.1 (H) x 1.35 (D) (mm) (Excluding cables and adhesive backing)
Module Outline Size: Have
Touch Screen: 60.88 (W) x 108.0 (H) x 14.80 (D) (mm) (including Pin Header)
Other Parameters

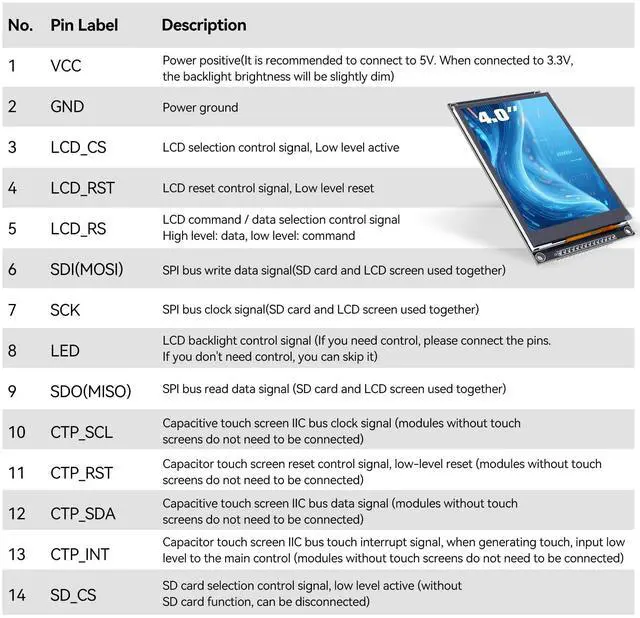

Interface14P 2.54 mm spacing Header and 0.5 mm spacing FPC seat
Package include
1 x 4.0 touch screen
1 x FPC cables
1 x Plastic protective box
Screen Size: 4.0 inch
Screen Type: TN
Resolution: 320xRGBx480 (pixels)
Active Area (AA area): 55.68 (W) x 83.52 (H) (mm)
Number of Colors (Max): 16.7M
Driver IC: ST7796S
Display Interface: 4-Line SPI
Pixel Size: 0.174 (H) x 0.174 (mm)
View Angle: 12 O'CLOCK
Brightness (TYP): 300(cd/m2)
Backlight Type: White LED*8
Operation Temperature: -10~50()
Storage Temperature: -20~60()
Electrical Parameters
Working Voltage 5.0 V/ 3.3V (Recommended to connect to 5V)
Backlight Current103 mA
Power 0.5 W
Touch Screen Parameters:
Touch Active Area: 4.0 inch
Touch Screen Type: Capacitive Touch Screen
Touch Screen Resolution: 320x480 (pixels)
Driver IC: FT6336U
Touch Screen Visual Area: 55.98 (W) x 83.82 (H) (mm)
Communication Interface IIC
Operation Temperature: -20~70()
Storage Temperature: -30~80()
Size Parameters:
TFT Outline Size: 60.88 ± 0.2 (W) x 94.57 ± 0.2 (H) x 2.5 ± 0.1 (D) (mm) (Excluding cables and adhesive backing)
Touch Screen Outline Size: 60.88 ± 0.1 (W) x 94.57 ± 0.1 (H) x 1.35 (D) (mm) (Excluding cables and adhesive backing)
Module Outline Size: Have
Touch Screen: 60.88 (W) x 108.0 (H) x 14.80 (D) (mm) (including Pin Header)
Other Parameters
Interface14P 2.54 mm spacing Header and 0.5 mm spacing FPC seat
Package include
1 x 4.0 touch screen
1 x FPC cables
1 x Plastic protective box
