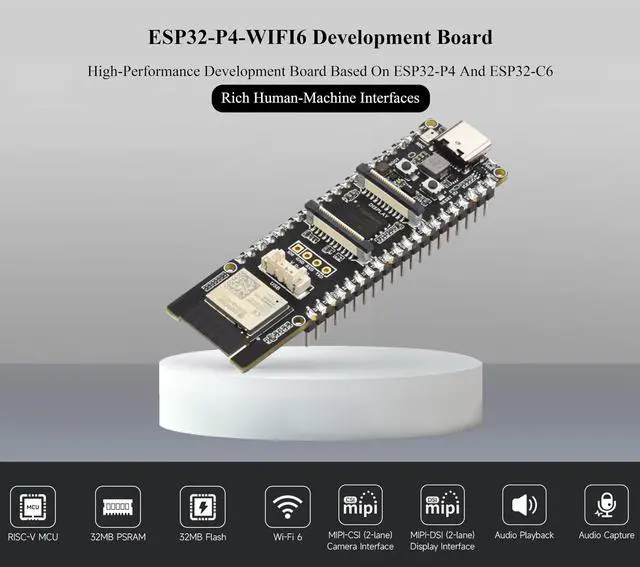

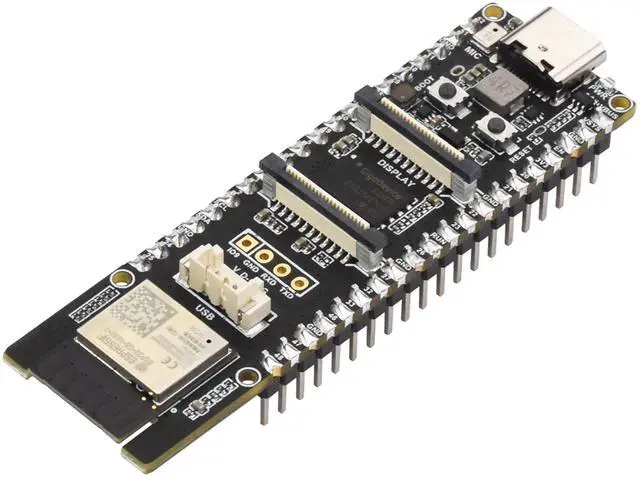

AI ESP32-P4-WIFI6 Development Board with Pre-Soldered Header, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 / BLE, Rich Human-Machine Interfaces, Supports AI Speech Interaction

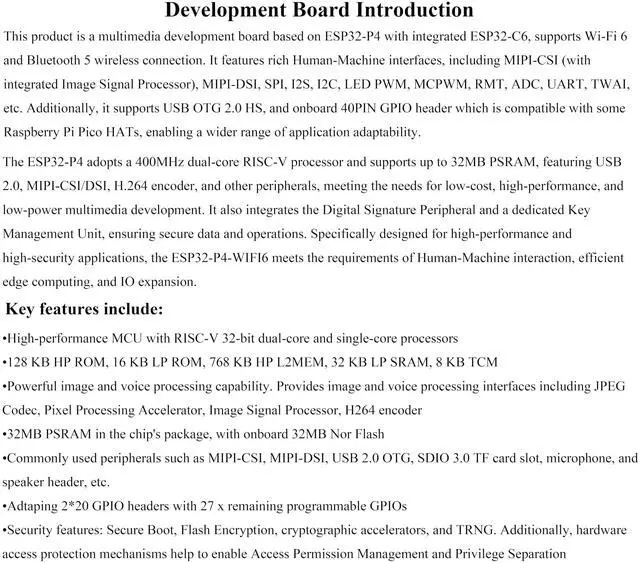

ESP32-P4-WIFI6 is a multimedia development board, based on ESP32-P4 with integrated ESP32-C6, and supports Wi-Fi 6 and BLE 5 wireless connections. It provides a rich set of human-machine interaction interfaces, additionally, it supports USB OTG 2.0 HS, and has a built-in 40PIN GPIO expansion interface on board that is compatible with Raspberry Pi HAT expansion boards, enabling a wider range of application adaptability. ^^
Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, ChatGPT, Doubao, etc. The ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. The ESP32-P4-WIFI6 is specially designed for high-performance and high-security applications, meeting the needs of embedded systems in human-machine interaction, edge computing, and IO expansion.
^^ Processor: High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors. Equipped with RISC-V 32-bit single-core processor (LP system). Equipped with ESP32-C6 WIFI/BT co-processor, expand WIFI 6/Bluetooth 5 (BLE) and other functions through SDIO.
^^ Memory: 128 KB of high-performance (HP) system read-only memory (ROM). 16 KB of low-power (LP) system read-only memory (ROM). 768 KB of high-performance (HP) L2 memory (L2MEM). 32 KB of low-power (LP) SRAM. 8 KB of system tightly coupled memory (TCM). 32 MB PSRAM is stacked in the package, and the QSPI port is connected to 32MB Nor Flash.

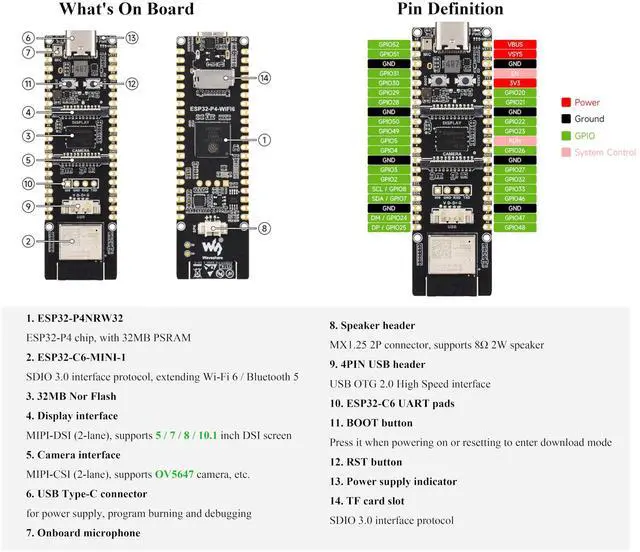

^^ Peripheral Interfaces: 2 x 20 header pins onboard, 27 remaining programmable GPIOs, supporting a variety of peripheral devices. Onboard USB 2.0 OTG port, SDIO 3.0 TF card slot, Type-C UART flashing port, convenient for different scenarios. Onboard speaker port, microphone, Codec chip and power amplifier chip can be used to achieve the ideal audio function requirements. ^^ Onboard MIPI-CSI high-definition camera port, support full HD 1080P picture acquisition and encoding, integrated image signal processor (ISP) and H264 video encoder, support H. 264 & JPEG video encoding (1080P @30fps), easy to apply to computer vision, machine vision and other fields. ^^ Onboard MIPI-DSI high-definition screen display port, integrated pixel processing accelerator (PPA), 2D graphics acceleration controller (2D DMA), supporting JPEG image decoding (1080P @30fps), providing strong support for high-definition screen display and smooth HMI experience, convenient for application to smart home central control screen, industrial central control screen, vending machine and other scenarios. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/he67d4
