Kiro&Seeu TCS230 TCS3200 RGB Light Color Recognition Sensor Detector Module DC 3-5V with 4 LED Compatible with MCU Ar-duino, CS230-MD-1P
- Color sensor principle: The TCS230 is 8-lead SOIC surface mount package with 64 photodiodes integrated on a single chip. These diodes are divided into four types. Among them, 16 photodiodes have a red filter; 16 photodiodes have a green filter; 16 photodiodes have a blue filter; the remaining 16 do not have any filters and can pass all the light information.
- These photodiodes are interdigitated in the chip, which minimizes the inhomogeneity of the incident light radiation, thereby increasing the accuracy of color recognition; on the other hand, the 16 photodiodes of the same color are connected in parallel and evenly distributed. In the diode array, color position errors can be eliminated.
- In operation, the desired filter is dynamically selected through two programmable pins. The sensor's typical output frequency range is from 2 Hz to 500 kHz, and the user can also select 100%, 20%, or 2% of the output scaling factor or power shutdown mode via two programmable pins. The output sc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
TCS230 TCS3200 Color Identification Sensor Module Schematic + Test program
Download:
https: //www.

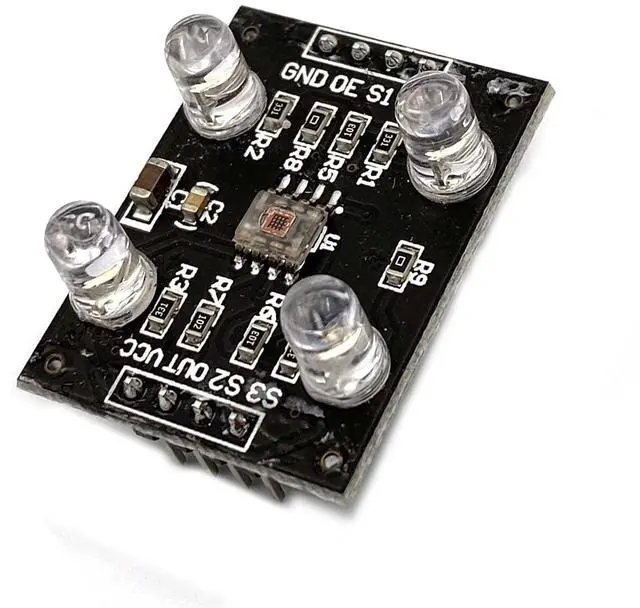

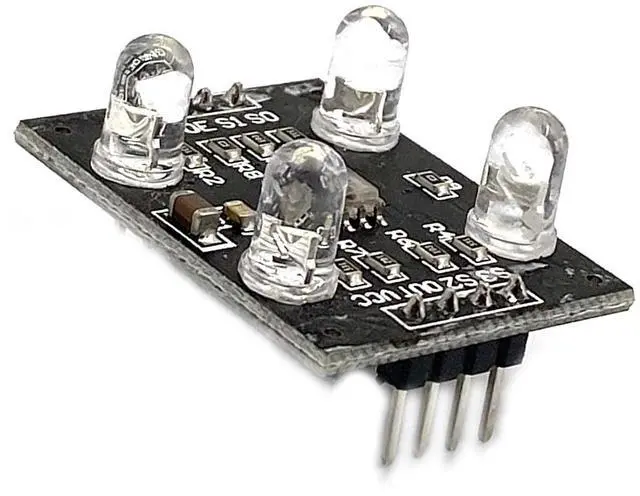

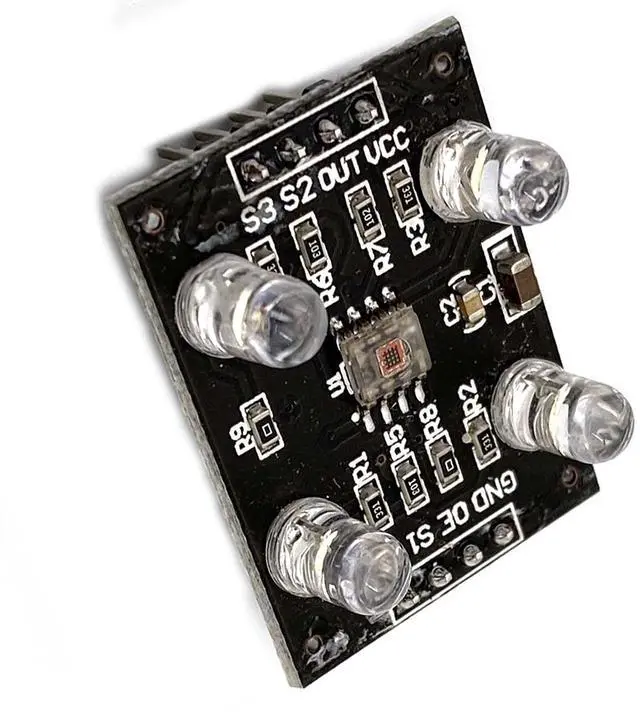

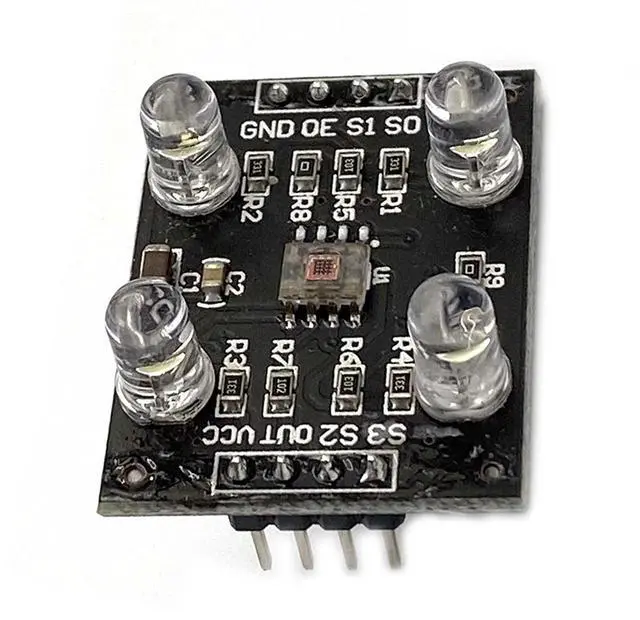

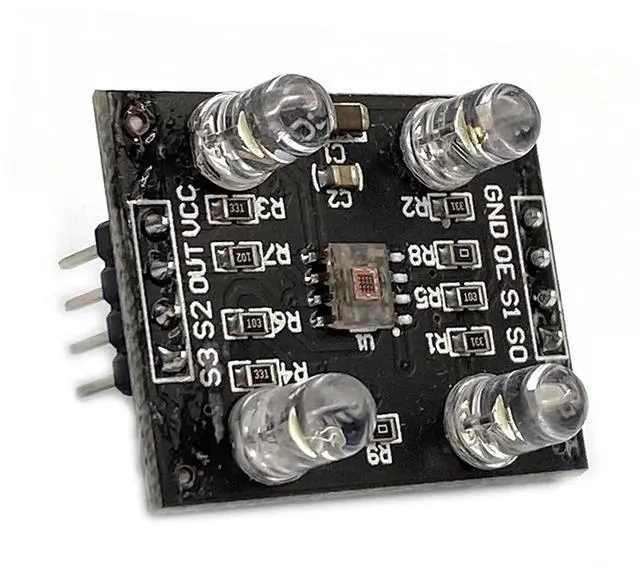

/clouddrive/share/MDlNGqpXwmiU50TYCDcn46hFzpitSibxrQMo4fLPtwhProduct introduction: 1, the use of chip TCS3200 PCB board using gold plating process. 2. The TCS230 is an upgraded version of the TCS230 with better results. 3, power supply 3-5V. 4, resist light interference. 5, white LED, can control the light / off. 6, can detect non-luminous object color.
7,
PCB size: (L) 33mm * (W) 25mm. Package List1pcs TCS230 TCS3200 Color Recognition Module Color Sensor Module
Download:
https: //www.
/clouddrive/share/MDlNGqpXwmiU50TYCDcn46hFzpitSibxrQMo4fLPtwhProduct introduction: 1, the use of chip TCS3200 PCB board using gold plating process. 2. The TCS230 is an upgraded version of the TCS230 with better results. 3, power supply 3-5V. 4, resist light interference. 5, white LED, can control the light / off. 6, can detect non-luminous object color.
7,
PCB size: (L) 33mm * (W) 25mm. Package List1pcs TCS230 TCS3200 Color Recognition Module Color Sensor Module
