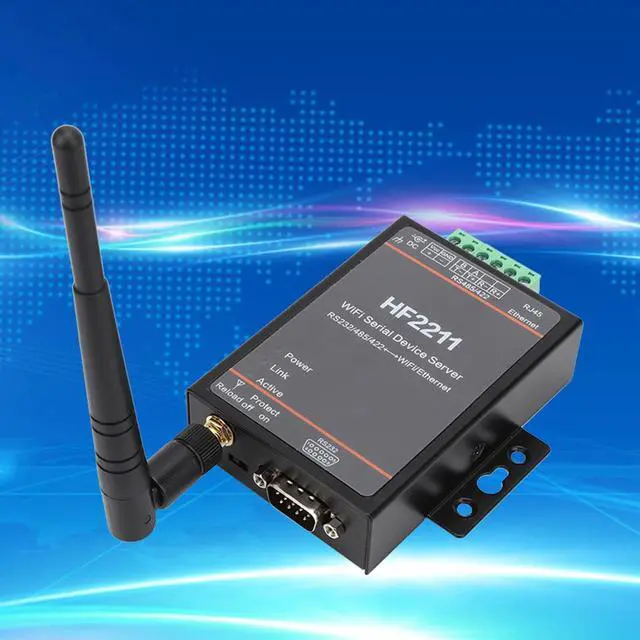

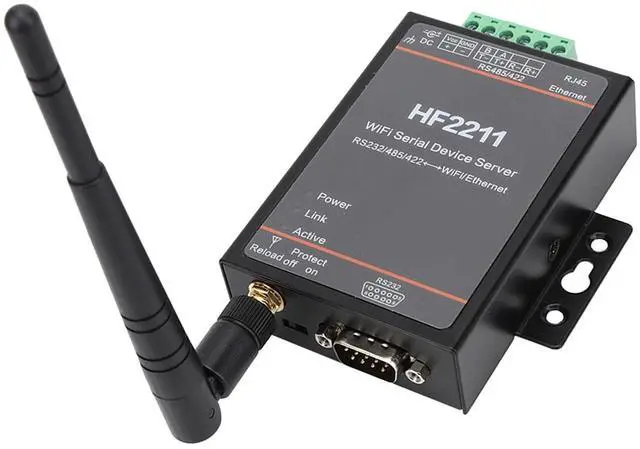

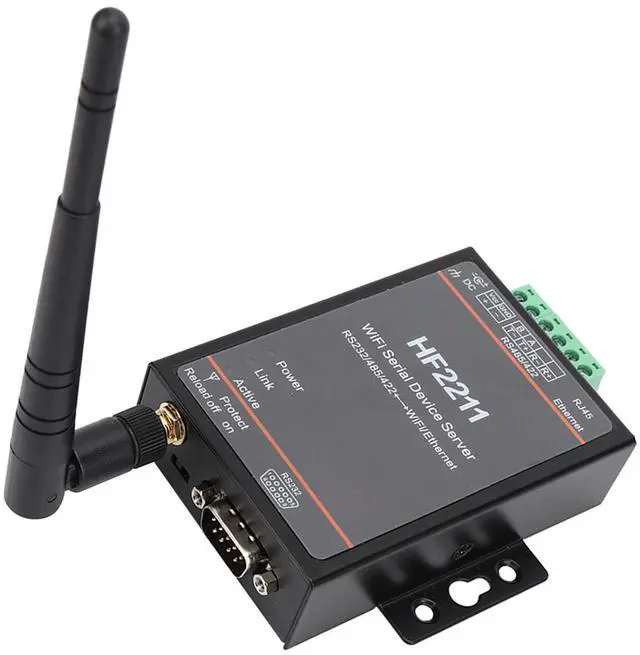

HF2211 Serial Port Server RS232/485/422 to Ethernet Converter, Serial Communication DTU Device

Serial Interface Parameters: Number Of
Serial Ports: 1 (RS232 / 485/422).

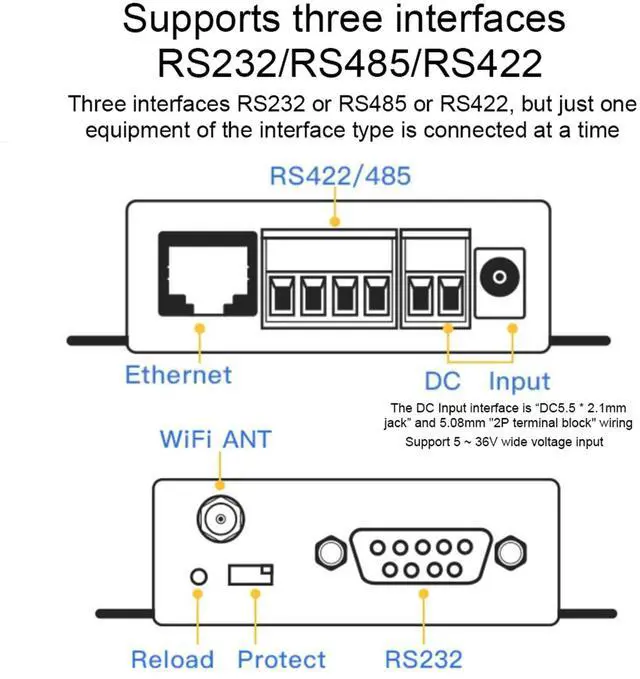

Interface Standard:
RS232: DB9 pin type. RS485 / RS 422: 5. 08mm terminal block.
Baud Rate: 600-230400bps.
Data Bits: 8.
Stop Bits: 1, 2.
Parity: None, Even, Odd, Space, Mark.
^^ Supported Features: Http protocol mode, Modbus conversion, NTP function + time zone setting, Virtual data channel, Registration package function, Heartbeat packet function, Custom script function, Packet filtering, Serial framing, routing mode, bridge mode, roaming function, switch, Hide SSID, Chinese SSID, Parameter and export, ModbusRTU to for ModbusTCP.
^^ Unsupported Features: Local data storage, ModbusMaster, VPN function, APN function, DDNS function. ^^ Maximum Number Of
Network Connections: 20.
IP Acquisition Method: DHCP or static IP, AutolP.
WEB Page: Standard web page or custom web page.
Failure Alarm: Syslog / SMTP.
Configuration Method: WEB page, CLI command, for file, Telnet configuration, IOT
Service software.
Product Features: Virtual
Serial Port Software: For XP / for Vista / 7/8/10 (32bit 64bit), for Server 2003/2008/2012.
^^ Wi-Fi Interface Parameters:
Standard: 802.11 b / g / n.
Network Mode: for STA / for / for STA +.
Network Protocol: for TCP / for UDP, etc.
Maximum Number Of Connections: Maximum 15 STA.
Frequency Band: 2.412GH z- 2.484GH z. ^^ ^^ ^^ ^^ ^^
