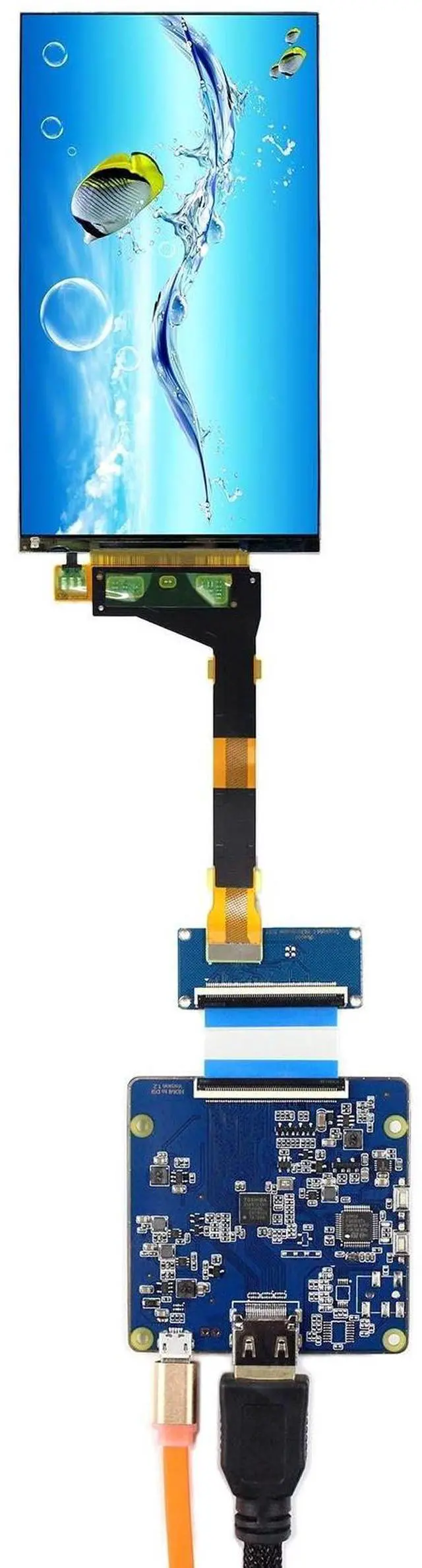

VSDISPLAY for 3D Printer Replacement Display,5.5 Inch LS055R1SX04 1440X2560 2K IPS LCD Screen with to Mipi LCD Controller Board
- Specification:5.5 Inch LS055R1SX04 LCD screen high resolution 1440(RGB)2560 with to MIPI LCD contoller board
- Feature: board work for 50Pin Mipi LCD screen, audio input
- Compatible 3D Printers:This LCD screen is usually used for 3D printers. It also apply to pc,can be a replacement screen
- Service:All the products are tested before package and shipment,if any problem of product,please feel free to contact us

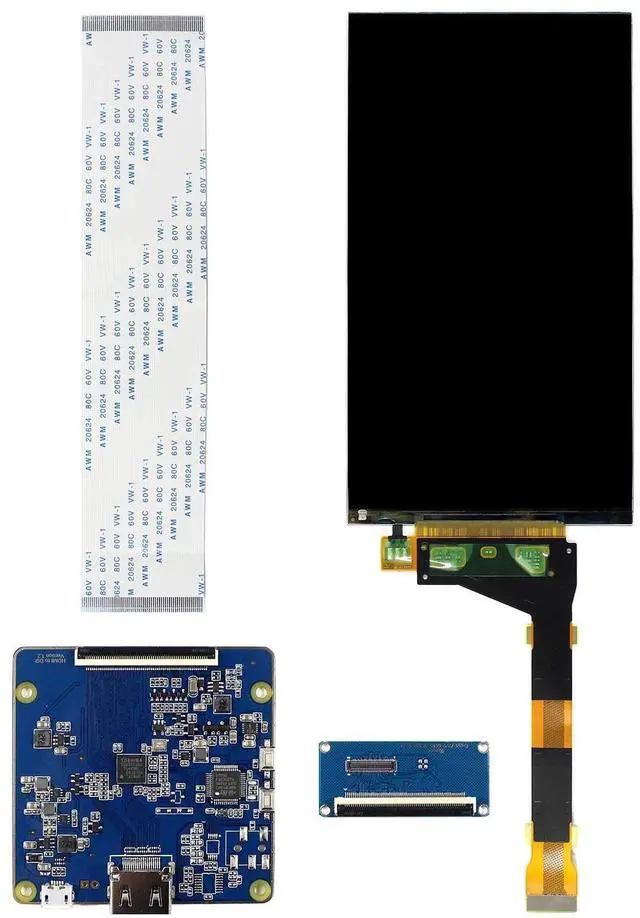

- Packing list:1 To Mipi LCD Controller Board VS- TMIPI-V1;1 5.5inch LS055R1SX04 1440x2560 LCD Screen;1 Signal Cable;1Converter Board
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

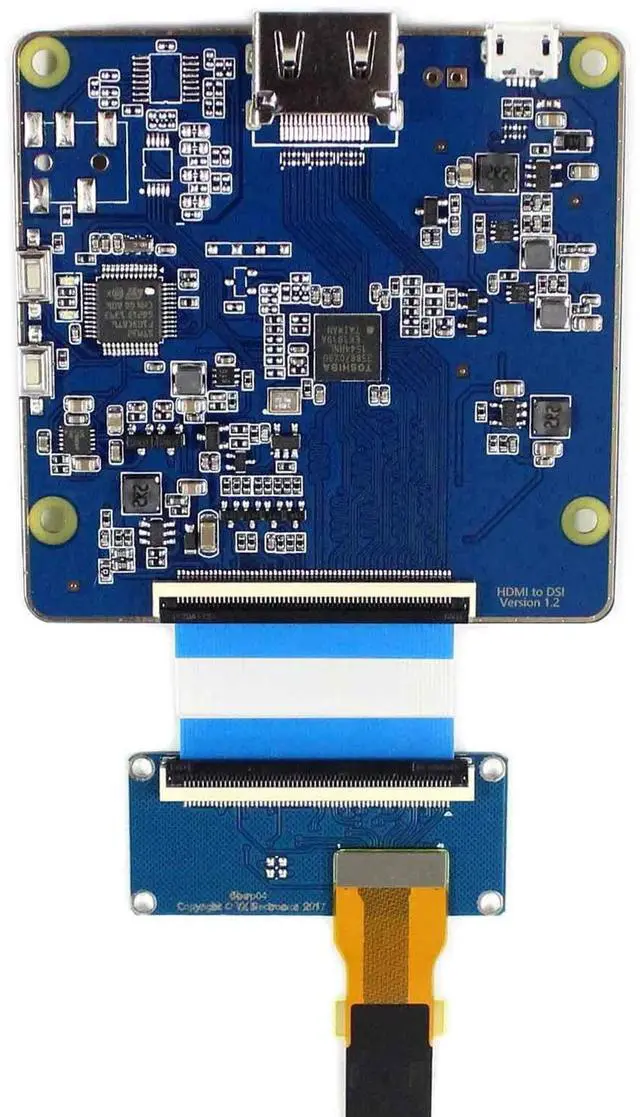

LCD Controller Board: Board Work for 50Pin Mipi
LCD ScreenInput Power Adapter: 5Vdc More than 1A. Come In Standby Model When Not Input SignalStandby Model < 0.3WA udio
Input: Apply toPC iBoard
Size: 65mm x 64mm x 3mm 5.5" LS055R1SX04 1440X2560
LCD Screen: Display New Mode2, Normally Black, TransmissiveResolution 1440RGB)2560Outline Size 70.94 128.491. 45 (HVD) Display Area 68.04 120.96 (HV) Brightness 450 cd/m (Typ. )Contrast Ratio 1300:1 (Typ. ) (TM) Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface MIPI (2 ch, 4 data lanes), 50 pins, ConnectorBacklight WLED
Input Voltage 1.8 / 5.75 /- 5.75V (Typ.

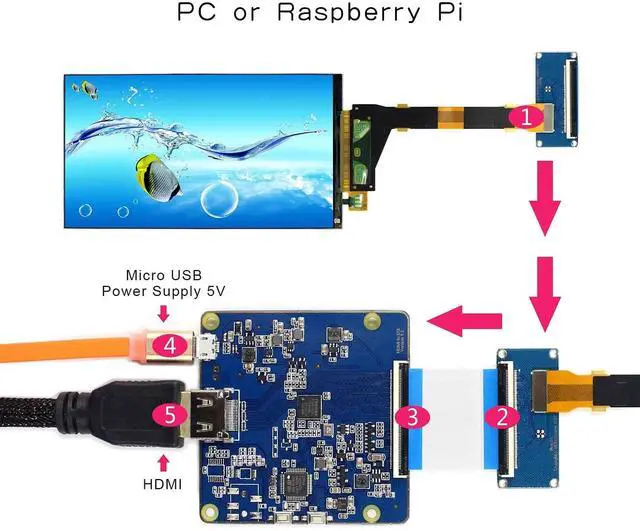

)(IOVCC/VSP/VSN)Instuction: 1. When signal is not accept. It shows black Image and LED flashing on main board. Please change source for test. 2. When accept. It shows correct image and LED is blue. This Board work with PC. The image not support Scaling. It shows image depend on input source. Turn OnaConnect Converter Board With LCD Screen InterfacebConnect Converter Board With 60Pin CablecConnect Main Board With 60Pin CabledInsert USB CableeTurn On 5Vdc or USB as Power SupplyTurn OffaTurn Off 5Vdc or Remove USB Power AdapterbRemove CablecDisconnect Main Board With 60Pin CabledDisconnect Converter Board With 60Pin CableeDisconnect 60Pin Cable With
LCD ScreenFor PC: 1. Most of MIPI screen for vertical display. Need to adjust computer graphics mode. 2. Replication Mode - Extended mode - Vertical and Horizontal adjustment. 1. The Main Board Four Locating Holes
LCD ScreenInput Power Adapter: 5Vdc More than 1A. Come In Standby Model When Not Input SignalStandby Model < 0.3WA udio
Input: Apply toPC iBoard
Size: 65mm x 64mm x 3mm 5.5" LS055R1SX04 1440X2560
LCD Screen: Display New Mode2, Normally Black, TransmissiveResolution 1440RGB)2560Outline Size 70.94 128.491. 45 (HVD) Display Area 68.04 120.96 (HV) Brightness 450 cd/m (Typ. )Contrast Ratio 1300:1 (Typ. ) (TM) Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface MIPI (2 ch, 4 data lanes), 50 pins, ConnectorBacklight WLED
Input Voltage 1.8 / 5.75 /- 5.75V (Typ.
)(IOVCC/VSP/VSN)Instuction: 1. When signal is not accept. It shows black Image and LED flashing on main board. Please change source for test. 2. When accept. It shows correct image and LED is blue. This Board work with PC. The image not support Scaling. It shows image depend on input source. Turn OnaConnect Converter Board With LCD Screen InterfacebConnect Converter Board With 60Pin CablecConnect Main Board With 60Pin CabledInsert USB CableeTurn On 5Vdc or USB as Power SupplyTurn OffaTurn Off 5Vdc or Remove USB Power AdapterbRemove CablecDisconnect Main Board With 60Pin CabledDisconnect Converter Board With 60Pin CableeDisconnect 60Pin Cable With
LCD ScreenFor PC: 1. Most of MIPI screen for vertical display. Need to adjust computer graphics mode. 2. Replication Mode - Extended mode - Vertical and Horizontal adjustment. 1. The Main Board Four Locating Holes
