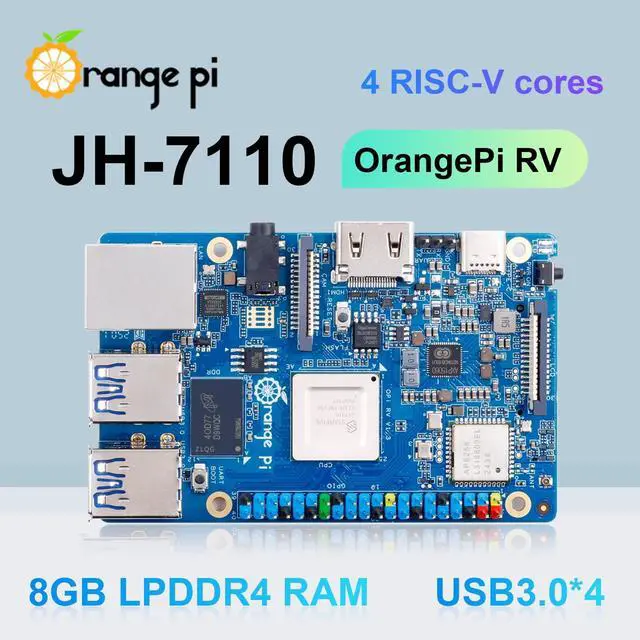

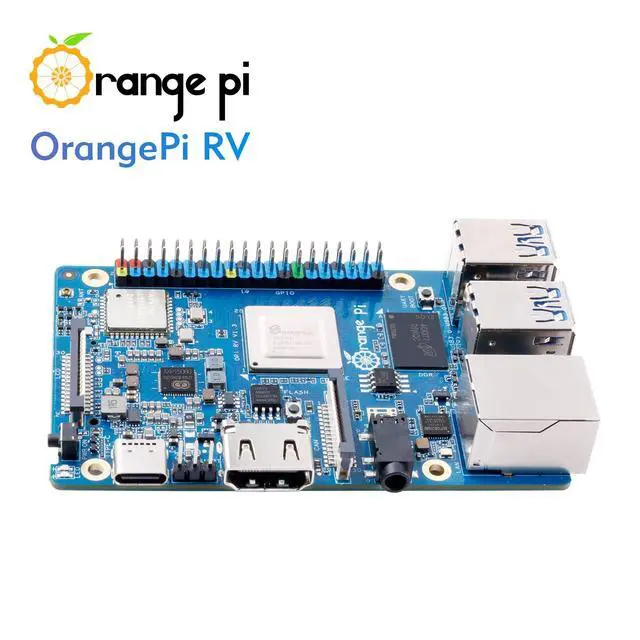

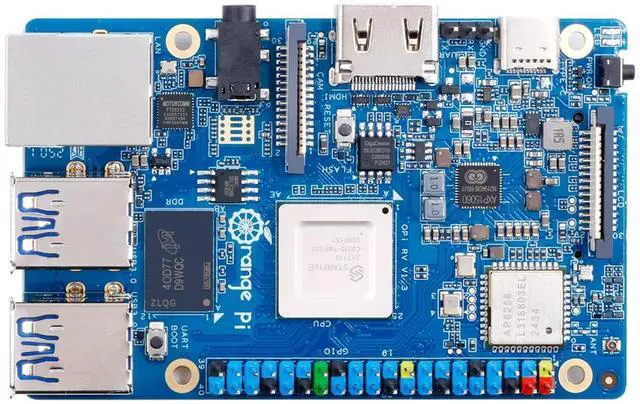

Orange Pi RV 8G RAM RISC V 4 Core LPDDR4 1.5GHz Frequency Development Board, 4K Video Decoding Wi-Fi 5+BT 5 Orange Pi RV Single Board Computer Run Debian
- High Performance RISC V - Orange Pi RV 8G is a cost-effective RISC-V development board, equipped with a RISC V quad core processor JH-7110, Equipped with 64-bit high-performance RISC-V processor core, CPU stable operating frequency of 1.5GHz, with efficient computing, high-speed connection, visual processing and other characteristics.
- LPDDR4 4K Video Decoding - Orange pi RV has 8GB LPDDR4, H.264/H.265 video encoding and decoding IP and ISP IP. Video decoding (H.264/H.265) up to 4K@30fps, support multi-way decoding; video encoding (H.265) up to 1080p@30fps, support multi-way encoding;provide JPEG codec.
- Wi-Fi 5+BT 5 - Orange pi RISC V SBC supports PCIe2.0, Gigabit Ethernet, MIPI-CSI, MIPI-DSI, 40Pin expansion interface and other commonly used functional interfaces, and supports Linux operating system.
- Enriched interfaces - Rich peripheral interfaces, including PCIe2.0 interface, USB3.0 interface, Gigabit Ethernet interface, Wi-Fi and Bluetooth, MIPI DSI, MIPI CSI, 40Pin expansi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

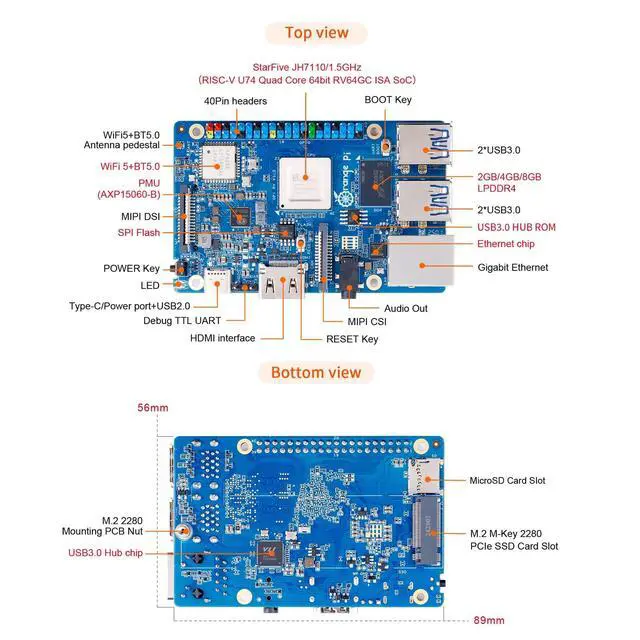

Hardware SpecificationCPU:
JH-7110GPU: RISC-V
architectureRAM: 2GB / 4GB / 8GB LPDDR4, 2800MT/s single channel
B200 ballsMemory: M. 2 NGFF PCIe *1 (2280 *1); TF card slot *1, SDIO signal, max support 1TBWi-Fi+BTWi-Fi 5.0 +BT 5.0W i-Fi
Interface: SDIO 2.0
Model:
AP6256Ethernet: Support 10/100/1000Mbps *1
YT8531CUSB: USB 3.0 *4; PCIe to USB 3.0 HUB
Camera: 2Lane CSI*1, dual-row 30PinVideoHDMI Type A, 2.0 *1, up to 4K@30fps2Lane DSI*1, dual-row
30PinAudio: 3.5 mm, 4-section headphone cradle, left and right channel only, no MIC

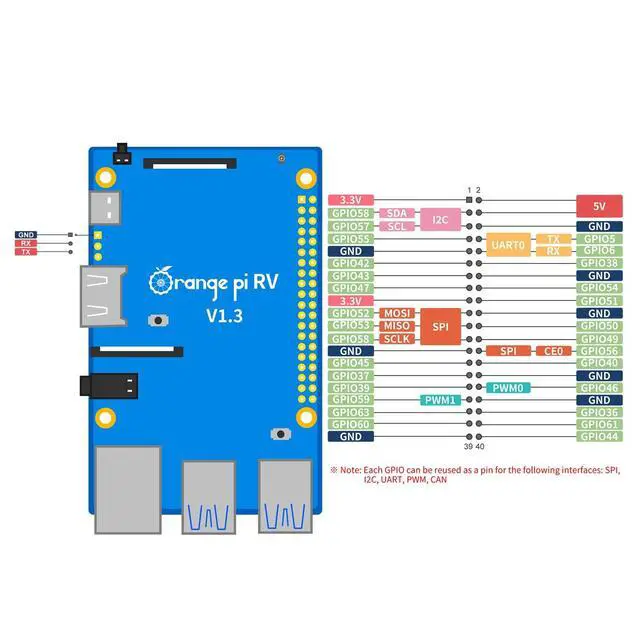

Expansion port: 40Pin
expansion interface: UART serial port, I2C, 3V/5V power supply and other GPIO
Indicator light: Power
on lampPower button: Side buttons, board
edgeReset button: Horizontal buttons, in-boardBurn
flash button: Horizontal buttons, in-board (for burning from USB when flash is damaged)
Power source: Type-C port power supply, rated 5V 4ASupported
OS:
LinuxDimension: 89*56mm, board
thickness 1.6 mmWeight: 54g
JH-7110GPU: RISC-V
architectureRAM: 2GB / 4GB / 8GB LPDDR4, 2800MT/s single channel
B200 ballsMemory: M. 2 NGFF PCIe *1 (2280 *1); TF card slot *1, SDIO signal, max support 1TBWi-Fi+BTWi-Fi 5.0 +BT 5.0W i-Fi
Interface: SDIO 2.0
Model:
AP6256Ethernet: Support 10/100/1000Mbps *1
YT8531CUSB: USB 3.0 *4; PCIe to USB 3.0 HUB
Camera: 2Lane CSI*1, dual-row 30PinVideoHDMI Type A, 2.0 *1, up to 4K@30fps2Lane DSI*1, dual-row
30PinAudio: 3.5 mm, 4-section headphone cradle, left and right channel only, no MIC
Expansion port: 40Pin
expansion interface: UART serial port, I2C, 3V/5V power supply and other GPIO
Indicator light: Power
on lampPower button: Side buttons, board
edgeReset button: Horizontal buttons, in-boardBurn
flash button: Horizontal buttons, in-board (for burning from USB when flash is damaged)
Power source: Type-C port power supply, rated 5V 4ASupported
OS:
LinuxDimension: 89*56mm, board
thickness 1.6 mmWeight: 54g
