VSDISPLAY 7" 7 inch 800600 4:3 CLAA070MA0ACW LCD Screen TFT Monitor and LCD Controller Board 60 pin
- Screen Advantage7 inch 800600 TFT LCD Screen, display area is 141mm106mm, 250nit good brightness ,viewing angle 70/70/50/70 ,TTL signal interface connector 60 pins ,WLED backlight WLED .
- LCD Controller Board Video input: H/D,Support transfer Audio,Please use in insulated environment.
- Input Power Supply12V DC 2A, port size :5.5x2.1mm,Pls prepare power adapter by yourself.

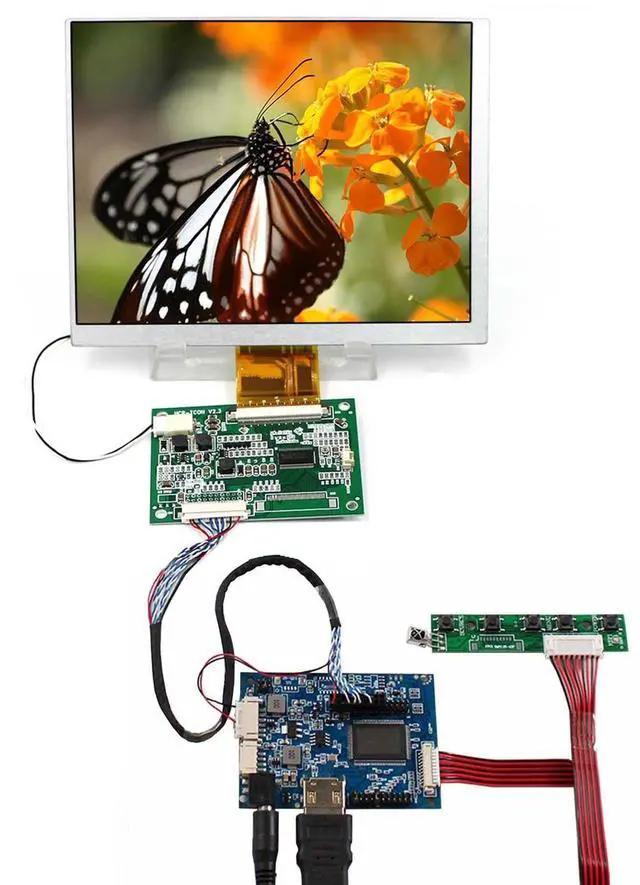

- Advantage:This 4:3 aspect ratio panel with port ,can connect with Laptop ,pc ,RPI and other device with connection. Widely working as a sub display ,or sim monitor ,etc.
- Any problem ,Pls provide some connecting pictures to showing the problem .We will give you best solution in 12 hours.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input LCD
Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not InputStandby
Model <1WVideo Input:

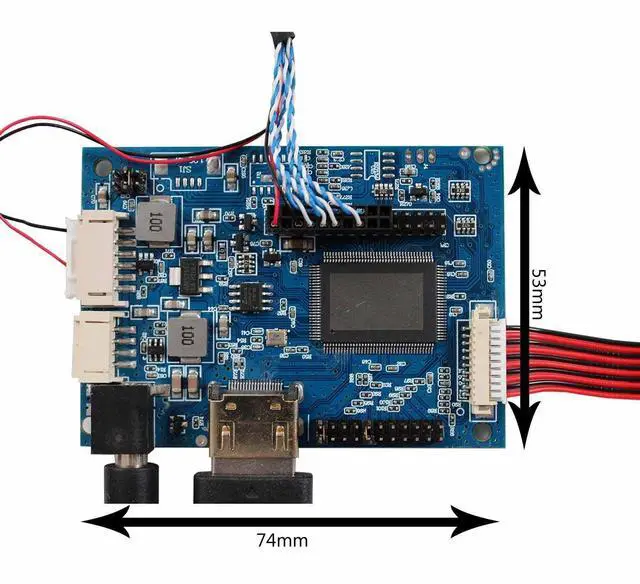

OSD: Brigtness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm7" 800600

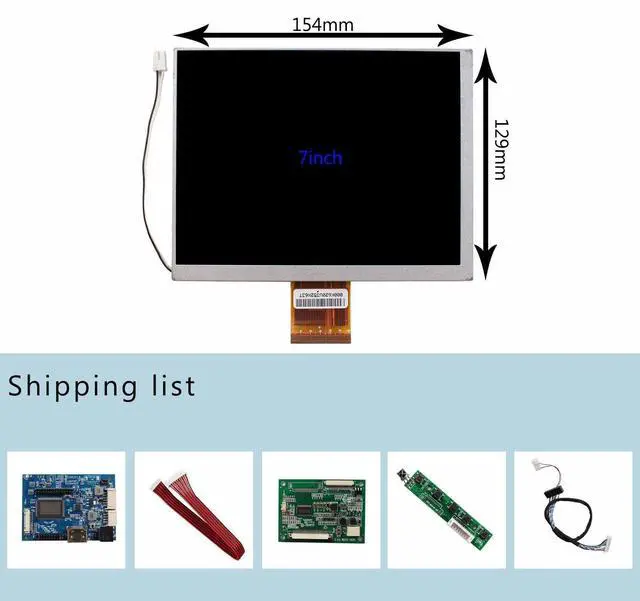

LCD Screen CLAA070MA0ACW: Display Mode N, Normally White, TransmissiveResolution 800RGB)600Outline Size 154 119.2 (HV) Display Area 141.6 106.2 (HV) Brightness 250 cd/m (Typ. )Contrast Ratio 500:1 (Typ. ) (TM) Viewing Angle 70/70/50/70 (Typ. )(CR? 10) [Left / Right / Up / Down]Interface TTL (1 ch, 6/8-bit), FPC, 60 pinsBacklight WLED
Input Voltage 3.3 / 9.6 /18/-6V (Typ.

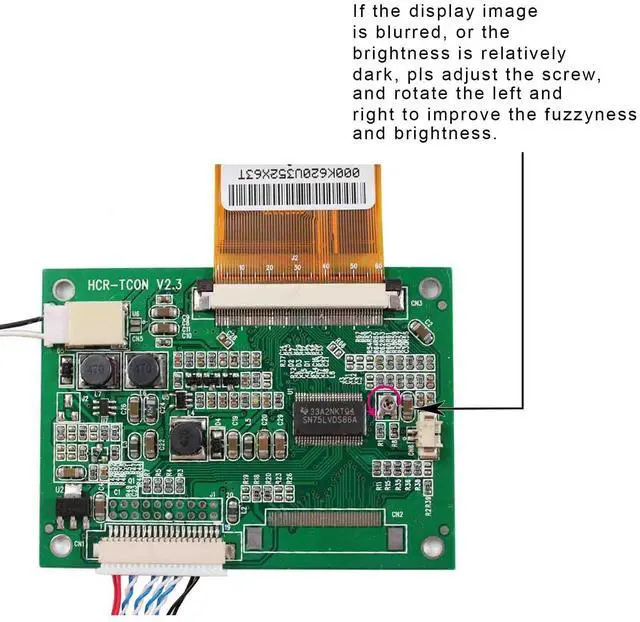

)(VCC/AVDD/VGH/VGL)Package content: 1 LCD Controller Board17inch CLAA070MA0ACW 800X600 4:3 LCD Screen1 LVDS-TTL Tcon Board HCR-TCON-V21 Cable1

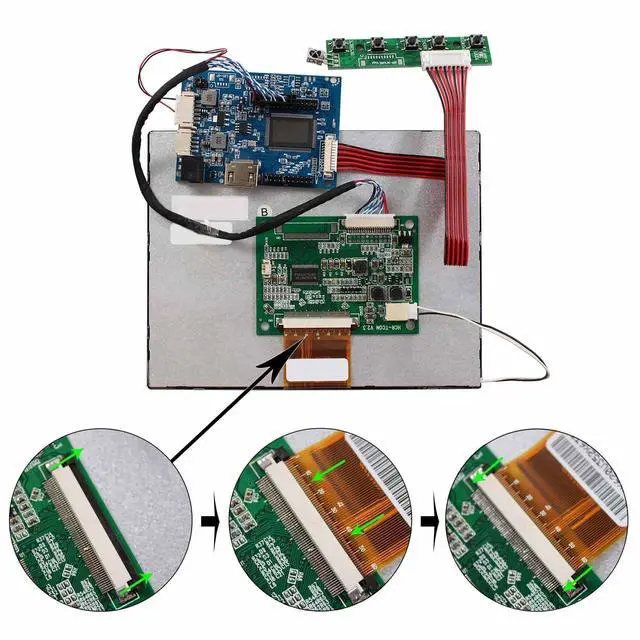

Keyboard With CableNote: 1. Power Supply is NOT included2. If you dont know how to connect the Screen, please feel free to contact us
Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not InputStandby
Model <1WVideo Input:
OSD: Brigtness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm7" 800600
LCD Screen CLAA070MA0ACW: Display Mode N, Normally White, TransmissiveResolution 800RGB)600Outline Size 154 119.2 (HV) Display Area 141.6 106.2 (HV) Brightness 250 cd/m (Typ. )Contrast Ratio 500:1 (Typ. ) (TM) Viewing Angle 70/70/50/70 (Typ. )(CR? 10) [Left / Right / Up / Down]Interface TTL (1 ch, 6/8-bit), FPC, 60 pinsBacklight WLED
Input Voltage 3.3 / 9.6 /18/-6V (Typ.
)(VCC/AVDD/VGH/VGL)Package content: 1 LCD Controller Board17inch CLAA070MA0ACW 800X600 4:3 LCD Screen1 LVDS-TTL Tcon Board HCR-TCON-V21 Cable1
Keyboard With CableNote: 1. Power Supply is NOT included2. If you dont know how to connect the Screen, please feel free to contact us
