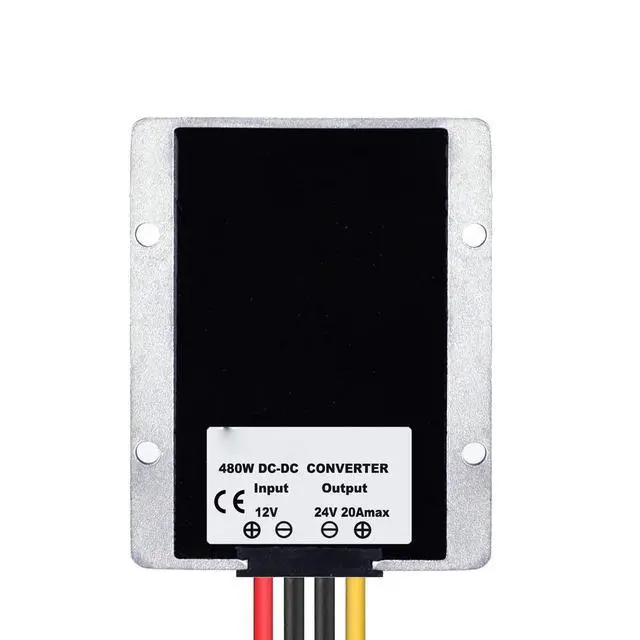

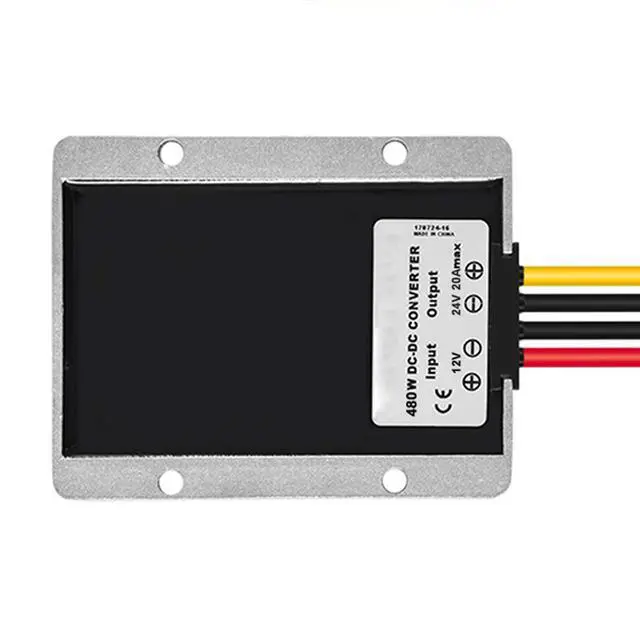

QJFCare DC/DC 12V to 24V Boost Converter 20A 480W Step Up Voltage Regulator Module Car Power Supply Voltage Transformer, Power Adapter Voltage Booster, for Golf Cart Car Truck Vehicle Boat Aluminum
- DC to DC 12V to DC 24V 20A 480W - input voltage range DC 11-16V; output voltage: DC 24V(non-adjustable); output current: 20A(max.); output power 480W.
- Safty Protections - Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operating, over 100,000 hours lifetime.

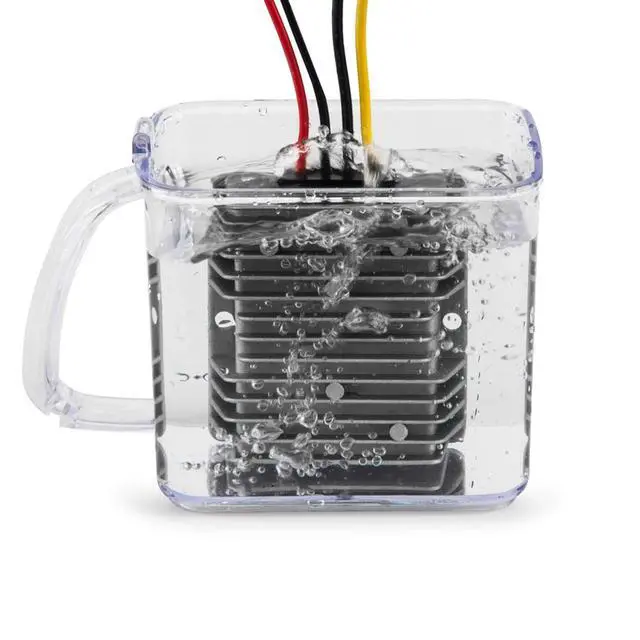

- Waterproof and portable - with aluminum alloy shell, silicone gel package, IP68 waterproof rating, 100% waterproof , can work in rain; small and portable, easy to install.

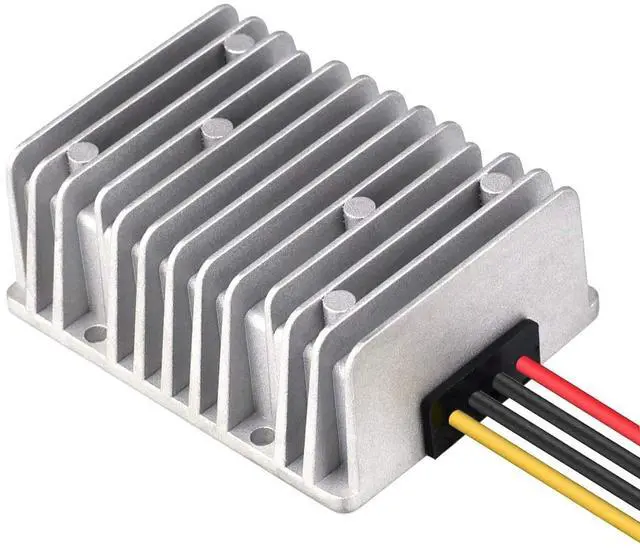

- High and stable conversion efficiency - synchronization rectification technology-multiple intelligent protection function. Die-cast aluminum shell, expoxy potting, cooling by free air convection. High conversion efficiency up to 96%. 100% full rated power and stable output voltage.
- Wide application - fits for car, truck, vehicle, boat, electric bike, bus, cmb, club cart, LED strip lights, display moniter screen of taxi, car radio audio device, LCD TV, DVD, IP camera, speaker system, G
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 12V to DC 24V 20A 480W step up converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

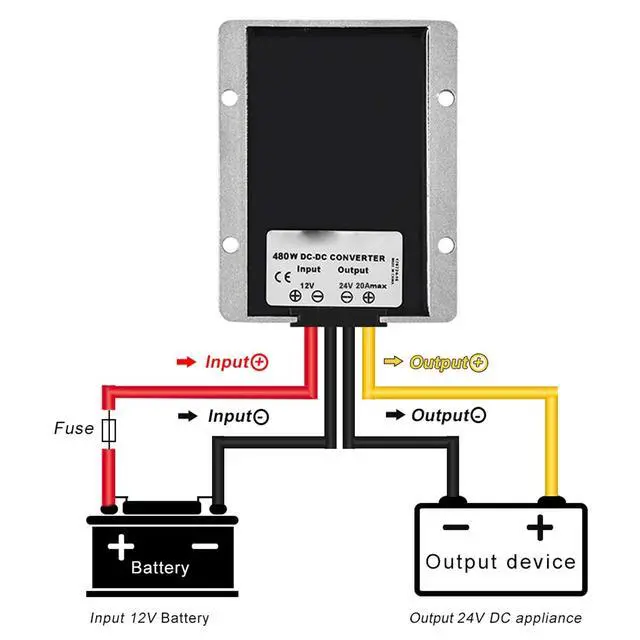

Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to
BAT-Note: Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. Never charge the battery. Keep good air convection. Never reverse the polarity. Use the enough big cable to avoid the voltage drop.
Input Rated Voltage: 12V DCInput
Voltage Range: 10V-16
DCOutput voltage: 24V
DCOutput Current: 20 AmpOutput
Rated Power:
480WEfficiency: 97% (half load); 95% (full load)
Ripple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature: -40~85C
