NooElec LMR400 30' (10m) Ultra-Low Loss SMA Extension Cable - 50, Male-to-Female, Black, Suitable for RF Applications, Ham Radios, SDR Systems, Industrial or Commercial RF Equipment, and Antennas
- Insertion loss of 0.5dB at 100MHz 1.8dB at 1GHz, and 4.6 at 6GHz
- Simi-flexible coaxial cable with a wide frequency range

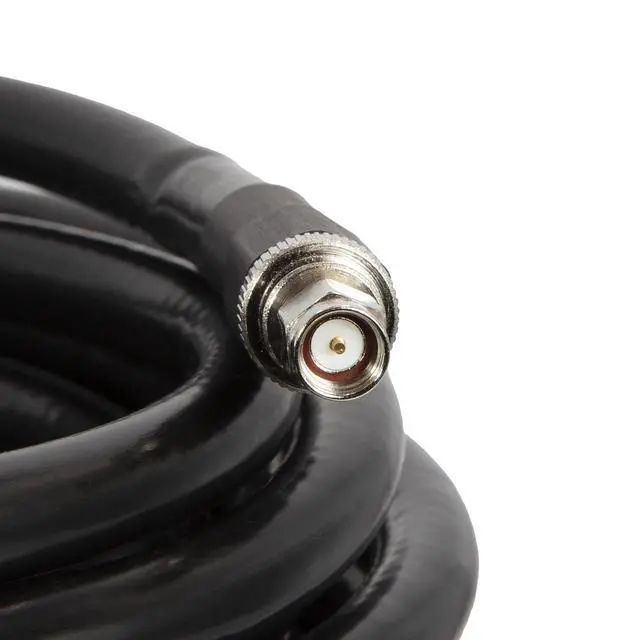

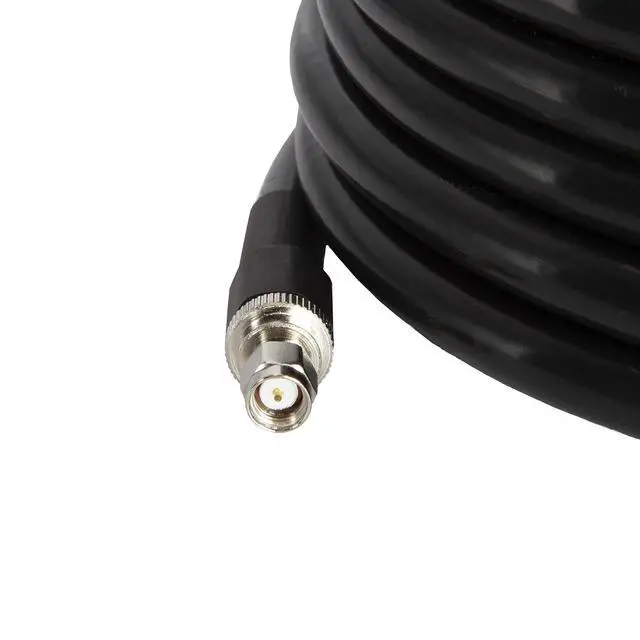

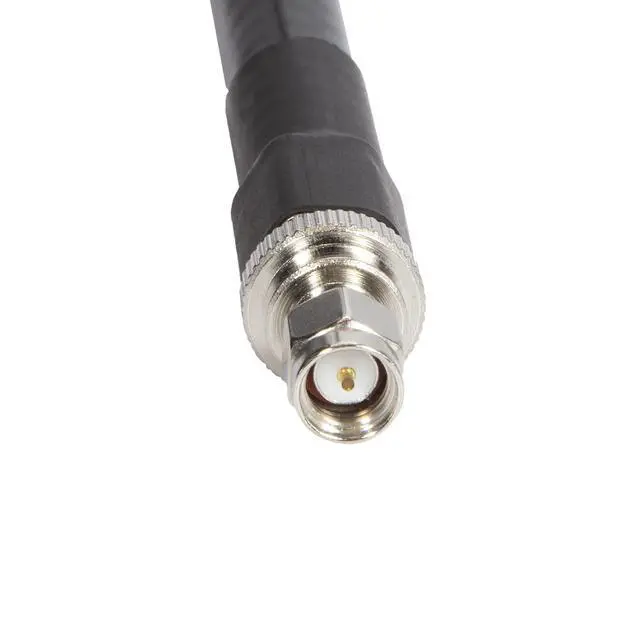

- Termination: Male SMA - female SMA
- 50 input and output impedance with low VSWR (less than 1.6 below 6GHz)
- Thick plastic cover to protect the cable against harsh conditions such as rain, humidity, snow, dust, and heat
- Ideal for both outdoor and indoor use
- Can be used as a transmission line for RF power levels up to 1.7kW at 100MHz and 0.5kW at 1GHz
- Capable of carrying DC power due to its thick inner conductor
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
A high-quality RF coaxial cable designed to have a low insertion loss and is suitable for a wide range of RF applications. The 50 cable is terminated with an SMA connector (male on one end and female on the other) to provide an effortless way of connecting the cable to existing RF setups and systems. Testing showed low insertion loss at high frequencies with low VSWR. The cable comes with a high-quality material jacket for extra protection.
