$66.99
Meet Your Seller

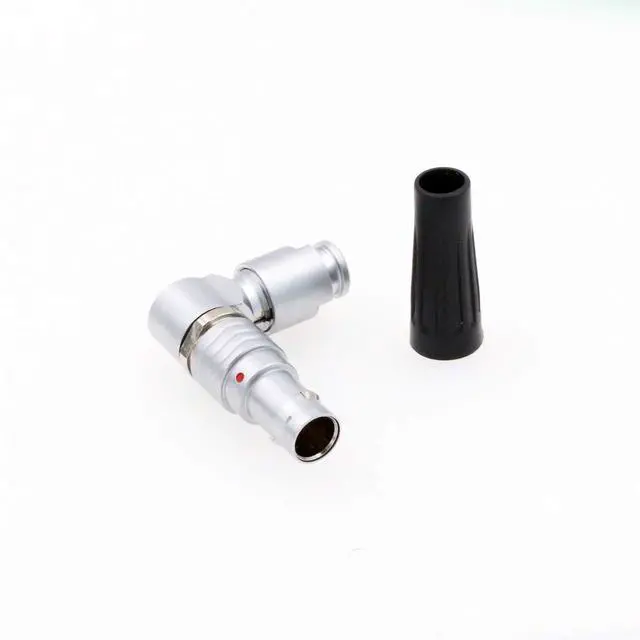

HangTon FSG.0B 9 Pin Right Angle Power Connector, Rotated Adjustable Circular Push-Pull Male Cable Plug

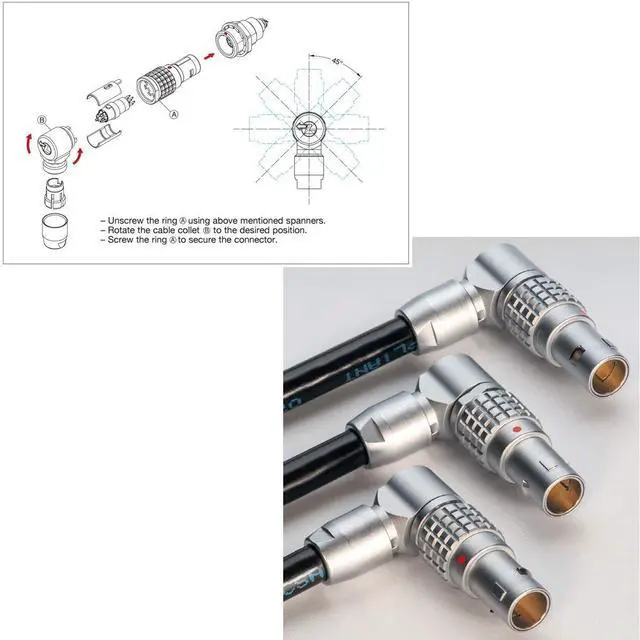

- 9-pin male connector, right angle and adjustable rotated plug FSG.0B.309.CLAD. It is widely used in audio video camera camcorder monitor data power timecode signal. It allows to adjust the connector position in an efficient way in order to prevent cable snagging. Orientat it during its assembly and 8 positions available
- Rated current: 2 Amps. AWG wire size: 32 - 28, cable diameter: 2.5mm-5mm
- Contact diameter: 0.5 mm, stranded conductor section AWG 28
- For data and power, medical equipment, test equipment, machinery, audio and video devices, broadcasting, telecommunications and military
- Quick connect, male cable plug, solder termination, IP50 rating, circular metal aviation push-pull self-locking connector. Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compatible for LEMO 0B FGG EGG FSG FHG PHG connectors.

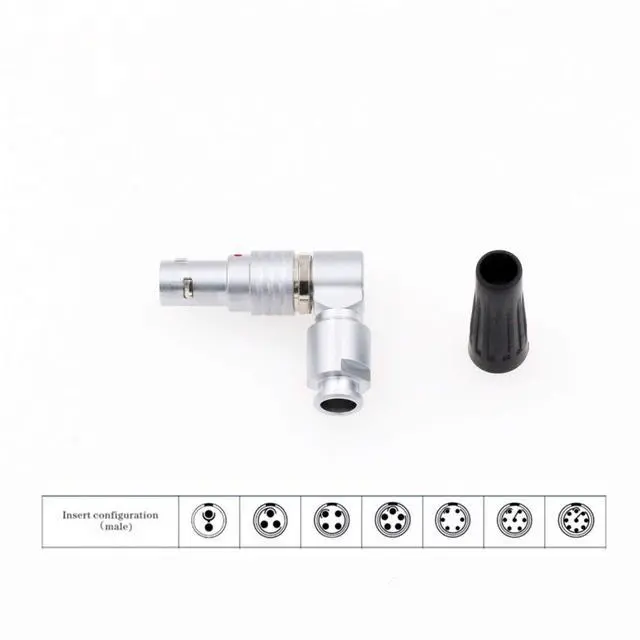

Contacts: 2 3 4 5 6 7 9Wire diameter max:
2-3pin: 20AWG
; 4-5pin: 22AWG
; 6-9pin: 28AWG
Cable Outer Diameter Range: 2mm-5mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
Features: In the harsh environment can provide a safe and reliable connection. 0B (buckle coupling) metal aviation push-pull self-locking connector is ideal for Medical Electronics, Test and Laboratory Equiment, Measurement Instrumentation, Data and Telecom Systems, Audio and Video Applications, Military and Aerospace, Industrial Controls, Machinery, used to transfer data and supplying power.
Contacts: 2 3 4 5 6 7 9Wire diameter max:
2-3pin: 20AWG
; 4-5pin: 22AWG
; 6-9pin: 28AWG
Cable Outer Diameter Range: 2mm-5mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
Features: In the harsh environment can provide a safe and reliable connection. 0B (buckle coupling) metal aviation push-pull self-locking connector is ideal for Medical Electronics, Test and Laboratory Equiment, Measurement Instrumentation, Data and Telecom Systems, Audio and Video Applications, Military and Aerospace, Industrial Controls, Machinery, used to transfer data and supplying power.
