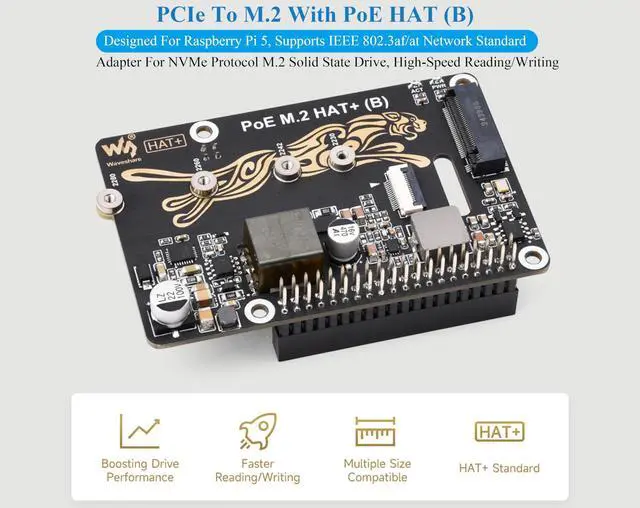

PCIe to M.2 Adapter with PoE Function Compatible with Raspberry Pi 5, Pi 5 NVMe PoE HAT+ Support NVMe M.2 Solid State Drive SSD 2230/2242/2260/2280, High-Speed Reading/Writing

PCIe To M. 2 Adapter With PoE Function Compatible with Raspberry Pi 5. Supports NVMe Protocol M. 2 Solid State Drive. Supports IEEE 802.3 af/at Network Standard. High-speed Reading/Writing ^^ Compatible With 2230 / 2242 / 2260 / 2280 Size M. 2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive ^^
Power Over Ethernet: providing both network connection and power supply for your RPi in one cable ^^ Onboard 5V

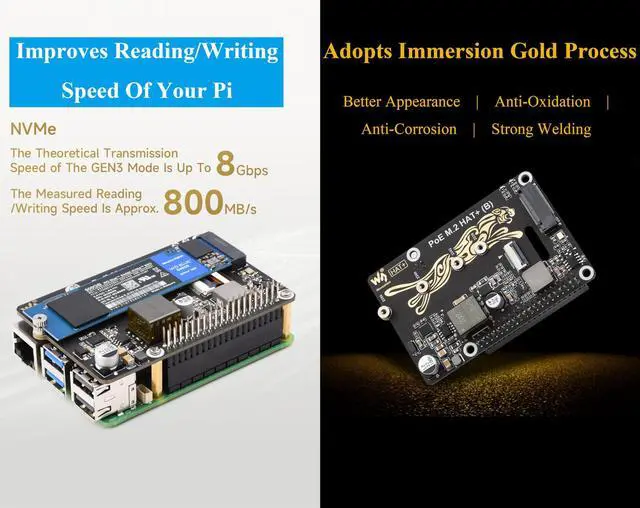

& 12V header outputs: 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to RPi ^^ Improves Reading/Writing Speed of RPi, NVWe: The Theoretical transmisstion speed of the Gens mode is up to 8Gbps. The Measureed Reading/Wring speed is Approx. 800mb/s ^^ Connecting to PI5 via 16PIN Cable. Based on 16PIN PCIe Interface of RPi 5. Standard RPi 40PIN GPIO stackable header, allows connecting other HATs ^^ Comes with Online Development Resources /User
Manual: bit. ly/3OheR7L
