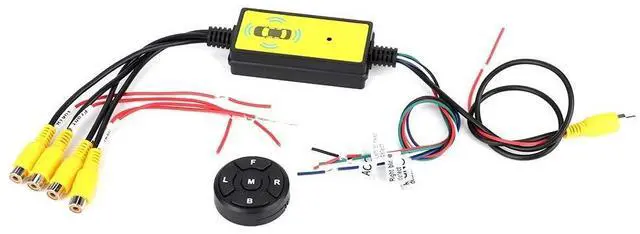

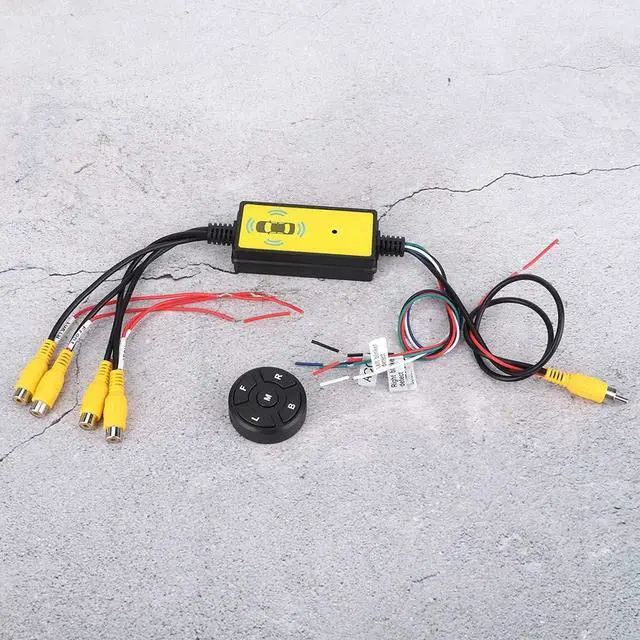

Video Switcher 4 Input 1 Intelligent Car Video Switcher Converter Output Switch Video System Auto Parts

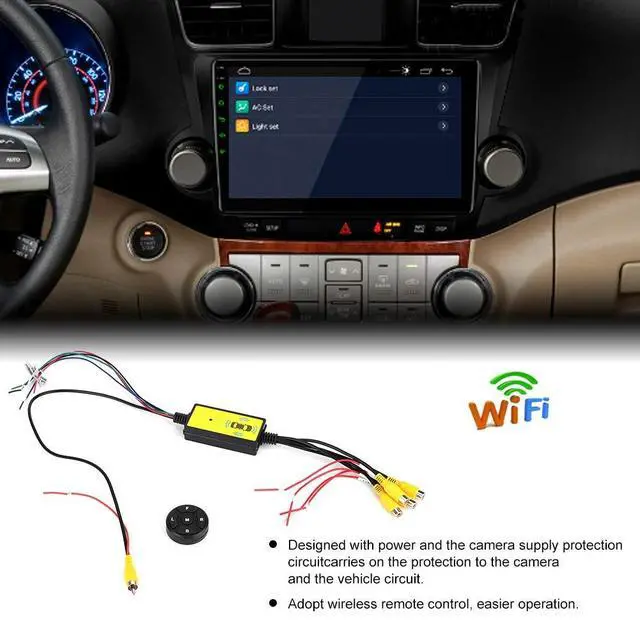

1. This switcher is designed to add more video inputs for cameras when it's connected with video interface for different car. 2. Four video outputs are shared with one video channel with the same power line. 3. When each camera receives power from the corresponding headlight, the display can show the correct video channel by turning on the left and right indicators or backup. 4. The product itself has designed the product power and the camera supply circuit, carries on the to the camera and the vehicle circuit. 5.

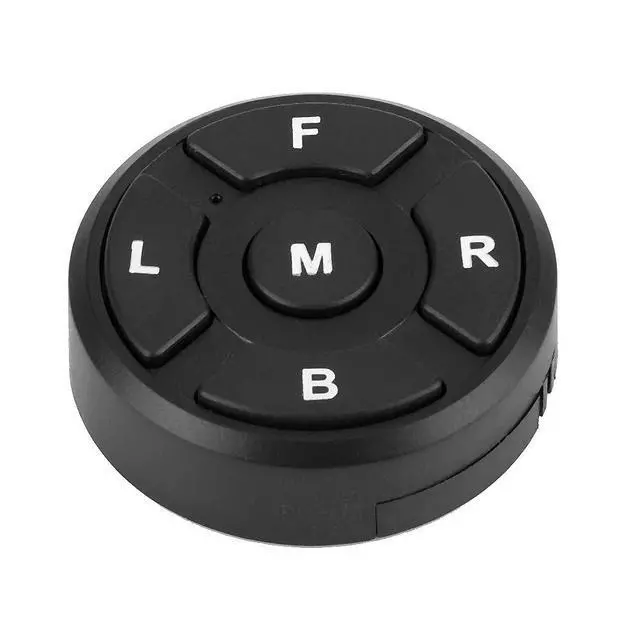

Adopt remote control, which has easier operation, convenient for using.
Spec:
Condition: Brand
NewItem Type: Video
SwitcherMaterial: ABS
Color: As picture shown1.

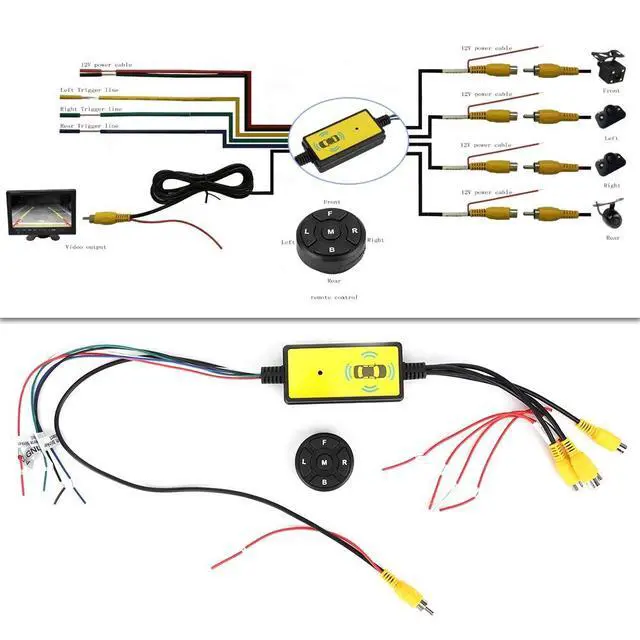

4 Video Inputs: Lleft-view, right-view, rear-view and front-view, each group of video inputs has a camera + 12V. 2. The output shares a video channel and outputs a power line that the screen. 3. It can detect the left and right turn of the car and switch to the corresponding video channel; when out of the reversing state, the video source is switched to display front view 7s (this function can be selected according to the situation), and then returns to the default video output off state.
Color definition of the line: 12V power supply positive (red line), GND negative (black line), left turn (white line), right turn (green line) and reverse turn (blue line). 4. The product has designed a product power supply circuit and a camera power supply circuit to the camera and on-board circuits. 5. The product adopts remote control. 6. Wide voltage power input 8-16V, 24V to 12V need to be equipped on large car7.
Remote control battery model: CR2025 (included) 8. Range of use of remote controller: the remote control distance is 4-10m without interference and shielding from other equipment.
Package List: 1 x Video
