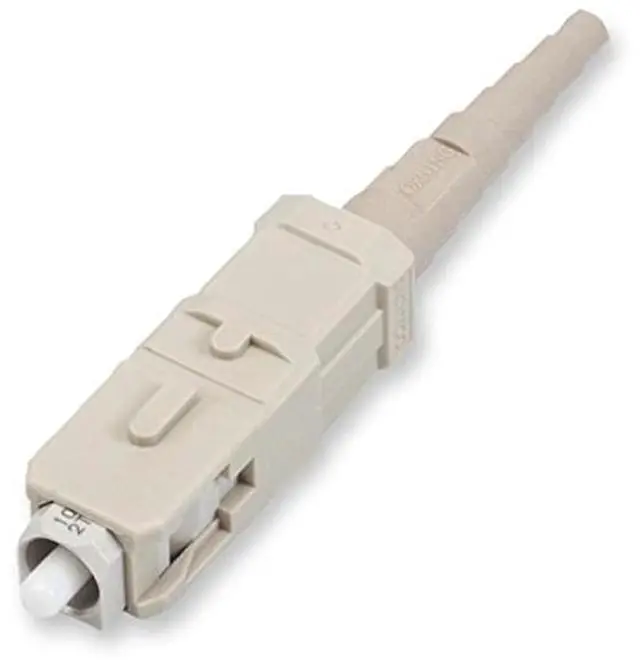

Cable Central LLC (10 Pack) Corning 95-000-41 Unicam High-Performance Connector, SC, 62.5/125 um Multimode (OM1), Ceramic Ferrule, Single Pack, Beige Housing, Beige Boot

Corning Cable Systems UniCam High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution.
Approval and Listings: Passed EIA/TIA 568-B.
3;
Intermateability: Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20; Free of hazardous substances according to RoHS 2002/95/EG
Features: Fiber
Category: 62.5 Am MM (OM1)
Keyed: No
Product Type (FOJP): Field-Installable
Connectors Technology: No-Epoxy/No-Polish
Boot Color: Beige
Connector Ferrule Material: Ceramic Connector
Housing Color: Beige Connector
Housing Material: Composite
Design - Connector Type: SC
Connector Durability: = 0.2 dB change by 500 rematings, FOTP-21 Nominal Fiber
Outer Diameter: 125 Am
Temperature Cycling: = 0.3 dB IL, -40A to +75AC, 21 cycles Tensile Strength 900A
Cable (Metric): 4.9 N. change = 0.2 dB. FOTP-6 Tensile Strength 900A
Cable (US): 1.1 lb. change = 0.2 dB. FOTP-6 Tensile Strength Jacketed
Cable (Metric): 50 N. change = 0.2 dB. FOTP-6 Tensile Strength Jacketed
Cable (US): 11 lb. change = 0.2 dB. FOTP-6 Insertion Loss, Max_
(Connector): 0.5 dB Insertion Loss, Typical
(Connector): 0.1 dB
Reflectance (Connector): = -26 dB Temperature -
Operation (Metric): -40 AC to 75 AC exceeding EIA/TIA 568-B. 3 Temperature -
Operation (US): -40 AF to 167 AF exceeding EIA/TIA 568-B.
3

Specifications

:
Warranty: Lifetime
Weight: 0.04 lbs
