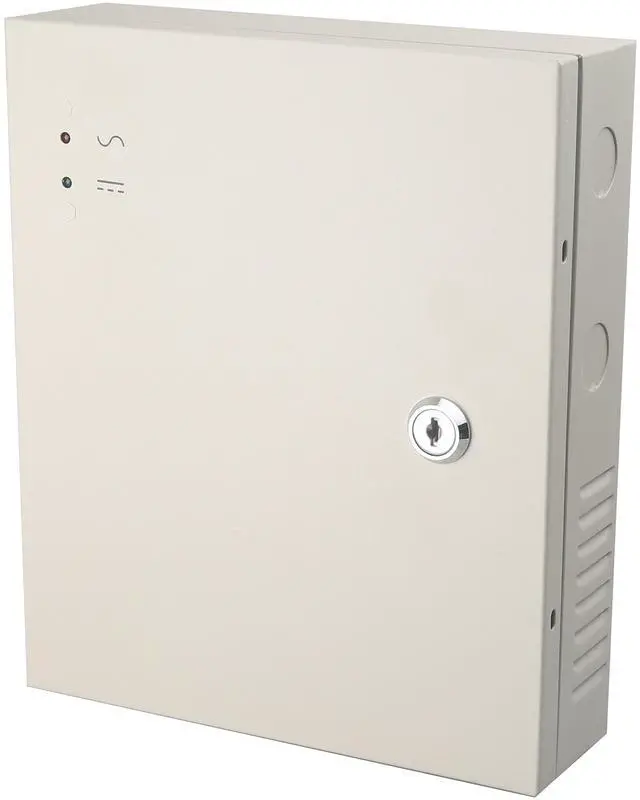

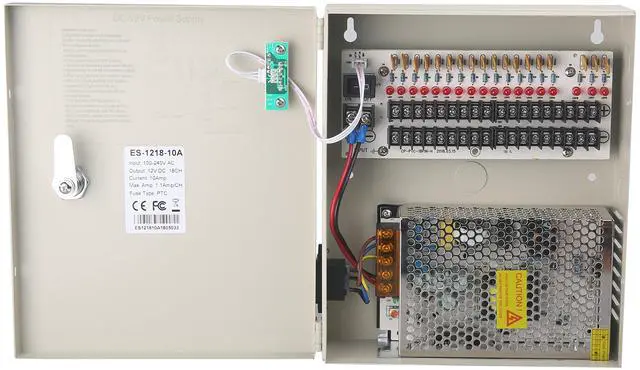

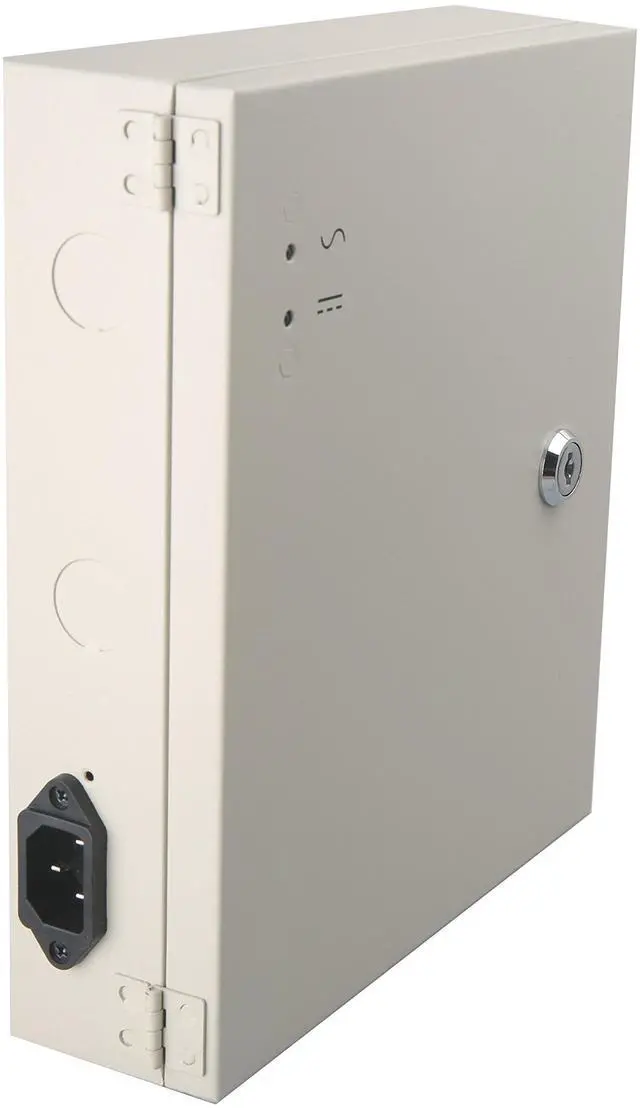

EVERSECU 18 Channel DC12V 20 Amp Reset Fuse CCTV DC Distributed Power Box with AC Plug and Lock for Security Cameras, DVRs, CCTV Power Supply
- Input: 100-240VAC; Output: 12VDC ; Supply Current: 20Amp; Max. Amp: 1.1Amp/Channel; DC12V Regulator CCTV Power Supply Box, 18 Outputs with PTC Fuse
- General protection: each output has independent PTC fuse and LED indicator, Lightning Protection, Life Time 100000 hours, when problem occurs, only affect the independent output, other outputs still working.
- Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
- Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
- New Metal housing, Compressive, Wear-resisting Reinforcement Enclosure Structure,Use more Safety and Convenience, Lock with keys and AC Plug are included
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control, etc. Packing Dimension 250 x 215 x 94 mm
Net Weight 2.3K gSpecification: Input Voltage AC 100-240VInput Voltage Frequency 50/60HzOutput Voltage DC 12V +/-5%Total Output Current 20ATotal Outputs 18Fuse Type PTC (Resetable) Fuse Rating 1.1A
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control, etc. Packing Dimension 250 x 215 x 94 mm
Net Weight 2.3K gSpecification: Input Voltage AC 100-240VInput Voltage Frequency 50/60HzOutput Voltage DC 12V +/-5%Total Output Current 20ATotal Outputs 18Fuse Type PTC (Resetable) Fuse Rating 1.1A
