Sprinter Brake Light Backup Camera System Compatible for Transporter Sprinter W906 2007-2018/Crafter Truck Vans 2007-2016 (with 7 inch Monitor)

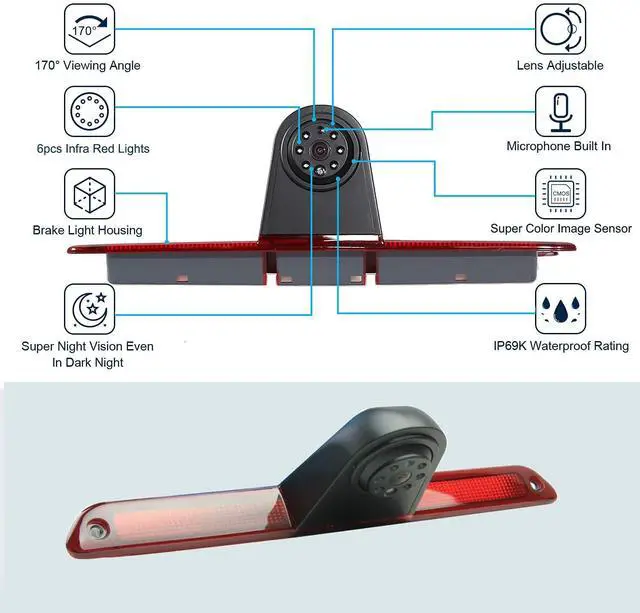

- ApplicabilitySprinter Brake light camera suit for Sprinter / Crafter brake light camera use for 2007-now, replace your oringinal brake light to this sprinter brake light camera it is very easy to install without no holes to be drilled
- High Quailty ImageMercedes Sprinter Brake light camera used super CMOS which have more color Image rather than White-black image, 6 IR LEDs with light sensor for night mode which you can see clear in the dark

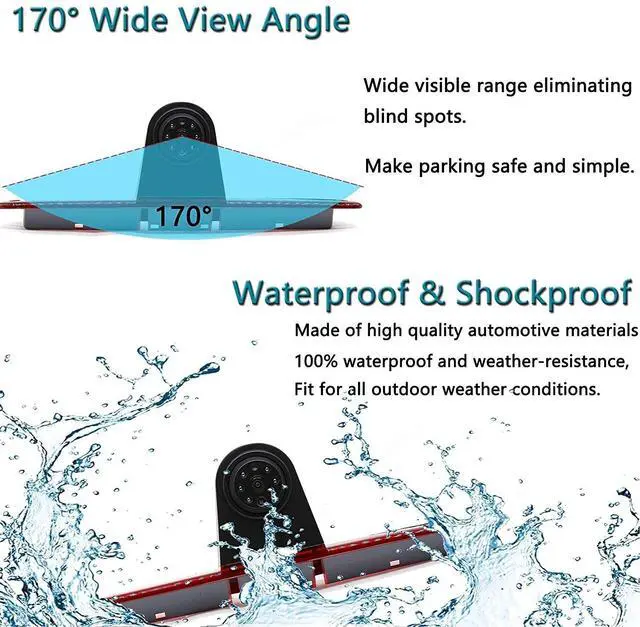

- Night vision&Waterproof 6 IR LEDs with light sensor for night mode which you can see clear in the darkIP68 grade ensure long life time and stable work for years.
- Brake light camera functionWhen you connect green cable with 12V ,and connect the white 4Pin plug wiht the brake light camera . the image of reversing will auto in the rearview displayer.
- Menu settingWith the menu button, brightness/contrast/hue/ language is adjustable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brake Light Camera for Sprinter/ Crafter vans with 7 Inch TFT High Resolution LCD Widescreen Rearview Mirror Monitor Parking System(The camera use car's original brake LED light, it is without brake LED light.
Note: For after installed medias or screens with RCA video input only, it is NOT for orignal Car media directly! )All below models as expected: Sprinter W906 2007-2018Crafter
Vans 2007-2018Sensor type: super
CMOSTV system: NTSC
Resolution: 480
TV linesLens angle: 120Video
Color: ColorfulPower
supply: DC 12VWhite
Balance: AutoWaterproof
Class: IP
66Sensor resolution: 628 x 586
PixelsMinimum illumination: 0.1 LUX
Interface (Video Out): RCA (CVBS), 1.0V p-p.
75Image orientation: MirrorWorking
temperature range: -23F

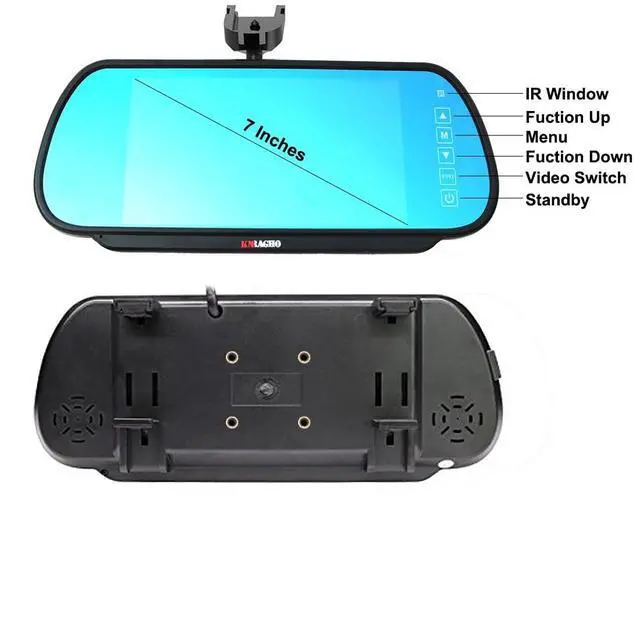

to +167FParking line: NO by default (yes by cut line) 7 inch TFT Color LCD Screen 2 Video Input Car Rear View
Mirror MonitorSpecification:
Color: BlackDisplay
Component: Color TFT-LCD 7" 16:9 TFT
LCD displayColor system: PAL/NTSC
Dual video input: V1 /V2humanization design, touching screen buttonrear view in priorityVideo system: NTSC/PAL
Signal system: PAL/NTSC
auto switchMode: Selecting results of display AV signal auto detecting power on/off Under power-off condition. When reverse gear is on, the system automatically starts to search for the camera signal and display backup video. When parking is finished, it

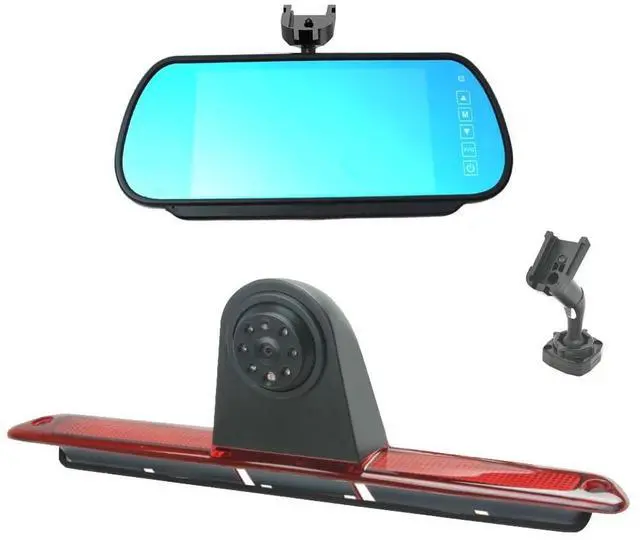

will switch off automaticallyAccessories: 1 X Sprinter brake light camera1 X 10 meters 4PIN video extension cable1 X7 Inch monitor1 X monitor power cable
Note: For after installed medias or screens with RCA video input only, it is NOT for orignal Car media directly! )All below models as expected: Sprinter W906 2007-2018Crafter
Vans 2007-2018Sensor type: super
CMOSTV system: NTSC
Resolution: 480
TV linesLens angle: 120Video
Color: ColorfulPower
supply: DC 12VWhite
Balance: AutoWaterproof
Class: IP
66Sensor resolution: 628 x 586
PixelsMinimum illumination: 0.1 LUX
Interface (Video Out): RCA (CVBS), 1.0V p-p.
75Image orientation: MirrorWorking
temperature range: -23F
to +167FParking line: NO by default (yes by cut line) 7 inch TFT Color LCD Screen 2 Video Input Car Rear View
Mirror MonitorSpecification:
Color: BlackDisplay
Component: Color TFT-LCD 7" 16:9 TFT
LCD displayColor system: PAL/NTSC
Dual video input: V1 /V2humanization design, touching screen buttonrear view in priorityVideo system: NTSC/PAL
Signal system: PAL/NTSC
auto switchMode: Selecting results of display AV signal auto detecting power on/off Under power-off condition. When reverse gear is on, the system automatically starts to search for the camera signal and display backup video. When parking is finished, it
will switch off automaticallyAccessories: 1 X Sprinter brake light camera1 X 10 meters 4PIN video extension cable1 X7 Inch monitor1 X monitor power cable
