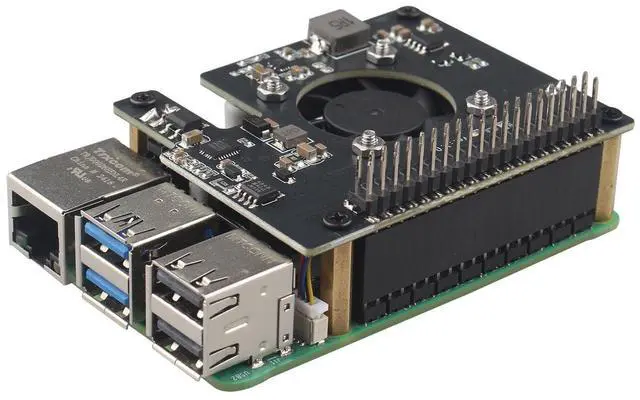

ZDE ZP580C PoE+ HAT with PWM Cooling Fan Aluminum Alloy Heatsink for Raspberry Pi 5 Power Over Ethernet HAT Adapter Board Supports 802.3af/at Network Standard
- The PoE+ HAT expansion board is an 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. With Standard Pi 40PIN GPIO stackable header, allows connecting other HATs and peripherals.

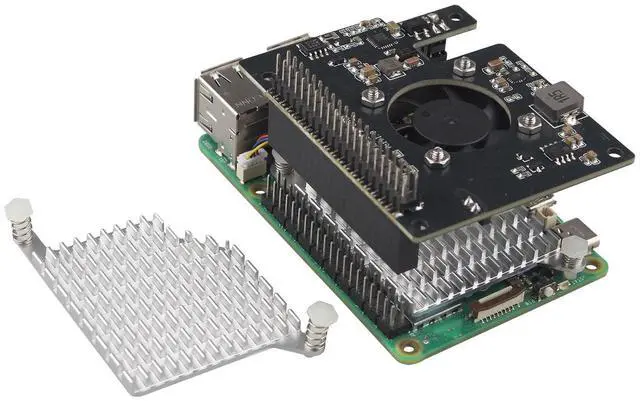

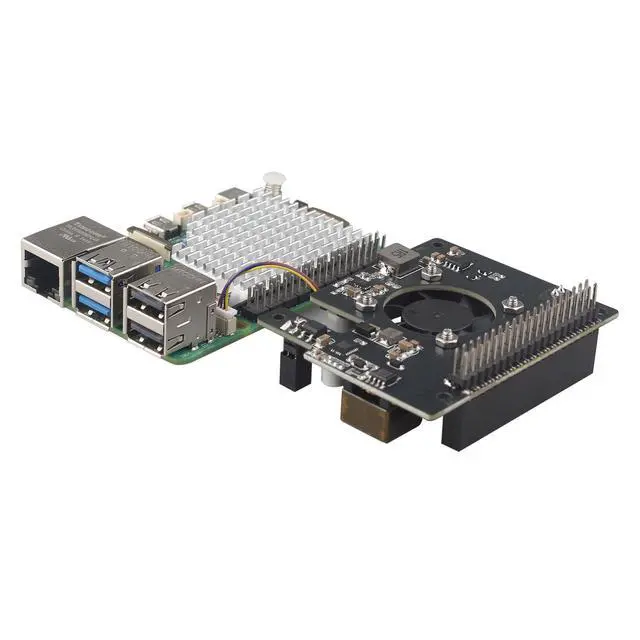

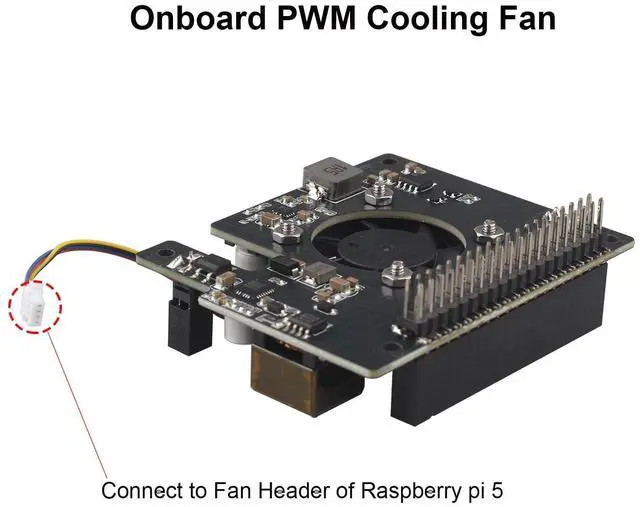

- Based on feedback from customers of ZP580 PoE+ HAT, we have improved the product. The ZP580C PoE+ HAT adopts the onboard PWM cooling fan, which supports speed adjustment according to temperature. Its also equipped with an aluminum alloy heatsink, providing better heat dissipation effect and more stable operation performance.

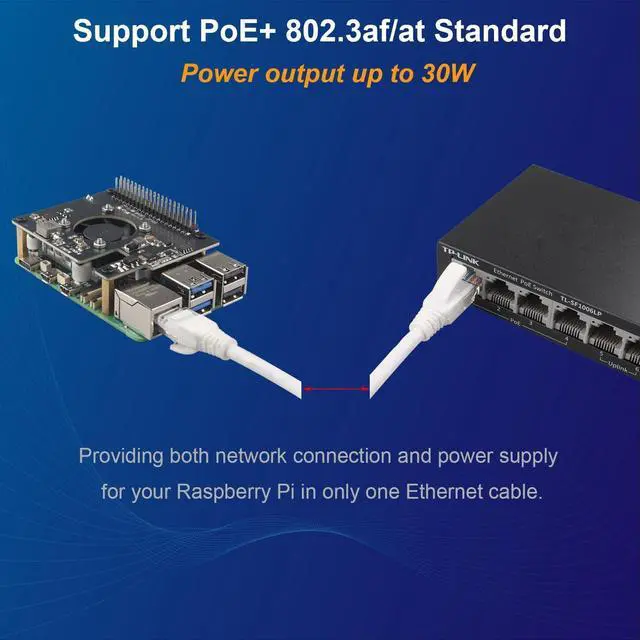

- Suitable for use with a PoE router or switch that supports the IEEE 802.3af/at networking standard. Providing both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Comes with onboard 5V & 12V header outputs. 5V header provides up to 4.5A output (MAX 30W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi.
- Suitable for use with aluminum alloy case kit. For aluminum
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The PoE+ HAT expansion board is an 802.3 af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. With Standard Pi 40PIN GPIO stackable header, allows connecting other HATs and peripherals. ^^ Based on feedback from customers of ZP580 PoE+ HAT, we have improved the product. The ZP580C PoE+ HAT adopts the onboard PWM cooling fan, which supports speed adjustment according to temperature. Its also equipped with an aluminum alloy heatsink, providing better heat dissipation effect and more stable operation performance. ^^ Suitable for use with a PoE router or switch that supports the IEEE 802.3 af/at networking standard.
Providing both network connection and power supply for your Raspberry Pi in only one Ethernet cable. ^^ Comes with onboard 5V & 12V header outputs. 5V header provides up to 4.5A output (MAX 30W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi. ^^ Suitable for use with aluminum alloy case kit. For aluminum alloy enclosure, please refer to
ZC501(ASIN: B0DSZYLMSS).
Providing both network connection and power supply for your Raspberry Pi in only one Ethernet cable. ^^ Comes with onboard 5V & 12V header outputs. 5V header provides up to 4.5A output (MAX 30W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi. ^^ Suitable for use with aluminum alloy case kit. For aluminum alloy enclosure, please refer to
ZC501(ASIN: B0DSZYLMSS).
