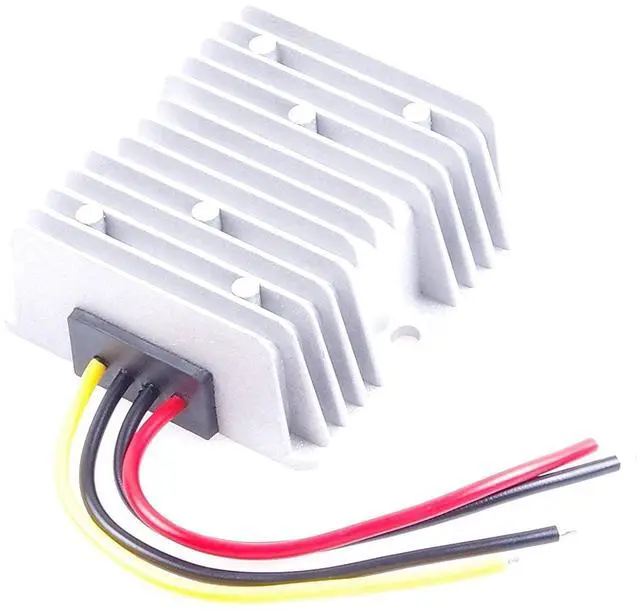

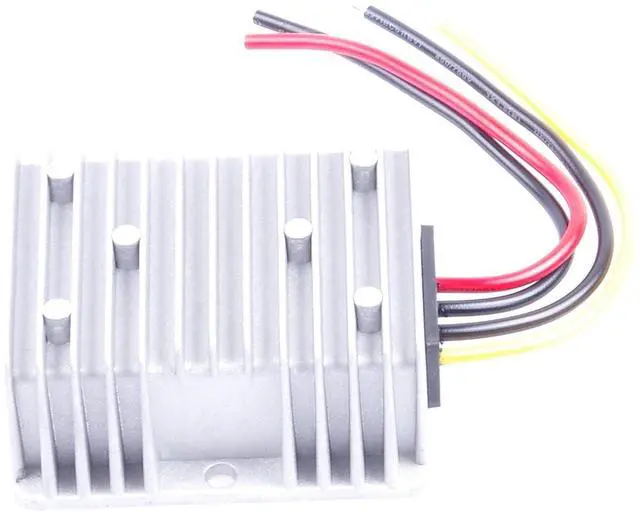

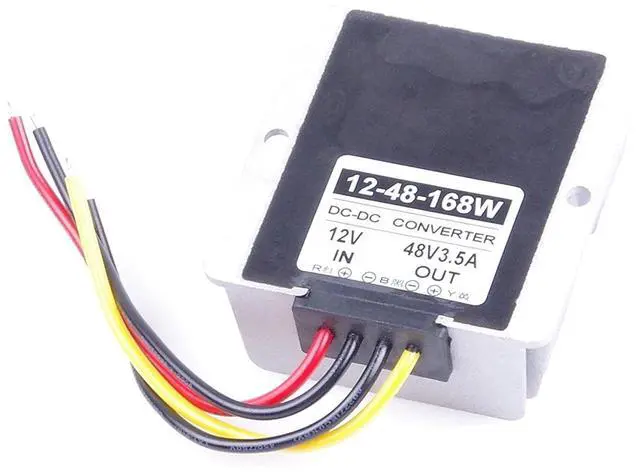

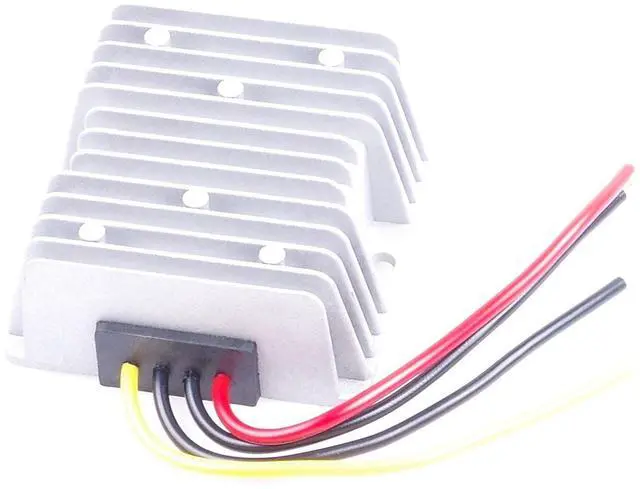

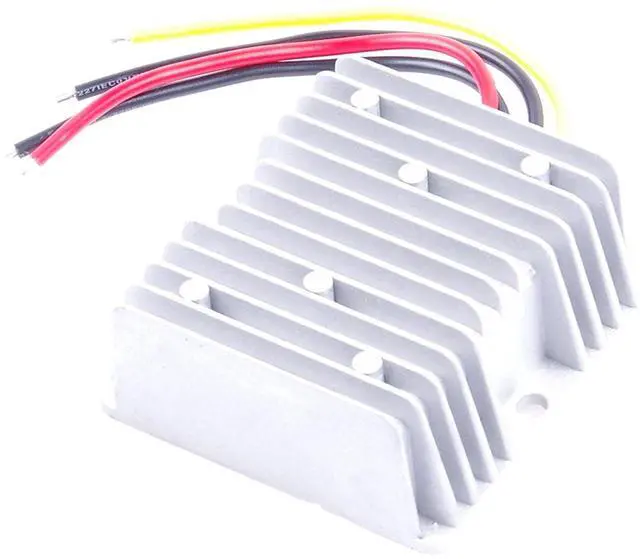

KNACRO Voltage Converter Regulator DC 12V Step-Up to DC 48V 3.5A 168W Power Boost Waterproof
- Waterproof IP68 Voltage Converter Regulator DC 12V to DC 48V 3.5A 168W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
- Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.
- Widely used in bus, cmb, large trucks, motor, solar generate electricity, display screen of bus and taxi, car audio device.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
100% full power and stable current output, non-isolated module. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. Industry grade DC 12V to DC 48V step-up converter, efficiency up to 95%. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 1 year warranty, lifetime up to 100, 000 hours.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-18V DC*
Output voltage: DC 48V 3.5A *
Output Rated Power: 168W*
Efficiency: 95% (half load); 94% (full load) *
Output Peak Power: 180W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 150mV*
No-load Current: 25mA*
Total Size: 74*74*32mm (L*W*H) *
Weight: 260gPackage
included: 1 x DC 12V to DC 48V Voltage Converter
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications
: *Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-18V DC*
Output voltage: DC 48V 3.5A *
Output Rated Power: 168W*
Efficiency: 95% (half load); 94% (full load) *
Output Peak Power: 180W*
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 150mV*
No-load Current: 25mA*
Total Size: 74*74*32mm (L*W*H) *
Weight: 260gPackage
included: 1 x DC 12V to DC 48V Voltage Converter
