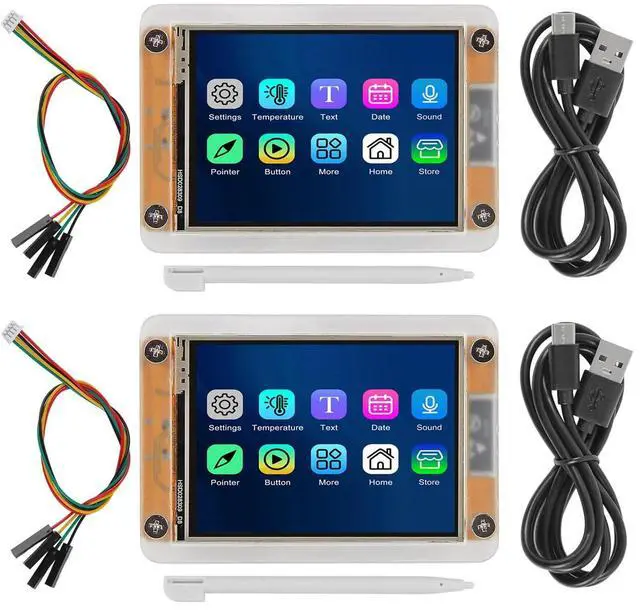

AITRIP 2 Pack 2.8" ESP32 Display ILI9341 Driver with Acrylic Case, 2.8inch ESP32-2432S028R ESP32 Display 240x320 Resistive Touchscreen TFT LCD, ESP32 Development Board for Arduino IDE
- The ESP32 display screen is controllable and can be used for APP remote control, remote environmental data collection and remote. Data , remote parameter setting and other batch development applications.
- ESP32-2432S028 development board is based on the ESP32-DOWDQ6 controller, low-power, dual-core CPU, clock frequency up to 240MHZ, integrates a wealth of resource peripherals, high-speed SDIO,SPI, UART and other functions
- Application: Home smart device image transmission, Wireless monitoring, Smart agriculture QR wireless recognition, Wireless positioning system signal, And other IoT applications(User manual available if do as follow: click "AITRIP"(you can find "Sold by AITRIP" under Buy Now button), in the new page, click "Ask a question".)we will send you the manual asap
- ESP32 WIFI&Bluetooth Development Board 2.8 " 240*320 Smart Display Screen 2.8inch LCD TFT Module With Touch WROOM; Support: 1: UART/SPI/I2C/PWM/ADC/DAC and other interfaces 2:OV2640 and
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

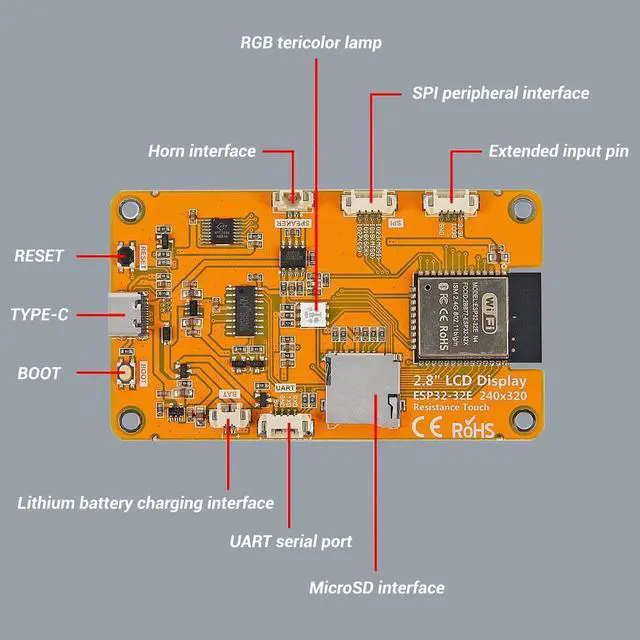

DescriptionComes with ESP32-32E module, easy development, sufficient development resources 2.8 -inch color screen, 240x320 resolution, the maximum support is 262K color (RGB666), display rich colorRich interface, easy to connect a variety of peripherals (SPI, UART, etc. )Supports external speakers to play audioComes with RGB three-color indicator, indicating rich statusComes with resistive touch screen, easy man-machine interactionStandard TYPE-C interface for easy program download and power supplyEquipped with micro TF card slot for easy storage expansionSupport external lithium battery, lightweight and portableEquipped with battery charging management circuit to ensure safe battery charging and dischargingProvide rich example learning programs, easy to learnProvide low-level driver technical support, and update WIKI information onlineMultiple tests for module aging can meet military level standards, supporting
long-term stable workFeature: Display
Color: RGB
65K colorModel:
ESP32-2432S028RType: TFT
Touch: Resistive
touchDriver chip:
ILI9341Resolution: 320x240 (Pixel) Effective
Display Area: 43.2 x 57.6 (mm)

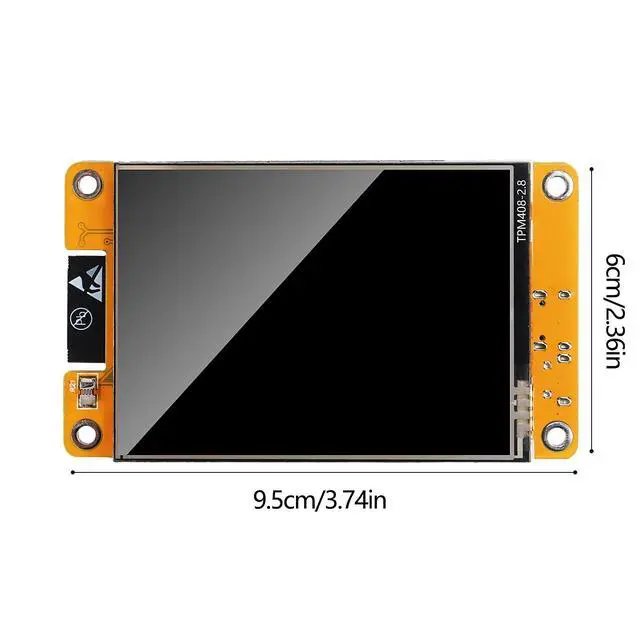

Module Size: 50.0 x 86.0 (mm)
Operating Voltage: 5VPower
Consumption: About 115mAAcrylic

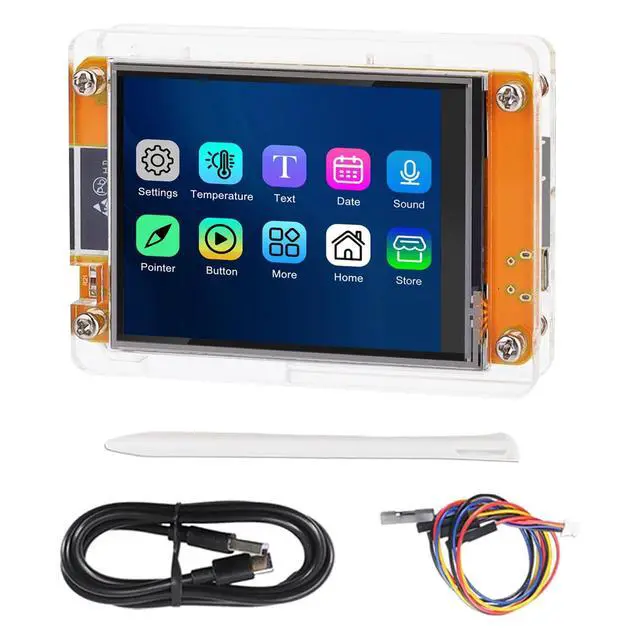

Case for ESP32-2432S028RPackage: 2PCS 2.8 inch ESP32-32E
Display Driver chip: ILI9341 with Case
long-term stable workFeature: Display
Color: RGB
65K colorModel:
ESP32-2432S028RType: TFT
Touch: Resistive
touchDriver chip:
ILI9341Resolution: 320x240 (Pixel) Effective
Display Area: 43.2 x 57.6 (mm)
Module Size: 50.0 x 86.0 (mm)
Operating Voltage: 5VPower
Consumption: About 115mAAcrylic
Case for ESP32-2432S028RPackage: 2PCS 2.8 inch ESP32-32E
Display Driver chip: ILI9341 with Case
