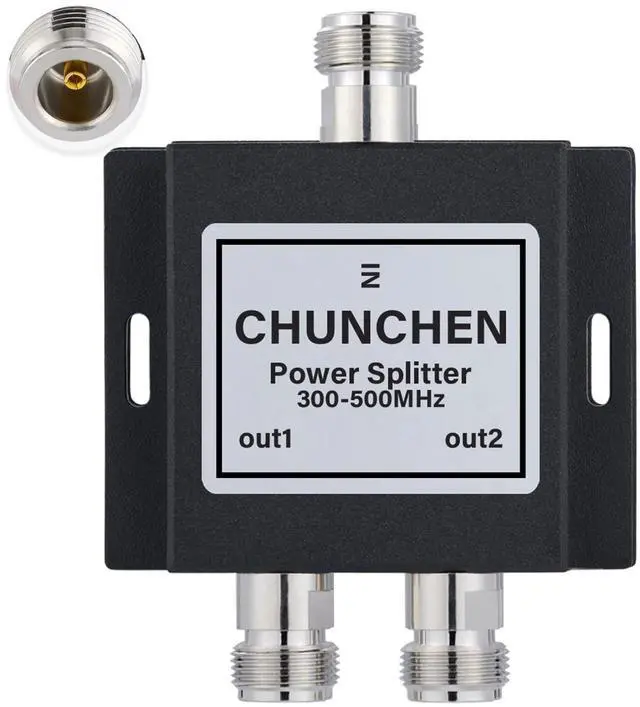

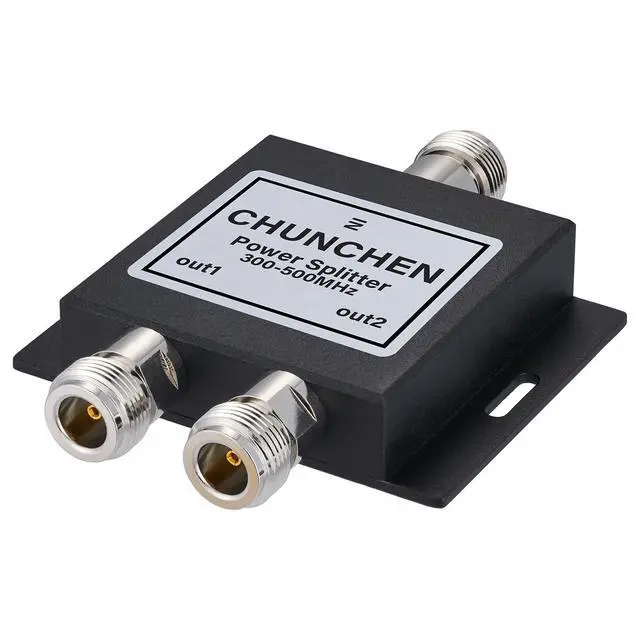

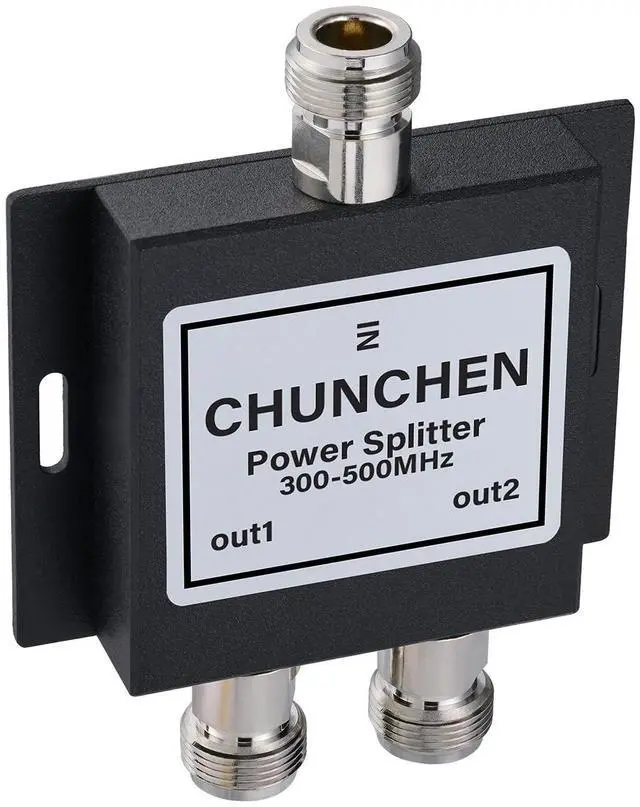

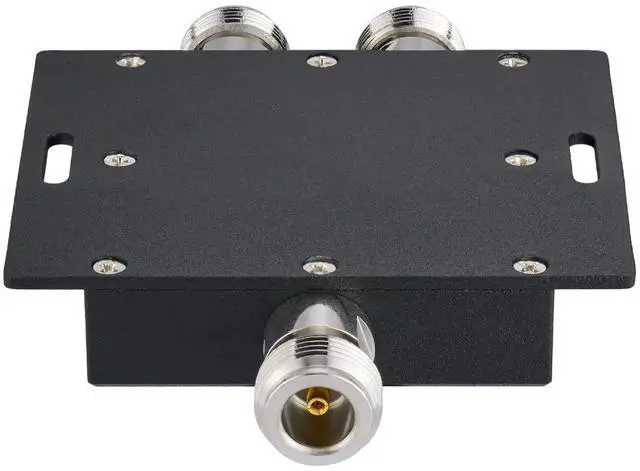

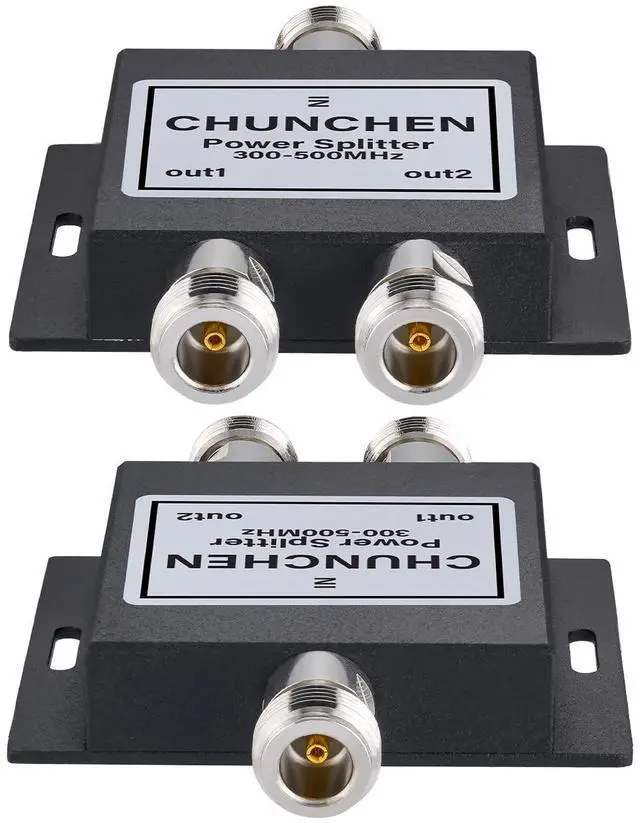

CHUNCHEN 2 Way N Female Connector Signal Splitter 50 Ohm Power Splitter 300MHz-500MHz N Female Walkie Talkie Signal Splitter 1 Input 2 Output
- Product name: N female 2 way walkie talkie power splitter 1 input 2 out;
- Connector port: 1 input and 2 output; Output port type: 2 way; Connector type(Input): N female; Connector type(Output 1): N female; Connector type(Output 2): N female; Product material(Body): Aluminum alloy; Connector material: Copper;
- Specification: Frequency range (GHz): 300-500Mhz; Insertion loss (dB): 3.47-3.57; Isolation (dB): 20; VSWR: 1.11, 1.21; Amplitude balance (dB): 0.3; Phase balance (): 5; Impedance (): 50; Power capacity (W): 50; Operating temperature (C): -30+70; Product dimensions (cm): 10.2*7.8*1.5cm;
- Applicaion: Provides 2 amplified N female output ports for use with walkie talkies;
- Package: 1 x N female 2 way signal splitter(Weight:180.2g).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product name: N female 2 way walkie talkie power splitter 1 input 2 out; ^^
Connector port: 1 input and 2 output;
Output port type: 2 way;
Connector type (Input): N female;
Connector type (Output 1): N female;
Connector type (Output 2): N female;
Product material (Body): Aluminum alloy;
Connector material: Copper; ^^
Specification: Frequency
range (GHz): 300-500Mhz;
Insertion loss (dB): 3.47 - 3.57;
Isolation (dB): 20;
VSWR: 1.11, 1.21;
Amplitude balance (dB): 0.3;
Phase balance (): 5;
Impedance (): 50;
Power capacity (W): 50;
Operating temperature (C): -30+70;
Product dimensions (cm): 10.2 * 7.8 * 1.5 cm; ^^
Applicaion: Provides 2 amplified N female output ports for use with walkie talkies; ^^
Package: 1 x N female 2 way signal splitter(Weight: 180.2 g).
Connector port: 1 input and 2 output;
Output port type: 2 way;
Connector type (Input): N female;
Connector type (Output 1): N female;
Connector type (Output 2): N female;
Product material (Body): Aluminum alloy;
Connector material: Copper; ^^
Specification: Frequency
range (GHz): 300-500Mhz;
Insertion loss (dB): 3.47 - 3.57;
Isolation (dB): 20;
VSWR: 1.11, 1.21;
Amplitude balance (dB): 0.3;
Phase balance (): 5;
Impedance (): 50;
Power capacity (W): 50;
Operating temperature (C): -30+70;
Product dimensions (cm): 10.2 * 7.8 * 1.5 cm; ^^
Applicaion: Provides 2 amplified N female output ports for use with walkie talkies; ^^
Package: 1 x N female 2 way signal splitter(Weight: 180.2 g).
