MAXKGO 6S-24S 150A Smart BMS Battery Protection Board Based On VESC

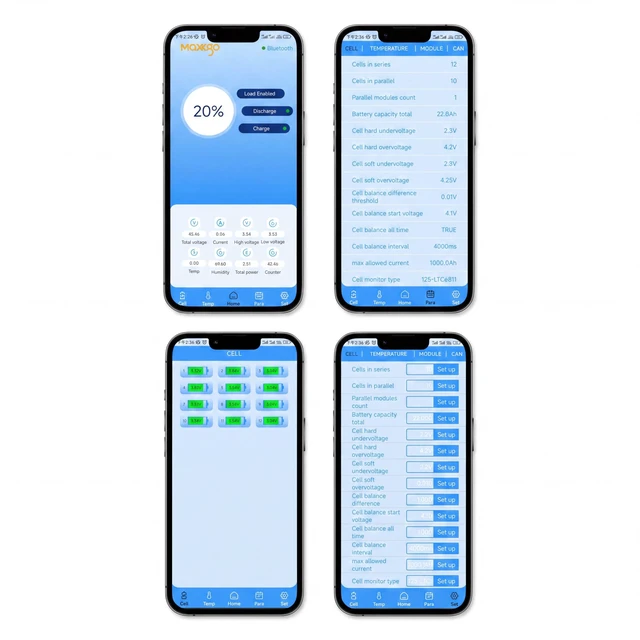

"This MAXKGO 6S-24S smart BMS fits 6S-24S Li-ion and LiFePO4 battery packs, supporting 150A max discharge and 30A max charge current. It achieves precise cell voltage detection from 2V to 5V (2mV error) with 28mA passive balancing at 4.2V. Built with 10 NTC temperature sensors, it provides wide -30C~+125C temperature monitoring and full protection against overcharge, overdischarge, overheat, overcurrent, short circuit and disconnection, with only 8% SOC estimation error. Featuring Bluetooth, UART and CAN communication, this BMS is fully compatible with VESC protocol and VESC-TOOL. You can monitor real-time battery data, adjust parameters and upgrade firmware remotely via Android APP or PC software.

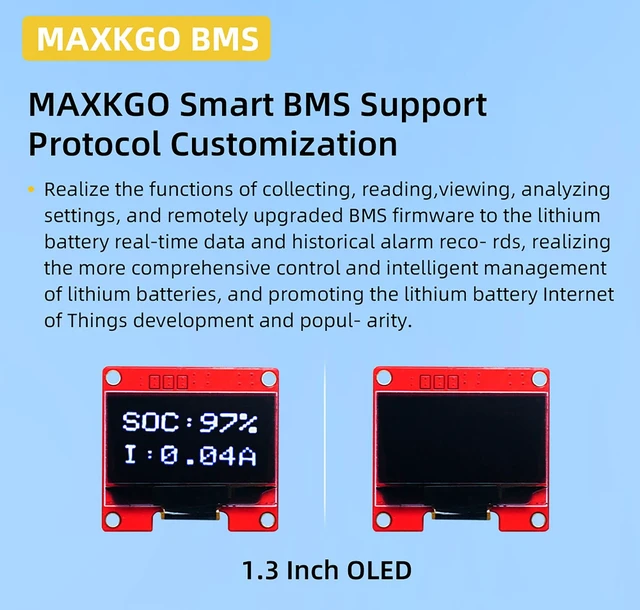

The 1.3 -inch OLED display supports on-site data viewing, with auto charge start and auto power-off after fully charged or unplugged, and optional adjustable passive balance function. Equipped with an anodized aluminum heat sink, it ensures stable heat dissipation and reliable performance. It has ultra-low power consumption and supports 15V-118V battery voltage (max 120V). The working temperature ranges from -20C to +75C, with 0C~100C charge protection and reset temperature. Widely suitable for e-bikes, scooters, skateboards, EUCs, forklifts, robots and more electric devices. Operation Notes 1.

Ensure the correct wiring sequence of B0-B12 and B13-B24, with voltage increasing sequentially from low to high. 2. The 24S battery pack full-charged voltage exceeds 102V. High voltage electric shock may cause serious injury, please strictly abide by safety operation specifications during use. Full Package List 1* MKBMS 6S-24S Smart Bluetooth VESC BMS Board (With aluminum shell) 1* Bluetooth module 1* UART module 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 1* GH 1.5 single head 5P line 1* GH 1.25 -5P to Dupont line 1* PH 2.0 single head 13P line 1* PH 2.0 single head 12P line 1* PH 2.0 single head 8P line"
