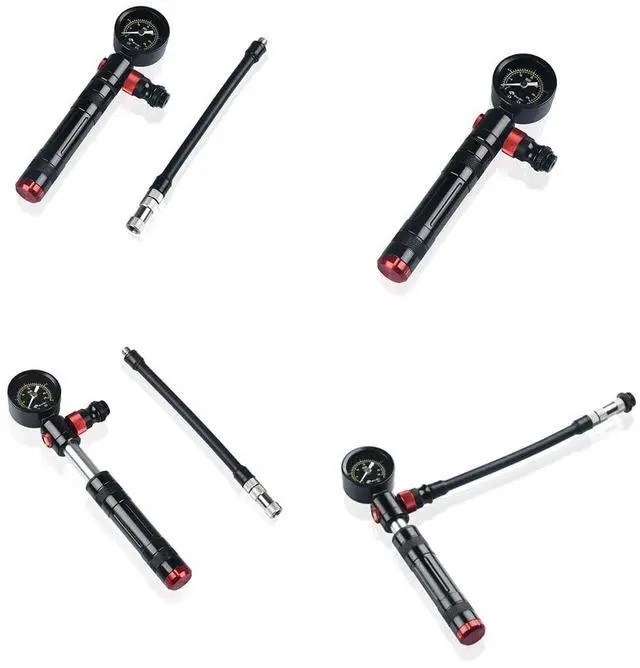

Bykski Sealing Leak Tester Air Pressure Test Tools for Water Cooling System

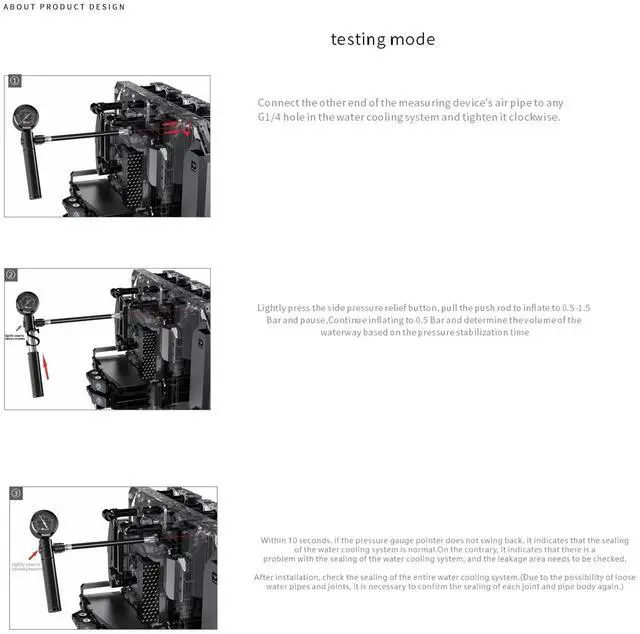

Instructions for use: First unscrew the plug on the water-cooling head module, then use the gas measuring device to align the water-cooling module clockwise and tighten it tightly, and then pull out the side-gas device extension tube to air into the water-cooling system.
Test method 1: After the gas measuring equipment is connected to the water cooling system, pump air into the water cooling system until the barometer needle is positioned between 0.3 bas and 0.4 bas(it should not exceed 0.4 bas, because the pressure is too hight, which may cause the pipe to fall off and other risks), and determine how much gas should be filled according to the size of the internal channel space.

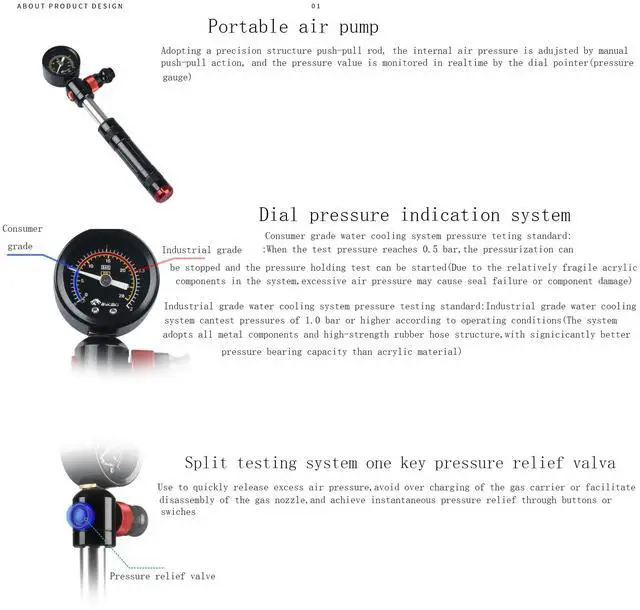

Test method 2: Within 10 seconds, the barometer pointer will not swing back, indicating that the water cooling system sealing is normal, otherwise, indicating that there is a problem with the water cooling system sealing, need to check the leakage place. After installation, chack the tightness of the whole water cooling system. (Due to possible looseness of water pipes and joints, it`s necessary to re-confirm the tightness of each fittings and pipe body). The Bykski-Leak Tester is a fast and safe way of testing for possible leaks in your liquid cooling loop. The main body is a solid piece of CNC machined aluminum. The gauge is custom made for liquid cooling loop testing purposes which clearly marks the safe pressure for testing.
