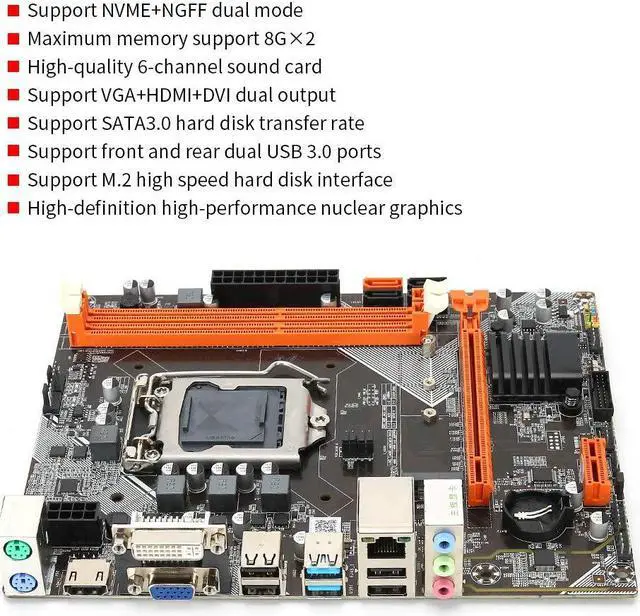

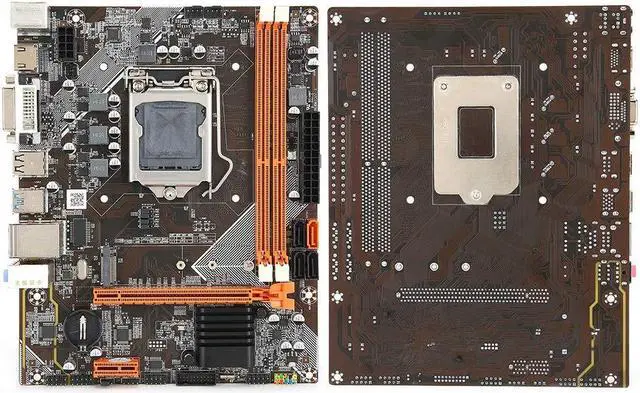

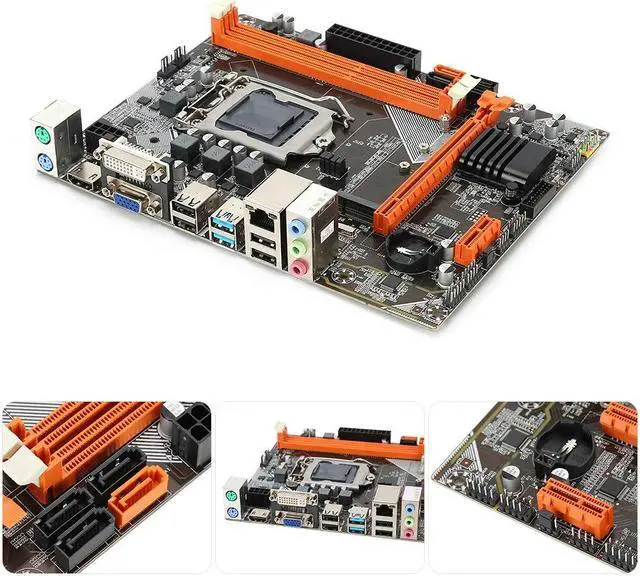

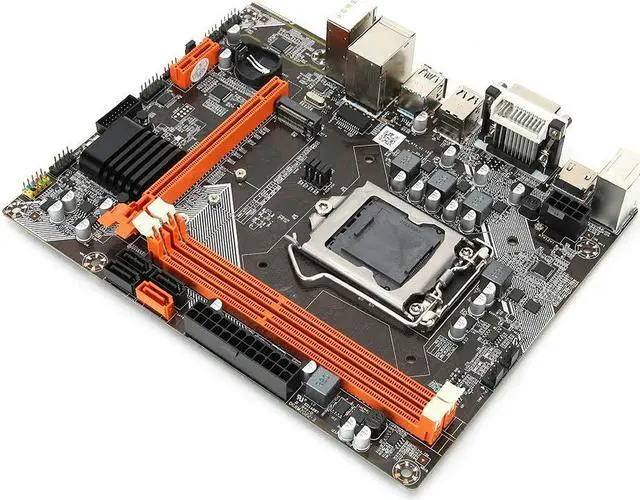

M ATX Desktop Motherboard for Intel B75, NVME&NGFF Dual Mode M.2 High-Speed Hard Disk/CPU for LGA 1155Pin/2X DDR3 1600/1333/1066 MHZ/1X PCI EX16 Graphics Card Slot Motherboard

Specification:

Item Type: Desktop Motherboard
Motherboard Type: M-ATX
Motherboard Chip:
Integrated chip sound card/network card nuclear display graphics card
Main Chipset: for Intel B75
network Card Chip Integration: RTL8111H Gigabit network card
Audio Chip Integration: 6-channel audio chip
Maximum memory support 8G×2
Peak Memory Capacity: 16G x 2 DDR3
Processor

Specifications

:
CPU Socket: LGA 1155
CPU Type: Second and third generation i3, i5 and i7 Pentium Celeron series
Number of CPUs Supported: 1
Memory

Specifications

:
Memory Type: DDR3 1600/1333/1066 MHZ
Memory Slot: 2xDDR3
Expansion Slot:
1 x PCI-EX16 graphics slot
1 x PCI-EX1 slot
1 x M. 2 interface with NVME/SATA mode conversion jumper
2 x USB 2.0 pin
1 x USB 3.0 pin
3 x SATA 2.0 interface, 1xSATA 3.0 interface
I/O Interface:
For ps2 1 mouse and keyboard
1 x RJ45 network interface (Gigabit)
1 x VGA port
1 x DVI interface
1 x HDMI HD output
4 x USB 2.0 interface
2 x USB 3.0 interface
Audio Port
One 8-pin power socket (can be connected to the middle end of the 4-pin backing board), one 24-pin power interface, power supply mode 3+1
Battery Model: CR2023L (delivery without battery)


Package List:
1 x B75 Desktop Motherboard
1 x ATA Cable
1 x Slot Board

Note:
Need to install batteries for the motherboard to work
