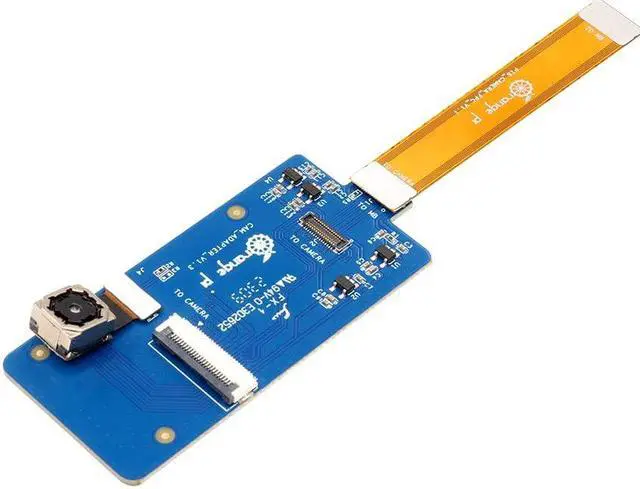

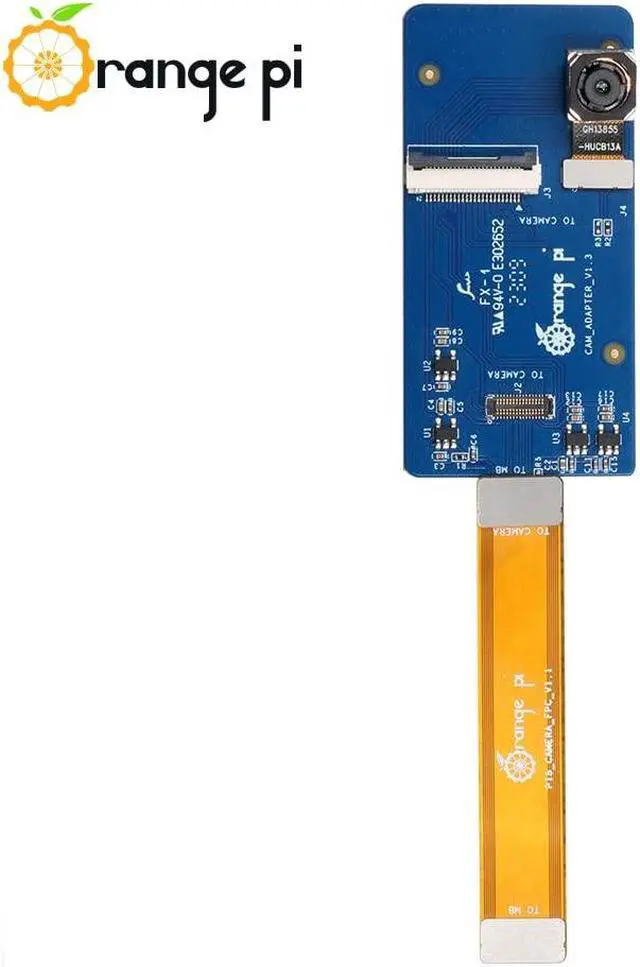

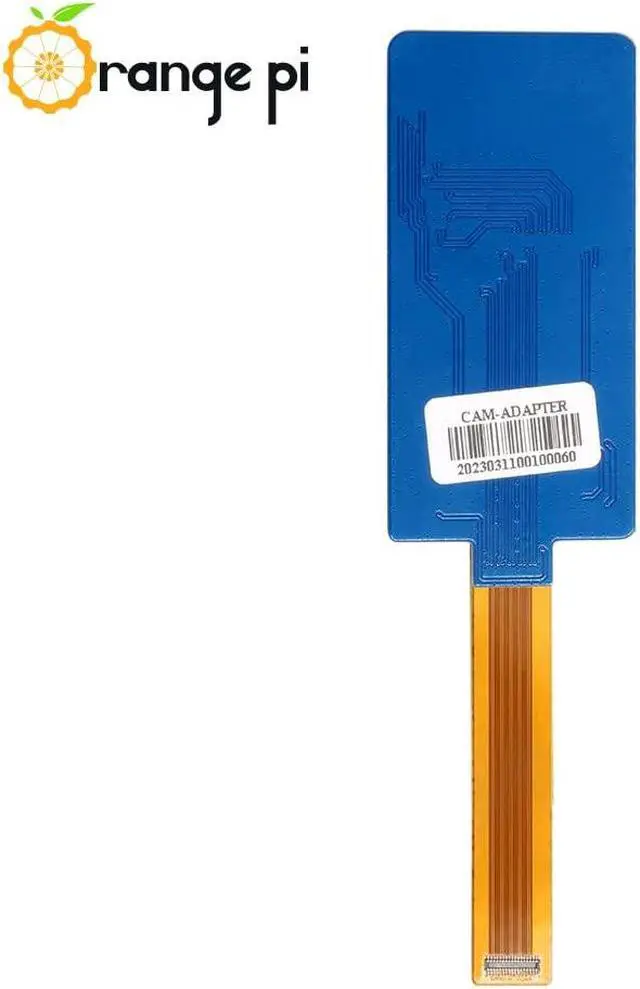

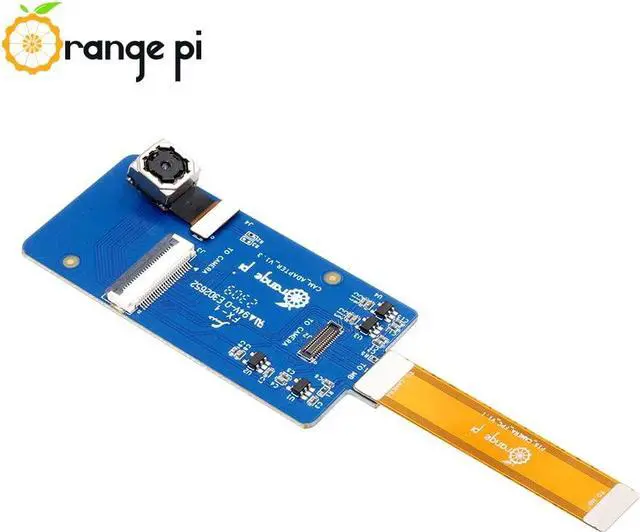

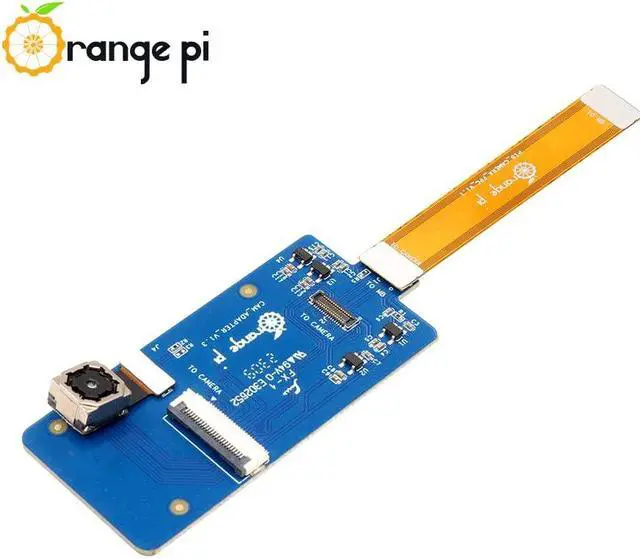

Orange Pi 5 13MP Camera Module 13855 Webcam Focal Length 3000mm, 1300W Pixels Camera Compatible with RK3358/3358S Orange Oi 5/5B, 5 Pro, 5 Plus Single Board Computers (13855)
- Orange Pi 13 megapixels 13MP Webcam, Compatible with Orange pi 5/5B/5 Plus Single Board Computers
- HD quality, Focal length: 3000 mm
- Special camera for RK3588RK3588S
- Include Content: 1 flat cable,1 camera,1 PCB
- Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch.Pretty much anything else, because Orange Pi is open source.
- Notice before order: By default, we won't responsible for customs clearance fee charged by your local.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ItemPerformance
Pixel: 1300W
Dynamic image resolution: 4256x3168
lmage resolution: Image
size support: 13MP (4224X3136) 10MP( 16.9 -4224x2376) 3MP2112x1568and more
Color number: 10-bit
Focal length: 3000 mm
F number: 2±5%
Shooting range: 0.1 m
View angle: 77.6 °
Distortion: <1.5
Relative illumination: 3900e-/ LUX-sec
Image transmission rate: 6~27MHz
White balance: Defect pixel correction, automatic black level calibration, and lens shading correction
Gain: 65dB @ 1x gaim
Exposure control: VTS-8
Output signal: 10-bit RGB RAW
Encoded output: Analog or digital video
Output pin: 49Pin
Working voltage: AVDD 2.8V /DOVDD 1.8V /DVDD 1.2V
Consumption: Active: 233mW (based on ISP ON)
Standby: 1mW
XSHUTDN: <10uA
Pixel: 1300W
Dynamic image resolution: 4256x3168
lmage resolution: Image
size support: 13MP (4224X3136) 10MP( 16.9 -4224x2376) 3MP2112x1568and more
Color number: 10-bit
Focal length: 3000 mm
F number: 2±5%
Shooting range: 0.1 m
View angle: 77.6 °
Distortion: <1.5
Relative illumination: 3900e-/ LUX-sec
Image transmission rate: 6~27MHz
White balance: Defect pixel correction, automatic black level calibration, and lens shading correction
Gain: 65dB @ 1x gaim
Exposure control: VTS-8
Output signal: 10-bit RGB RAW
Encoded output: Analog or digital video
Output pin: 49Pin
Working voltage: AVDD 2.8V /DOVDD 1.8V /DVDD 1.2V
Consumption: Active: 233mW (based on ISP ON)
Standby: 1mW
XSHUTDN: <10uA
