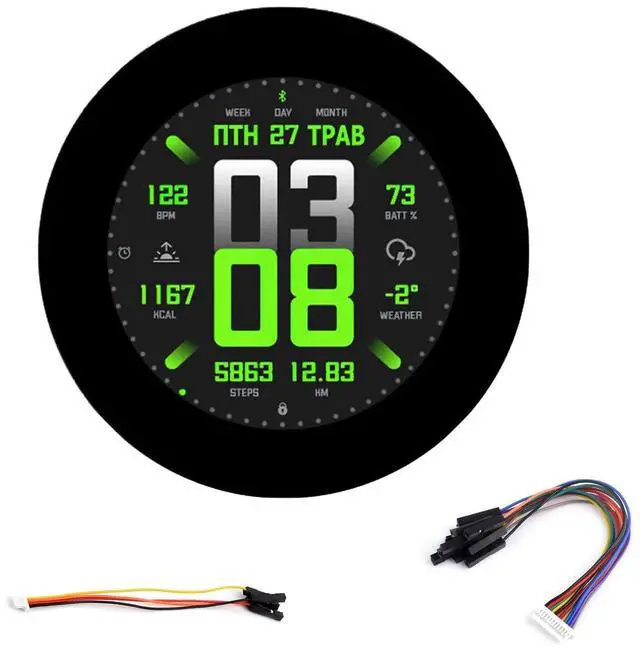

UeeKKoo ESP32-S3 2.8inch Capacitive Touch Round Display Development Board Development Board, 480x480 Resolution IPS Display, 32-bit LX7 Dual-Core Processor, ESP32 with Display, Supports WFi & BLE
- ESP32-S3 2.8inch Capacitive Touch Round Display Development Board, onboard 2.8inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
- Onboard 2.8inch capacitive touch display, 480×480 resolution. IPS Display Panel, Excellent display performance, 160° viewing angle.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.81 b/g/n) and BLE 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
- Supports touch control via I2C interface, with interrupt support. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port.
- Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to re
+
+
Overview
Specs
Reviews
UeeKKoo ESP32-S3 2.8 inch Capacitive Touch Round Display Development Board Development Board, 480x480 Resolution IPS Display, 32-bit LX7 Dual-Core Processor, ESP32 with Display, Supports WFi & BLE
