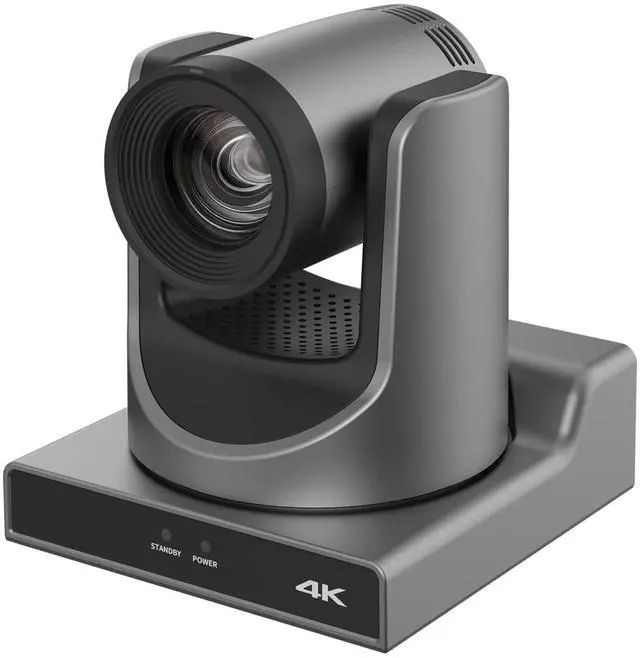

ADKIDO PTZ Camera, 4K 20X HDMI Camera Support AI Optical Zoom Video and POE with Network IP Live Streaming, Simultaneous 3G-SDI and USB Video Output, for Conferences, Church, Teaching

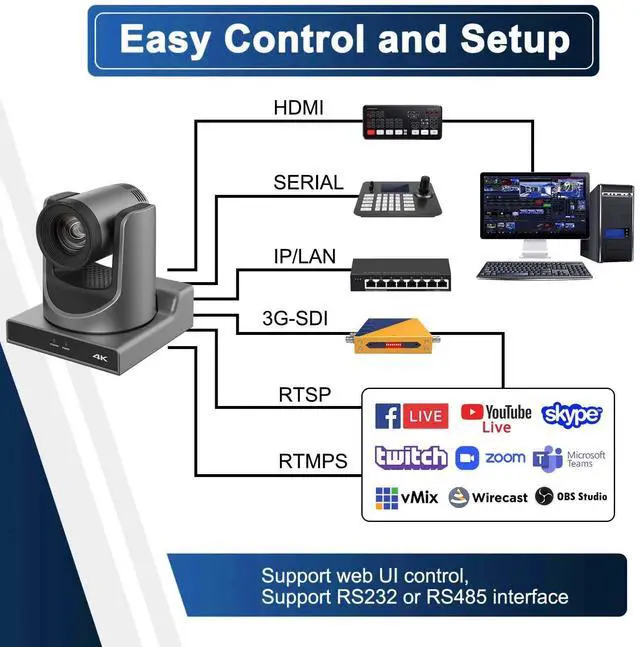

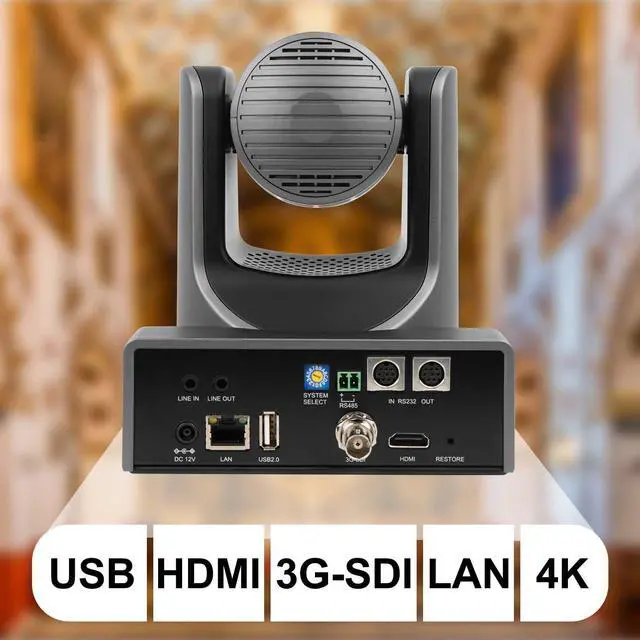

- Rich interfaces: Support HDMI2.0 high-definition output, can directly output 4Kp60 uncompressed digital video. Equipped with 3G-SDI interface, 3G-SDI effective transmission distance can reach 150 meters (1080p30). HDMI or 3G-SDI, USB and LAN can simultaneously output three-way high-definition digital signals.
- 20x optical zoom: Adopting a new generation of upgraded 1/1.8-inch high-quality UHD CMOS sensor 4K ultra-telephoto lens, 8 million pixels ultra-high resolution, it can achieve 4K (3840x2160) ultra-high resolution high-quality image quality. And backward compatible with 1080p, 720p and other resolutions. 20x optical zoom, maximum field of view up to 60°.
- Low illumination: The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise in low illumination. The application of 3D noise reduction algorithm can greatly reduce image noise. Even in ultra-low illumination, the picture is still clear and sharp, and the image signal-to-noise rati
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note: 4K PTZ camera 20X Optical Zoom Lens.
Video: 4K@60fps, 4K@ 59.94 fps, 4K@50fps, 4K@30fps, 4K@25fps, 4K@ 29.97 fps, 1080P@60fps, 1080P@50fps, 1080I@60fps, 1080I@50fp, 1080P@30fps, 1080P@25
Optical Zoom: 20x
Sensor: 1 / 1.8 -inch UHD CMOS sensor with a maximum of 8.42 million pixels
Scanning Mode: Progressive scanning
Lens: 20x, f = 6.25 mm ~ 125mm, F 1.58 ~ F 3.95
Minimal Illumination: 0.5L ux @ (F 1.8, AGC ON)
Electronic Shutter: 1/30s ~ 1/10000s
White Balance automatic, manual, one touch, Specifying color temperature, indoor, outdoor
Digital Noise Reduction: 2D, 3D digital noise reduction
Backlight Compensation: Supported
Video S/N 55dB
Horizontal Angle of View: 60.7 ° ~ 3.36 °
Vertical Angle of View: 34.1 ° ~ 1.89 °
Horizontal Rotation Range: ±170°
Vertical Rotation Range: -30° ~ +90°
Pan Speed Range: 1.7 ° ~ 100°/s
Tilt Speed Range: 1.7 ° ~ 69.9 °/s
H & V Flip: Supported
Image Freeze: Supported
Number of Preset: 255
Preset Accuracy: 0.1 °
Digital audio pickup: Built-in dual microphone array, 100Hz to 16KHz frequency response
Analog audio input: Supported 3.5 mm Line-In
Digital audio output: Supported USB, LAN, SDI, etc, adio output
Analog audio output: Supported 3.5 mm Line-Out
Operate System:
YUY2: MAX 1080P@30fps H. 264
AVC: MAX 2160P@30fps H. 265
HEVC: MAX 2160P@30fps MJPEG: MAX 2160P@30fps
macOS 10.10 and up
Google Chromebook Version 29.0. 1547.70 and up
Linux (only forUVC
Hardware Requirement
2.4 GHz Intel Core 2 Duo processor and up
2 GB internal storage and up
USB 3.0 interface
Color System / Compression YUY2/MJPEG/H. 264
Video FormatSupported video format of multi frame rate and resolution ratio, up to 1080P60 YUY2 output.
USB Video Communication ProtocolUVC 1.1 or UVC 1.5
Audio on USB: 32K sampling frequency, supported UAC 3.0
UVC PTZ: Supported
Video Compression: H. 264
Video: 4K@60fps, 4K@ 59.94 fps, 4K@50fps, 4K@30fps, 4K@25fps, 4K@ 29.97 fps, 1080P@60fps, 1080P@50fps, 1080I@60fps, 1080I@50fp, 1080P@30fps, 1080P@25
Optical Zoom: 20x
Sensor: 1 / 1.8 -inch UHD CMOS sensor with a maximum of 8.42 million pixels
Scanning Mode: Progressive scanning
Lens: 20x, f = 6.25 mm ~ 125mm, F 1.58 ~ F 3.95
Minimal Illumination: 0.5L ux @ (F 1.8, AGC ON)
Electronic Shutter: 1/30s ~ 1/10000s
White Balance automatic, manual, one touch, Specifying color temperature, indoor, outdoor
Digital Noise Reduction: 2D, 3D digital noise reduction
Backlight Compensation: Supported
Video S/N 55dB
Horizontal Angle of View: 60.7 ° ~ 3.36 °
Vertical Angle of View: 34.1 ° ~ 1.89 °
Horizontal Rotation Range: ±170°
Vertical Rotation Range: -30° ~ +90°
Pan Speed Range: 1.7 ° ~ 100°/s
Tilt Speed Range: 1.7 ° ~ 69.9 °/s
H & V Flip: Supported
Image Freeze: Supported
Number of Preset: 255
Preset Accuracy: 0.1 °
Digital audio pickup: Built-in dual microphone array, 100Hz to 16KHz frequency response
Analog audio input: Supported 3.5 mm Line-In
Digital audio output: Supported USB, LAN, SDI, etc, adio output
Analog audio output: Supported 3.5 mm Line-Out
Operate System:
YUY2: MAX 1080P@30fps H. 264
AVC: MAX 2160P@30fps H. 265
HEVC: MAX 2160P@30fps MJPEG: MAX 2160P@30fps
macOS 10.10 and up
Google Chromebook Version 29.0. 1547.70 and up
Linux (only forUVC
Hardware Requirement
2.4 GHz Intel Core 2 Duo processor and up
2 GB internal storage and up
USB 3.0 interface
Color System / Compression YUY2/MJPEG/H. 264
Video FormatSupported video format of multi frame rate and resolution ratio, up to 1080P60 YUY2 output.
USB Video Communication ProtocolUVC 1.1 or UVC 1.5
Audio on USB: 32K sampling frequency, supported UAC 3.0
UVC PTZ: Supported
Video Compression: H. 264
