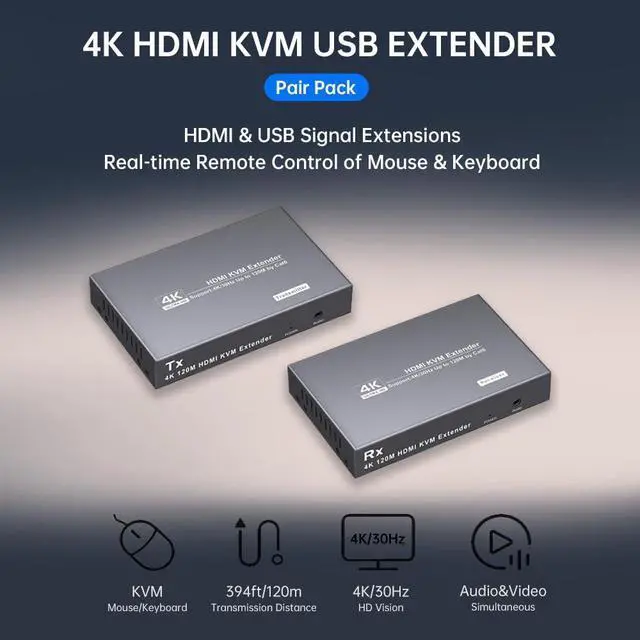

RYXN HDMI KVM USB Extender Over Cat6 Transmits 4K@30Hz Up to 394ft/120m, with 2 USB Ports Supports Mouse and Keyboard Remote Control, Both Ends Feature Audio Extractor Function
- 4K@30Hz, 394ft/120mHDMI KVM Extender transmits 4K@30Hz HDMI 1.4 signals and USB 1.1 signals from a computer host or laptop to a distance of 394ft via a single Cat6 cable. It is suitable for remotely controlling computers, NVR, monitors, and other devices. Cat6 cable must be used. 4K@60Hz is not supported.

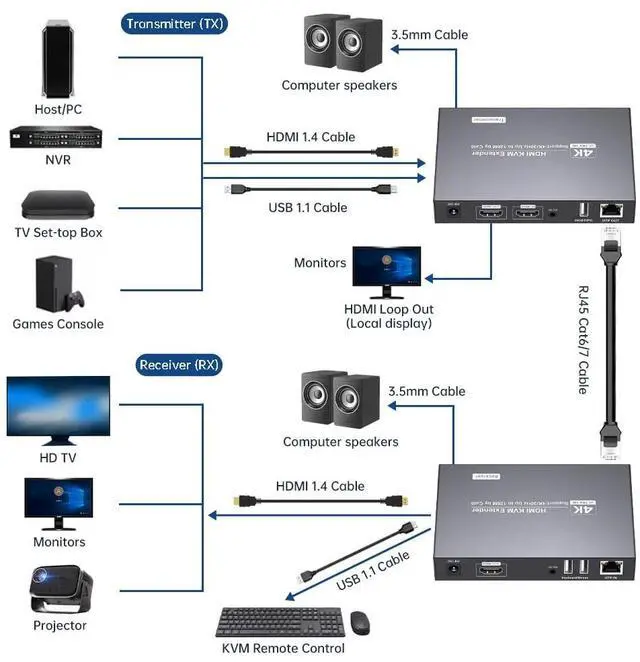

- HDMI Local loopout Function This HDMI KVM expander provides HDMI local loopout function at the transmitter (TX). That is, an HDMI port is left at the transmitter end, which can be directly connected to the display to achieve local video playback in real time. See an image of your transmitted remote HDMI input signal in real time. The resolution must be consistent with that of the receiver. This function is mainly used for home security monitoring, remote video control and other application scenarios.
- Support Mouse & Keyboard ControlThe transmitter's USB connects to the PC host, and the receiver has 2 USB1.1 ports, transmitting keyboard and mouse signals through t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI KVM USB Extender Over Cat6 394ft/120m for 4K@30Hz
This HDMI KVM USB Extender supports a maximum resolution of 4K@30Hz, not support 4K@60Hz. The resolution is downward compatible with 1080P. Please use Cat6 cables, as using Cat5e cables may affect transmission quality. To ensure transmission stability, dual power supply is adopted.
1. Supports HDMI signal and USB signal transmission up to 394ft/120m through Cat6 cable.
2. Transmits 4K@30Hz HDMI signal and USB 1.1 signal via cable. It enables the operation of remote control of mouse and keyboard.
3. It has two 3.5 mm audio output ports, with audio extractor function, and the transmitter and receiver can be connected to external 3.5 mm audio equipment.
Name: HDMI KVM USB Extender Over Cat6
Working voltage: 5~12V/1A

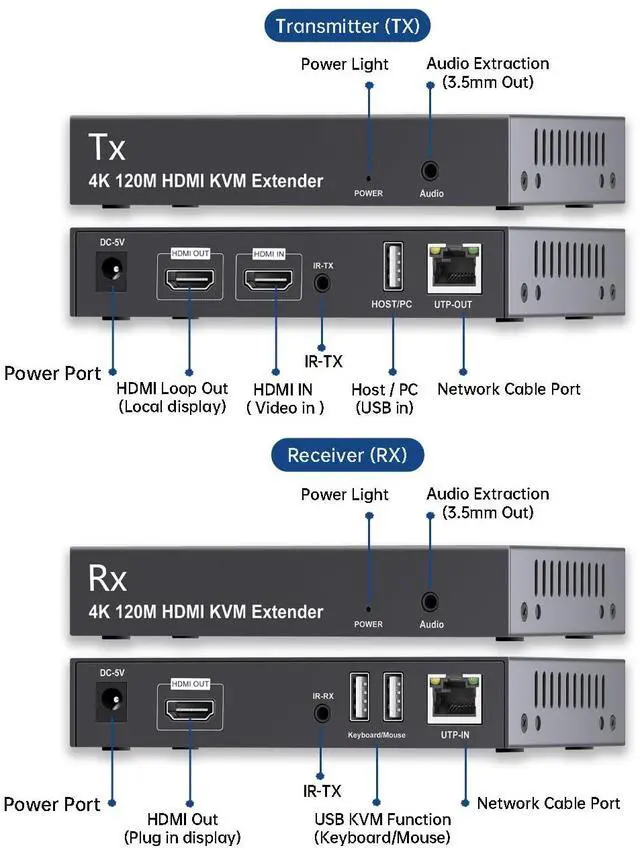

Interface: HDMI A-type female port / RJ45 network port
HDMI signal: HDMI 1.4
Ethernet cable: Cat6/Cat7
Transmission distance: Cat6~7/120m
Resolution: 4K@30Hz
Material: Iron Shell
Size: 5.3 in * 3.3 in * 0.94 in
Accessories: 2×HDMI KVM Extender + 2×5V/1A Power Adapter + 1×USB Cable + 1×Product manual
This HDMI KVM USB Extender supports a maximum resolution of 4K@30Hz, not support 4K@60Hz. The resolution is downward compatible with 1080P. Please use Cat6 cables, as using Cat5e cables may affect transmission quality. To ensure transmission stability, dual power supply is adopted.
1. Supports HDMI signal and USB signal transmission up to 394ft/120m through Cat6 cable.
2. Transmits 4K@30Hz HDMI signal and USB 1.1 signal via cable. It enables the operation of remote control of mouse and keyboard.
3. It has two 3.5 mm audio output ports, with audio extractor function, and the transmitter and receiver can be connected to external 3.5 mm audio equipment.
Specifications
:Name: HDMI KVM USB Extender Over Cat6
Working voltage: 5~12V/1A
Interface: HDMI A-type female port / RJ45 network port
HDMI signal: HDMI 1.4
Ethernet cable: Cat6/Cat7
Transmission distance: Cat6~7/120m
Resolution: 4K@30Hz
Material: Iron Shell
Size: 5.3 in * 3.3 in * 0.94 in
Accessories: 2×HDMI KVM Extender + 2×5V/1A Power Adapter + 1×USB Cable + 1×Product manual
