$44.99
Most customers receive within 5-9 days.
Meet Your Seller

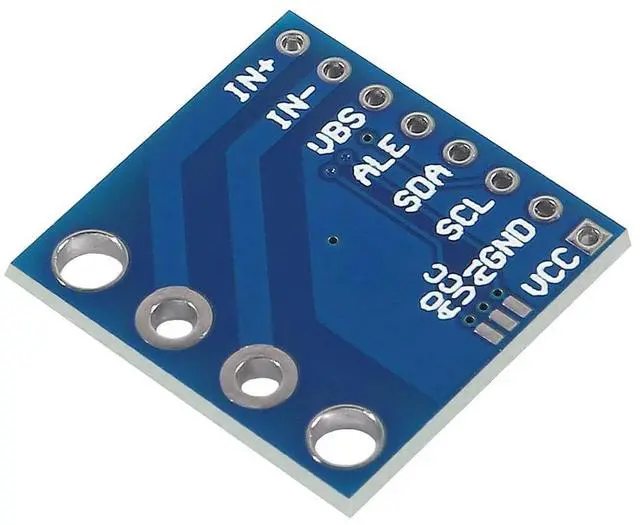

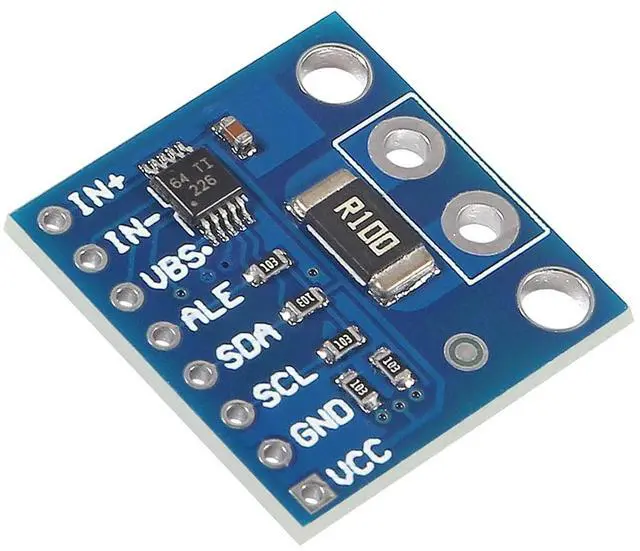

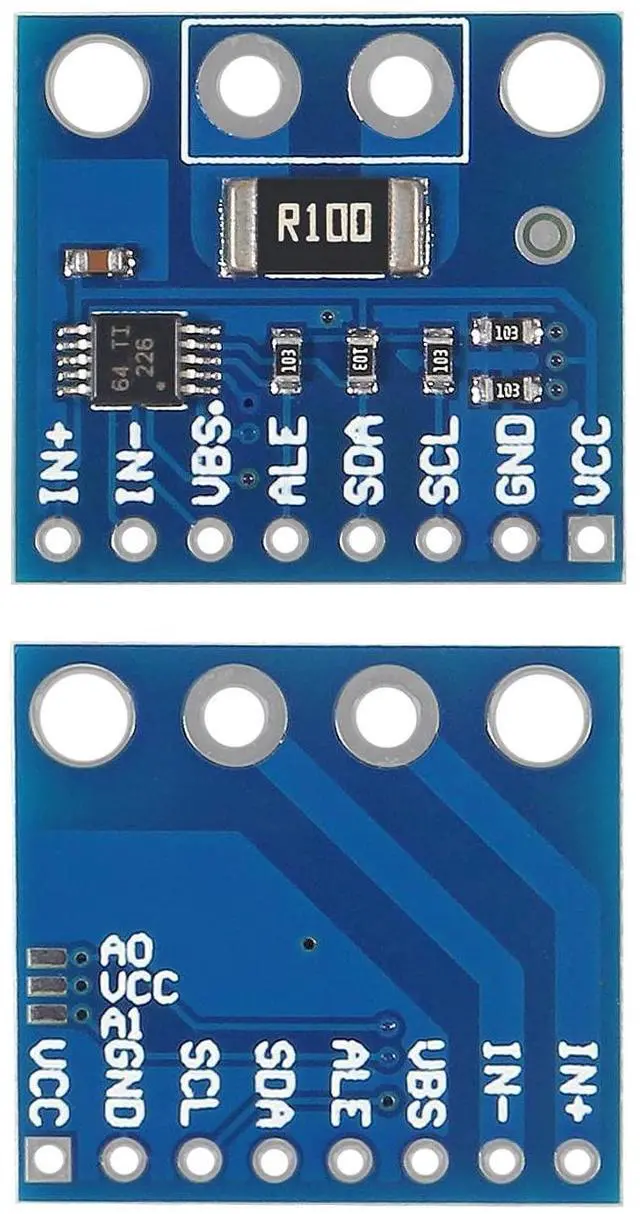

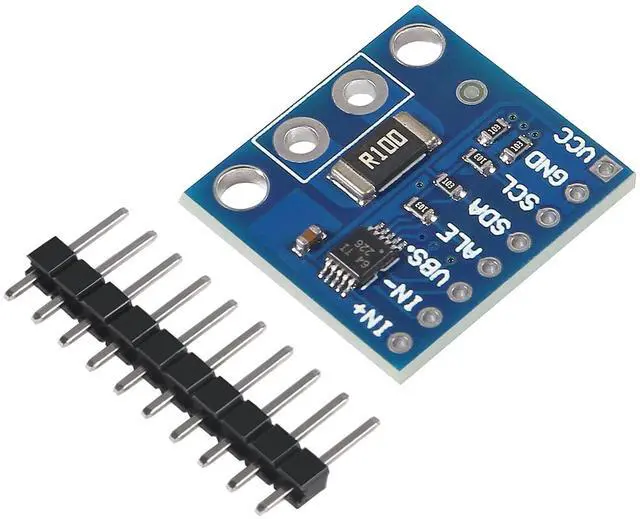

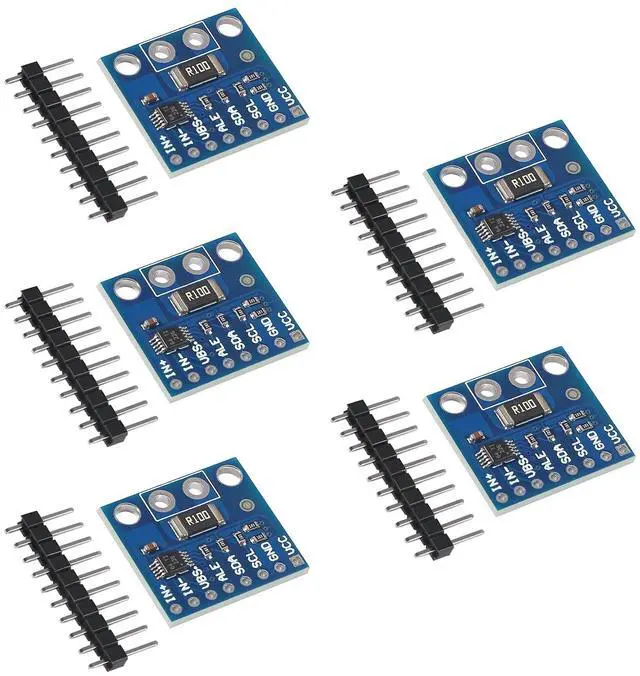

AITRIP 5PCS INA226 Bi-Directional Voltage Current Power Alert Monitor Module I2C IIC 36V for Arduino
- The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times, and averaging, combined with aninternal multiplier, enable direct readouts of current inamperes and power in watts.
- High-Side or Low-Side Sensing
- Senses Bus Voltages From 0 V to 36 V
- The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330A of supply current. The device is specified over the operating temperature range between 40C and125C and features up to 16 programmable addresses on the I2C-compatible interface
- Applications : Servers Telecom Equipment Computing Power Management Battery Chargers Power Supplies Test Equipme
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value, conversion times, and averaging, combined with aninternal multiplier, enable direct readouts of current inamperes and power in watts. ^^ High-Side or Low-Side Sensing ^^ Senses Bus Voltages From 0 V to 36 V ^^ The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7 -V to 5.5 -V supply, drawing a typical of 330A of supply current.
The device is specified over the operating temperature range between 40C and125C and features up to 16 programmable addresses on the I2C-compatible interface ^^
Applications: Servers Telecom Equipment Computing Power Management Battery Chargers Power Supplies Test Equipme
The device is specified over the operating temperature range between 40C and125C and features up to 16 programmable addresses on the I2C-compatible interface ^^
Applications: Servers Telecom Equipment Computing Power Management Battery Chargers Power Supplies Test Equipme
