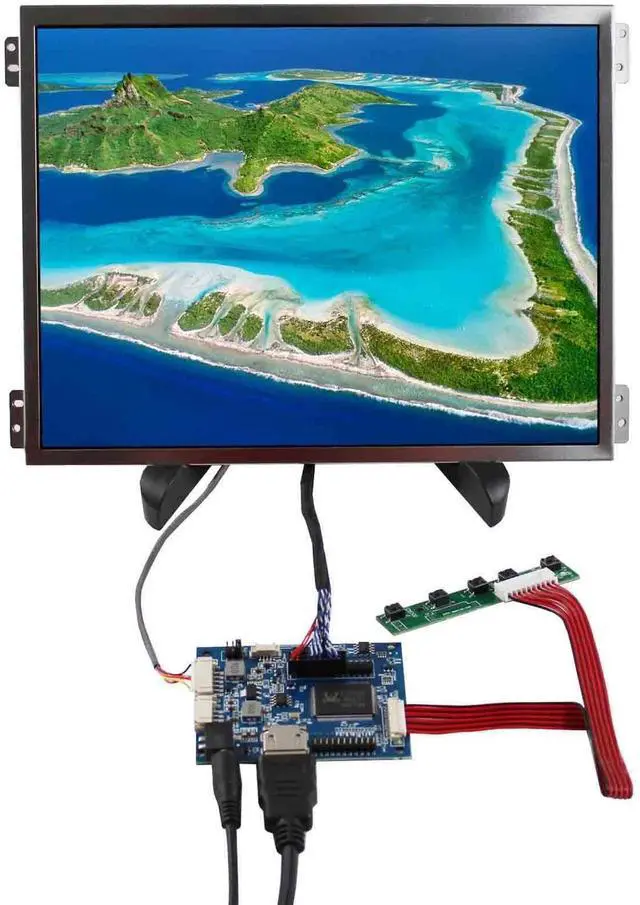

VSDISPLAY 10.4 Inch IPS 1024x768 LCD Screen 600Nits Display Panel with Audio LCD Controller Board VS-TY2660H-V661
- Specification10.4 Inch IPS LCD display screen with audio LCD controller board;brightness 600 cd/m (Typ.),contrast Ratio 1000:1 (Typ.) (TM);Aspect Ratio 4:3
- Size of LCDOutline size:227.00 175.87 (HVD)mm;display area:210.43 157.824 (HV)mm
- FeatureAspect ratio 4:3 LCD screen 10.4 inch comes with mounting holes,easy to install
- Application WidelyAs a replacement lcd screen for G104XVN01.0,G104X1-L03,also fit for DIY game cabinet,flight simulator monitor,extra display panel from pc/laptop
- Packing list1 Audio LCD Controller Board VS-TY2660H-V661;110.4inch VS104T-004 1024X768 LCD Screen;1 LVDS Cable;1 Backlight Cable;1 Keyboard With Cable(Help to notice that there is no power supply in the package,please prepare by yourself)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

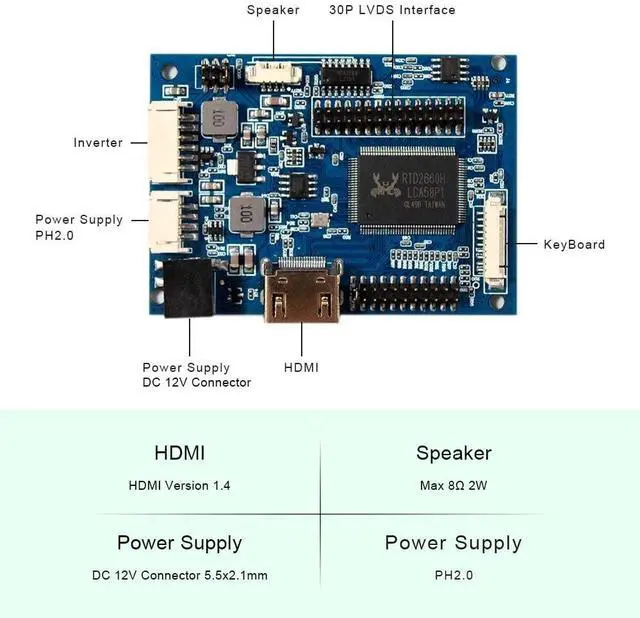

LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 5A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: Audio
Input: Audio
Output: Speaker (4Pin

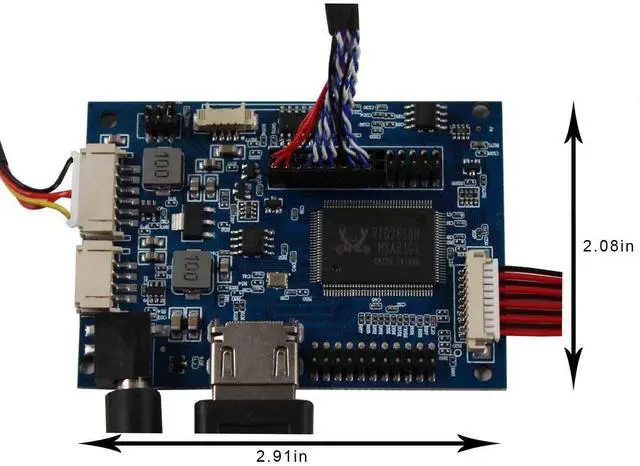

PH 1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 10.4" VS104T-004A 1024X768
LCD Screen: Replacement screen for G104XVN 01.0, G104X1-L03Display Mode IPS Pro, Normally Black, TransmissiveResolution 1024768Outline Size 227.00 175.87 (HVD) mmDisplay Area 210.43 157.824 (HV) mmBrightness 600 cd/m (Typ. )Contrast Ratio 1000:1 (Typ. ) (TM) Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left/Right/Up/Down]Signal Interface LVDS (1 ch, 8-bit), Connector, 30 pinsBacklight WLED
Input Voltage 3.3V (Typ.

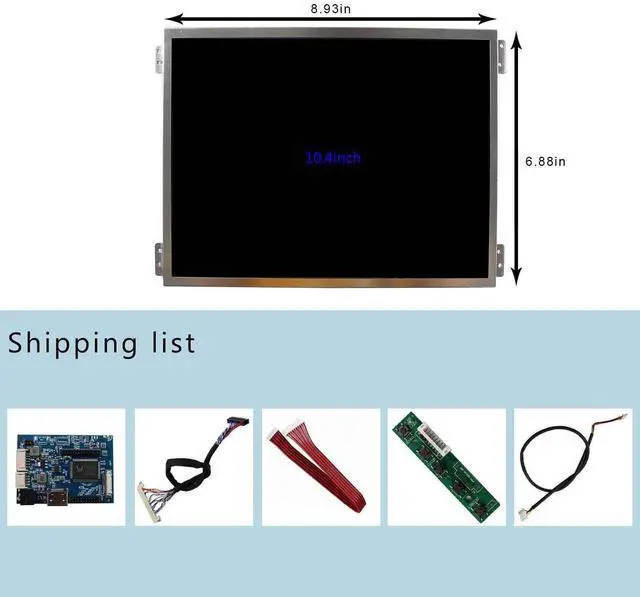

)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V 661110.4 inch VS104T-004 1024X768 LCD Screen1 LVDS Cable1 Backlight Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 5A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: Audio
Input: Audio
Output: Speaker (4Pin
PH 1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 10.4" VS104T-004A 1024X768
LCD Screen: Replacement screen for G104XVN 01.0, G104X1-L03Display Mode IPS Pro, Normally Black, TransmissiveResolution 1024768Outline Size 227.00 175.87 (HVD) mmDisplay Area 210.43 157.824 (HV) mmBrightness 600 cd/m (Typ. )Contrast Ratio 1000:1 (Typ. ) (TM) Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left/Right/Up/Down]Signal Interface LVDS (1 ch, 8-bit), Connector, 30 pinsBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V 661110.4 inch VS104T-004 1024X768 LCD Screen1 LVDS Cable1 Backlight Cable1 Keyboard With Cable
