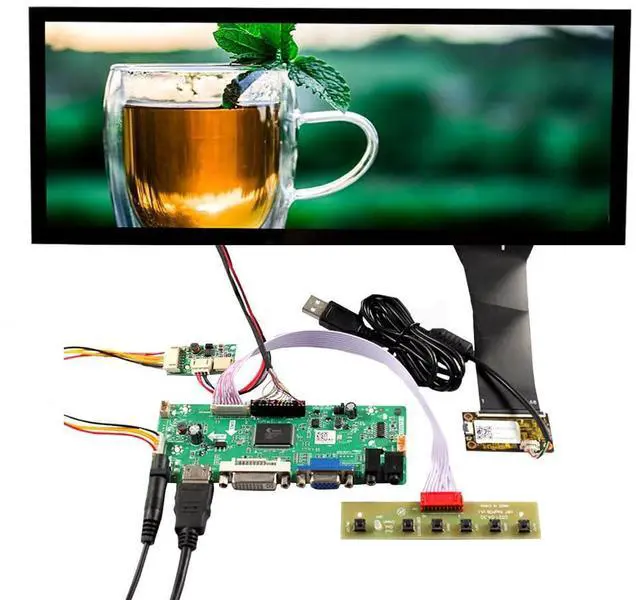

FanyiTek 10.3 inch 1920x720 800nit IPS LCD Touchscreen,Capacitive Touch Sensor Panel Stretched Bar Display and VGA DVI Audio LVDs Controller Board 50 pins
- 10.3" Bar IPS LCD screen720P Full resolution ,800nit high brightness, display area 243.691.4 (HVmm), Contrast Ratio 1000:1 ,with full viewing angle ,wled backlight ,lvds signal interface.
- LCD Driver Board Video input: VGA DVI,Audio Output: Speaker Connector (8ohm 2W 4Pin PH2.0 Speaker).Please use in insulated environment.
- Input Power Supply12V DC 2A, port size :5.5x2.1mm, (Pls prepare the power adapter seperately).
- Capacitive Touch SensorSupport 10 points multi-touch ,No need driver installed ,directly connecting USB Control cables well,the touch function can be worked.

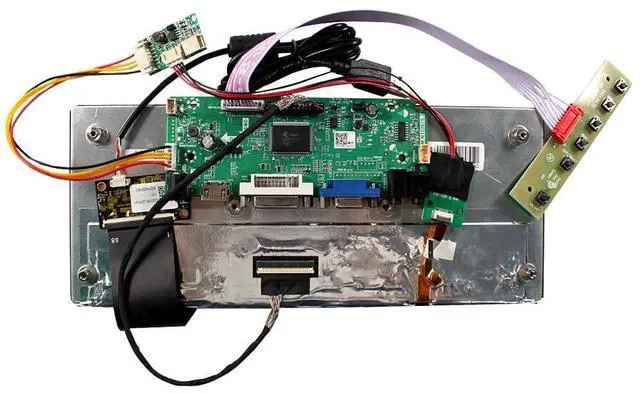

- Plug and playConnecting cables and ports according to link picture details ,Power on,enter signal cable,Keyboard LED light become green,with correct resolution 1920x720,the screen can work well.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: Input
Power Adapter: 12Vdc More than 3A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Output: Speaker

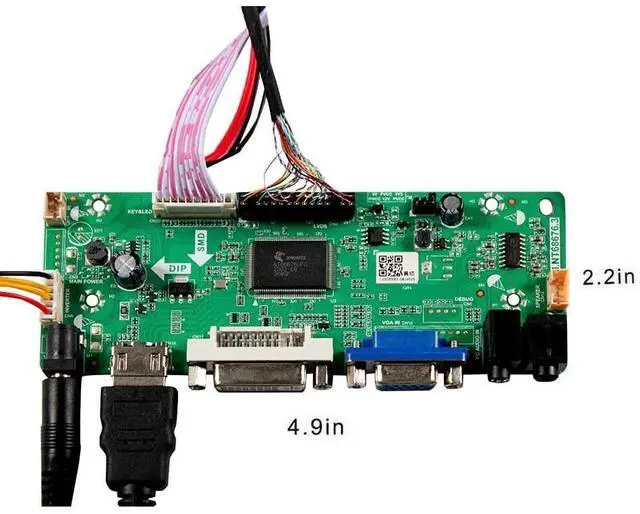

ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x 53mm x 17mm 10.3" VS103IA 1920X720 Touch LCD ScreenDisplay New Mode IPS Pro, Normally Black, TransmissiveResolution 1920 (RGB) 720Outline Size 259.84109. 316 (HVD) mmDisplay Area 243.691. 4 (HV) mmBrightness 800 cd/m (Typ. )Contrast Ratio 1000:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (2 ch, 8-bit), Connector, 50pinsBacklight 9S4P WLED
Input Voltage 3.3V (Typ.

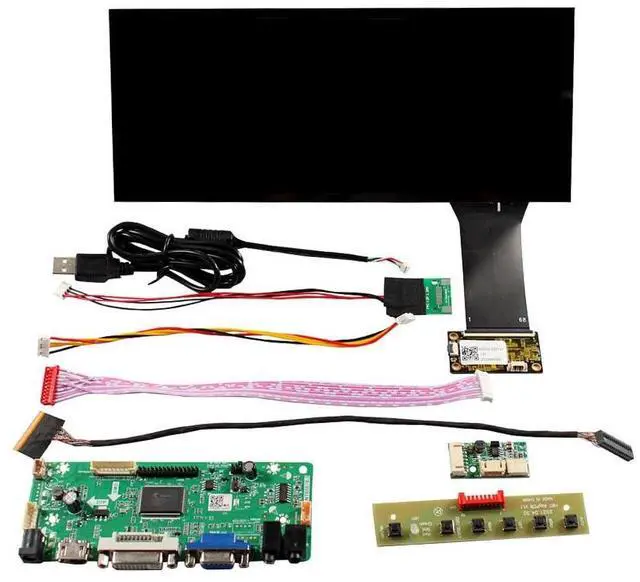

)Packing list: 1 DVI VGA LCD Controller Board M. NT 68676110.3" VS103IA 1920X720 LCD With Capacitive Touch Panel1 Converter Board1 LVDs Signal Cable1 Keyboard With Cable
Power Adapter: 12Vdc More than 3A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Output: Speaker
ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x 53mm x 17mm 10.3" VS103IA 1920X720 Touch LCD ScreenDisplay New Mode IPS Pro, Normally Black, TransmissiveResolution 1920 (RGB) 720Outline Size 259.84109. 316 (HVD) mmDisplay Area 243.691. 4 (HV) mmBrightness 800 cd/m (Typ. )Contrast Ratio 1000:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (2 ch, 8-bit), Connector, 50pinsBacklight 9S4P WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 DVI VGA LCD Controller Board M. NT 68676110.3" VS103IA 1920X720 LCD With Capacitive Touch Panel1 Converter Board1 LVDs Signal Cable1 Keyboard With Cable
