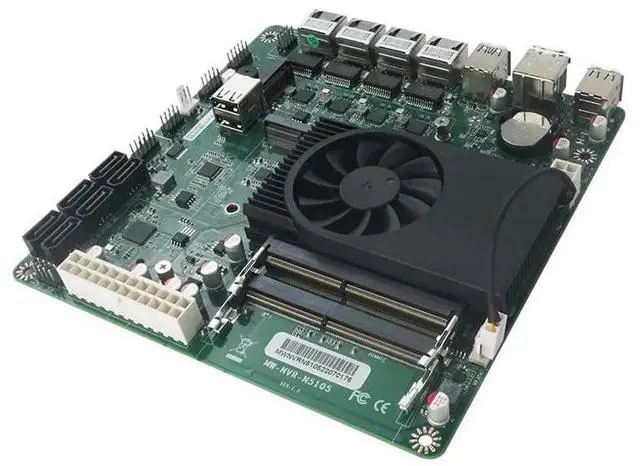

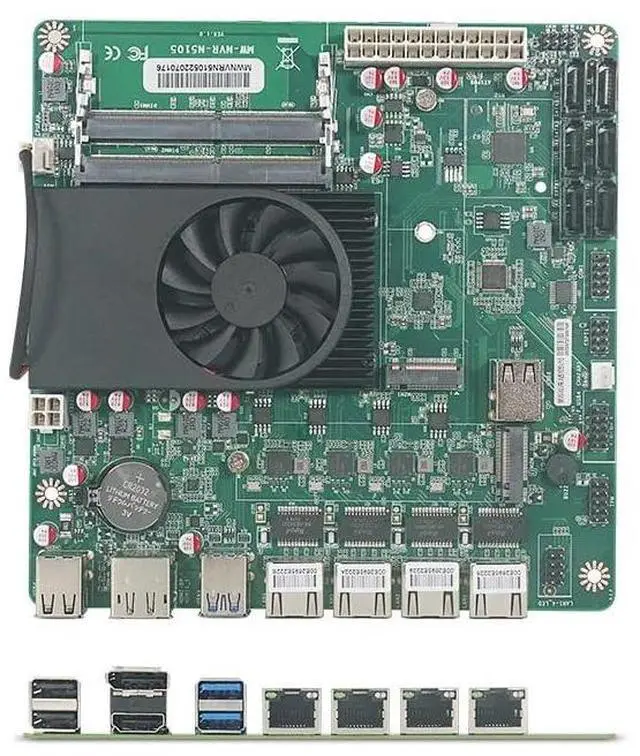

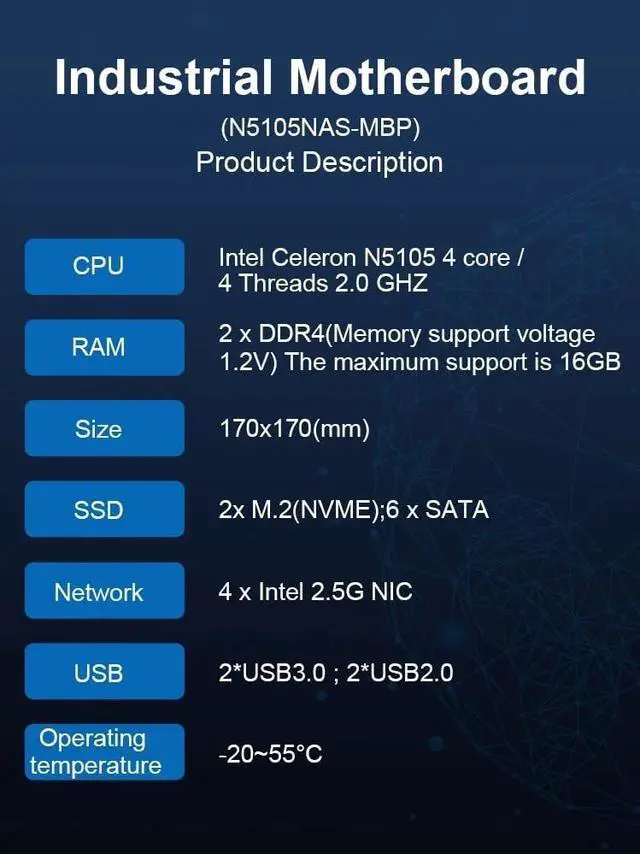

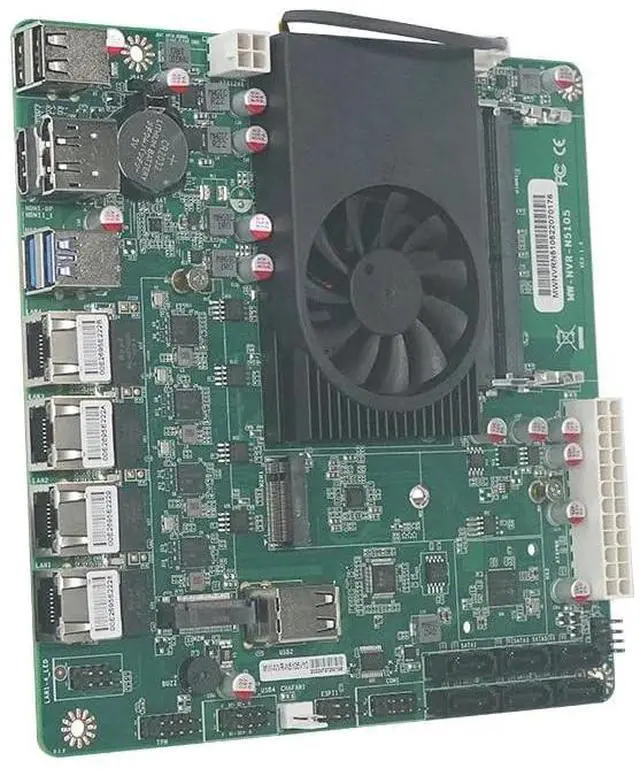

HKUXZR Celeron N5105 Industrial Motherboard NAS 4 Cores 4 Threads Low Power Processor 4x2.5G i226 Network M.2 Slot 6xSATA DP HDMI 2.0
- Low power processorIntel Celeron Processor N5105: 4 Cores 4 Threads, 4M Cache, up to 2.90 GHz, with Intel UHD Graphics.
- High speed network cardThis NAS motherboard has 4* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- Industrial NAS Motherboard Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--12* USB3.0, 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
- Storage and Memory2* DDR4 slots, compatible with 2133/2400/2933MHz (non-ECC), RAM supports up to 32GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz.
- NOTE: The motherboard requires both 24PIN + 4PIN power conn
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Low power processorIntel Celeron Processor N 5105: 4 Cores 4 Threads, 4M Cache, up to 2.90 GHz, with Intel UHD Graphics. ^^ High speed network cardThis NAS motherboard has 4* i226 2.5G bE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use. ^^ Industrial NAS
Motherboard Mini-1TX size: 17.0 cm x 17.0 cm, High-density moisture-proof fiber circuit board Ultrafast Connectivity--12* USB 3.0, 2* USB 2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI 2.1 and 1* DP 1.4 b to support dual 4K@60Hz display. ^^ Storage and Memory2* DDR4 slots, compatible with 2133/2400/2933MHz (non-ECC), RAM supports up to 32GB, 6* SATA 3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M. 2 NVMe 2280 PCIE 3.0 x1, stable and ultra-fast transfer speed.
Dual 4K Display: This mini-ITX board has HDMI 2.0 and DP 1.4 ports at 4K@60Hz.
^^ NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up
Motherboard Mini-1TX size: 17.0 cm x 17.0 cm, High-density moisture-proof fiber circuit board Ultrafast Connectivity--12* USB 3.0, 2* USB 2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI 2.1 and 1* DP 1.4 b to support dual 4K@60Hz display. ^^ Storage and Memory2* DDR4 slots, compatible with 2133/2400/2933MHz (non-ECC), RAM supports up to 32GB, 6* SATA 3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M. 2 NVMe 2280 PCIE 3.0 x1, stable and ultra-fast transfer speed.
Dual 4K Display: This mini-ITX board has HDMI 2.0 and DP 1.4 ports at 4K@60Hz.
^^ NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up
