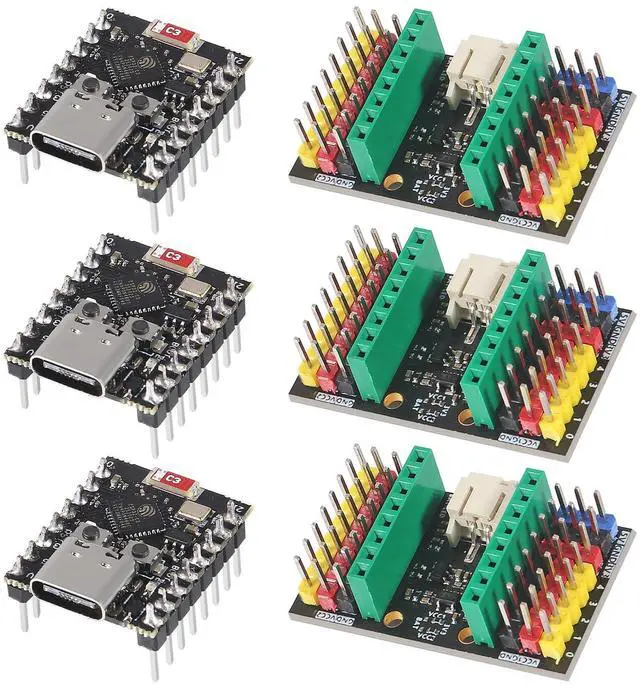

ESP32 ESP32-C3 Development Board ESP32 C3 Mini WiFi Bluetooth 160MHz Running Frequency 2.4GHz Wi-Fi & Bluetooth 5.0 ESP32 C3 Super mini for Arduino (3 Sets Expansion Board)
- ESP32-C3 is equipped with a single-core 32-bit RISC-V processor, with a four-level pipeline architecture, with a main frequency of up to 160 MHz. ESP32-C3 has 400 KB of built-in SRAM and 384 KB of ROM storage space. ESP32-C3 is the industry-leading Wi-Fi+Bluetooth LE integrated solution

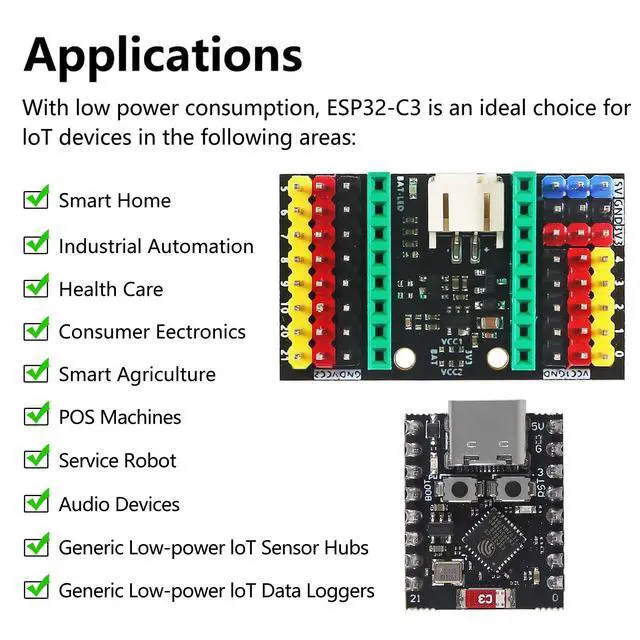

- ESP32 C3 Mini is positioned as a high-performance, low-power, cost-effective iot mini development board for low-power iot applications and wireless wearable applications.
- EPS32-C3 is a cost-effective and low-power dual-mode Wi-Fi and Bluetooth chip. The ESP32-C3 uses a RISC-V processor, a single-core processor with a main frequency of 150 MHz, which integrates Wi-Fi 4 and Bluetooth 5.0 wireless communication.
- ESP32-C3 is a system-level chip (SoC) MCU with very low power consumption and high integration, which integrates 2.4Ghz Wi-Fi and Bluetooth (Bluttooth) low-end dual-mode wireless communication. consumption.
- If external power supply is required, just connect the + level of the external p
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32C3SuperMini is an IoT mini development board based on the ESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (floating point unit) and can perform 32-bit single precision operations with powerful computing power. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocol. This board comes with an external antenna to enhance the signal strength of wireless applications. It also has a compact and exquisite appearance combined with a single-sided surface mount design. It is equipped with rich interfaces, including 11 digital I/Os that can be used as PWM pins and 4 analog I/Os that can be used as ADC pins.
It supports four serial interfaces: UART, I2C, and SPI. There is also a small reset button and a boot loader mode button on the board. Based on the above characteristics, ESP32C3SuperMini is positioned as a high-performance, low-power, and cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications.
Product parametersPowerful CPU: ESP32-C3, 32-bit RISC-V single core processor, running at frequencies up to 160
MHzWiFi: 802.11 b/g/n protocol, 2.4GH z, supports Station mode, SoftAP mode, SoftAP+Station mode, hybrid
modeBluetooth: Bluetooth 5.0U ltra low power consumption: Deep sleep power consumption is about 43%
ARich board resources: 400KB SRAM, 384KB ROM with built-in 4Mflash.
Chip model: ESP32C3FN4Ultra

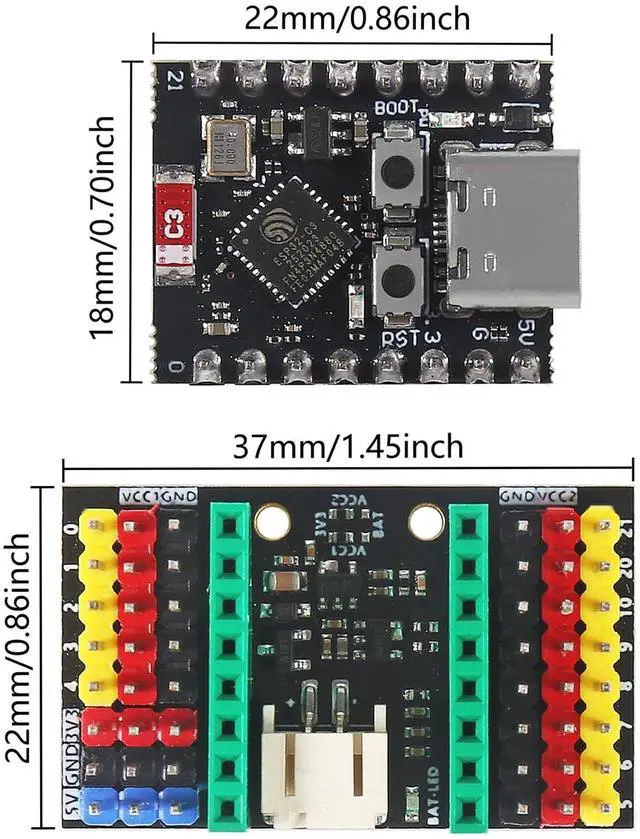

small size: as small as the thumb ( 22.52 x18mm), classic shape suitable for wearable devices and small projectsReliable security features: Encryption hardware accelerator that supports AES-128/256, hashing, RSA, HMAC, digital signatures, and
secure bootRich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC
Single sided components and surface mount designOn board
LED blue light: GPIO8 pinPackage5 * ESP32-C3 Development Board ESP32 Mini WiFi Bluetooth
It supports four serial interfaces: UART, I2C, and SPI. There is also a small reset button and a boot loader mode button on the board. Based on the above characteristics, ESP32C3SuperMini is positioned as a high-performance, low-power, and cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications.
Product parametersPowerful CPU: ESP32-C3, 32-bit RISC-V single core processor, running at frequencies up to 160
MHzWiFi: 802.11 b/g/n protocol, 2.4GH z, supports Station mode, SoftAP mode, SoftAP+Station mode, hybrid
modeBluetooth: Bluetooth 5.0U ltra low power consumption: Deep sleep power consumption is about 43%
ARich board resources: 400KB SRAM, 384KB ROM with built-in 4Mflash.
Chip model: ESP32C3FN4Ultra
small size: as small as the thumb ( 22.52 x18mm), classic shape suitable for wearable devices and small projectsReliable security features: Encryption hardware accelerator that supports AES-128/256, hashing, RSA, HMAC, digital signatures, and
secure bootRich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC
Single sided components and surface mount designOn board
LED blue light: GPIO8 pinPackage5 * ESP32-C3 Development Board ESP32 Mini WiFi Bluetooth
