VSDISPLAY DVI VGA Audio LCD Controller Board Fit for 17 inch 4:3 1280X960 DV170YGZ-N10 DV170YGM-N10
- Compatible with:Fit for LCD Screens which have 4:3 1280X960 DV170YGM N10 / DV170YGZ N10 LCD
- Feature:This board (resolution 1280x960) can solve the cut off screen problem on the cabinets immediately. But help to noticed that pls verify that you have a LCD Screen. Screen part number will match DV170YGZ-N10 or DV170YGM-N10. Will not work with any other screen
- Video Input:DVI VGA; Audio Output: Speaker Connector
- Come In Standby Model When Not Input Signal. Standby Model <1W
- Recommend Power Adapter Spec: Input Power Adapter: 12V DC, 2A or More than 2A
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Audio Lcd Controller Board Fit To LCD screens TMNT, Marvel, NBA JAM or any game motior that uses DV170YGZ-N10 screen. Also works with the Costco version of Mortal Kombat and with DV170YGZ-N10 SCREEN. 4:3 1280X960 LCD DV170YGM-N10/DV170YGZ-N10 with the resolution 1280x960 controller board, the screen picture will NOT cut off at the bottom.

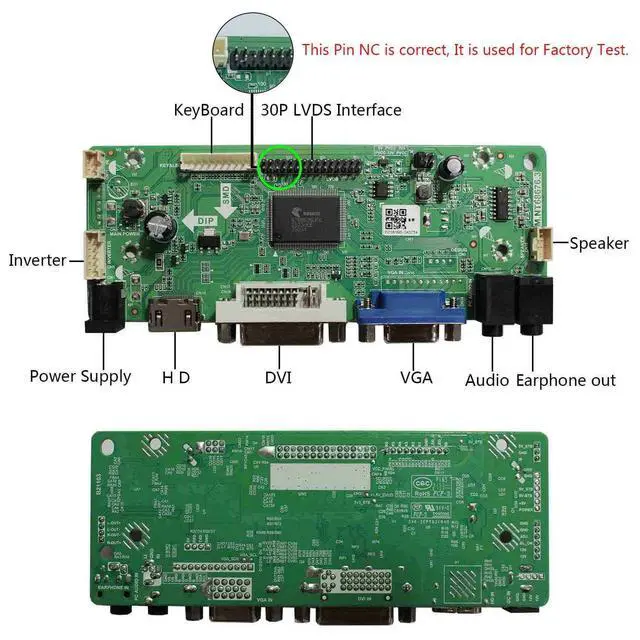

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 3A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Output: Speaker

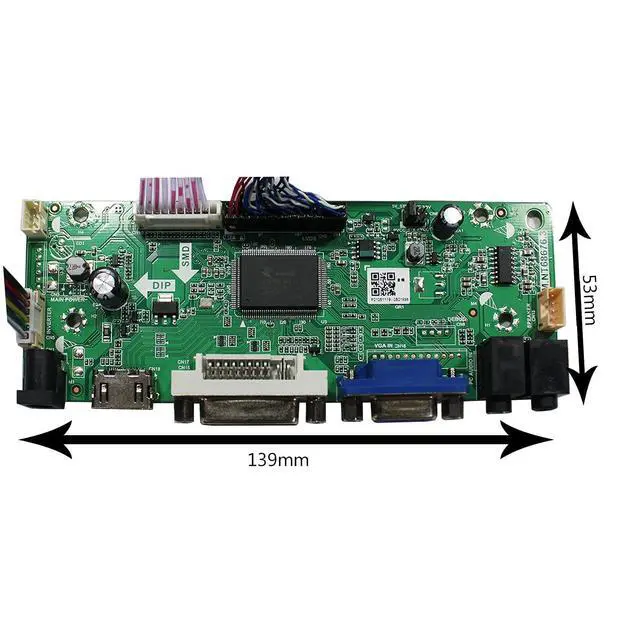

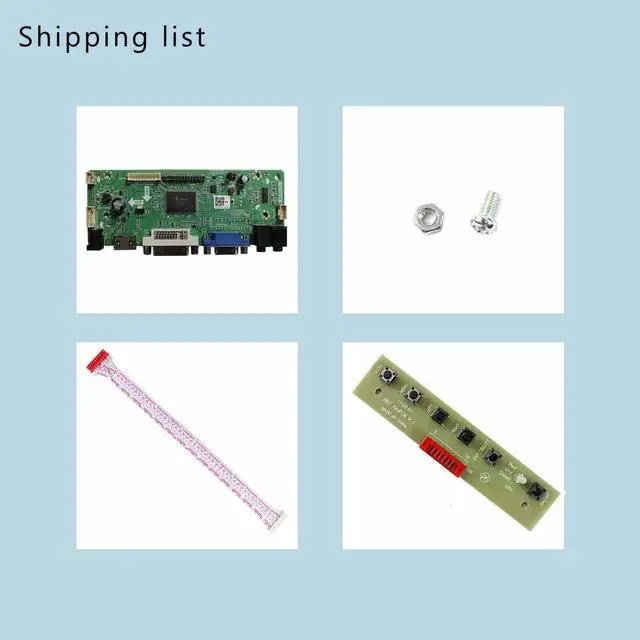

ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139 mm x 53 mm x 17 mmThe Controller Board Fit To DIY Kit17in DV170YGM-N10//DV170YGZ-N10Packing list: 1VGA DVI LCD Controller Board1 Screw And Nut For GND Connection1
Keyboard With CableNOTICE: Please verify that you have a LCD Screen. Screen part number will match DV170YGZ-N10 or DV170YGM-N10. Will not work with any other screen.
LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 3A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Output: Speaker
ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139 mm x 53 mm x 17 mmThe Controller Board Fit To DIY Kit17in DV170YGM-N10//DV170YGZ-N10Packing list: 1VGA DVI LCD Controller Board1 Screw And Nut For GND Connection1
Keyboard With CableNOTICE: Please verify that you have a LCD Screen. Screen part number will match DV170YGZ-N10 or DV170YGM-N10. Will not work with any other screen.
